Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

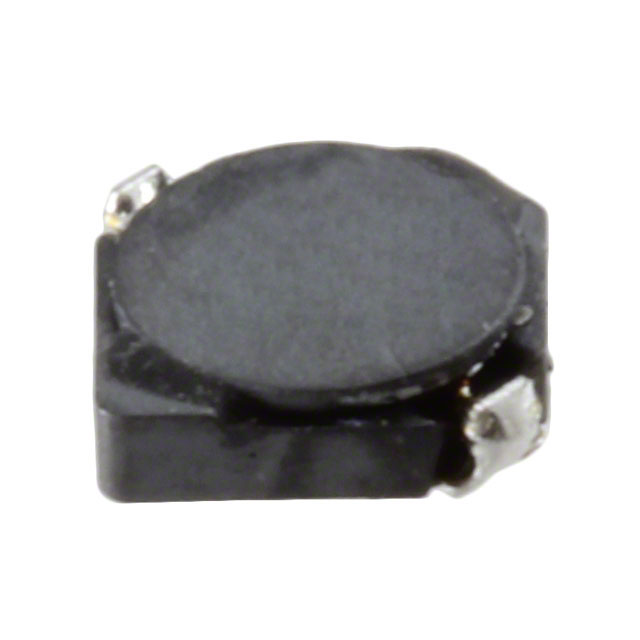

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D11
Part Status : Discontinued at
Type : -
Material - Core : -
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 1.38A
Current - Saturation : 400mA
Shielding : Shielded
DC Resistance (DCR) : 123 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
113 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D14/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±25%
Current Rating : 670mA
Current - Saturation : 1A
Shielding : Shielded
DC Resistance (DCR) : 440 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
2020 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D14/HP
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±25%
Current Rating : 1.04A
Current - Saturation : 1.45A
Shielding : Shielded
DC Resistance (DCR) : 214 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
458 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D14
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±25%
Current Rating : 690mA
Current - Saturation : 750mA
Shielding : Shielded
DC Resistance (DCR) : 262 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
957 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D14
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±25%
Current Rating : 1.75A
Current - Saturation : 1.6A
Shielding : Shielded
DC Resistance (DCR) : 69 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
2643 in stock

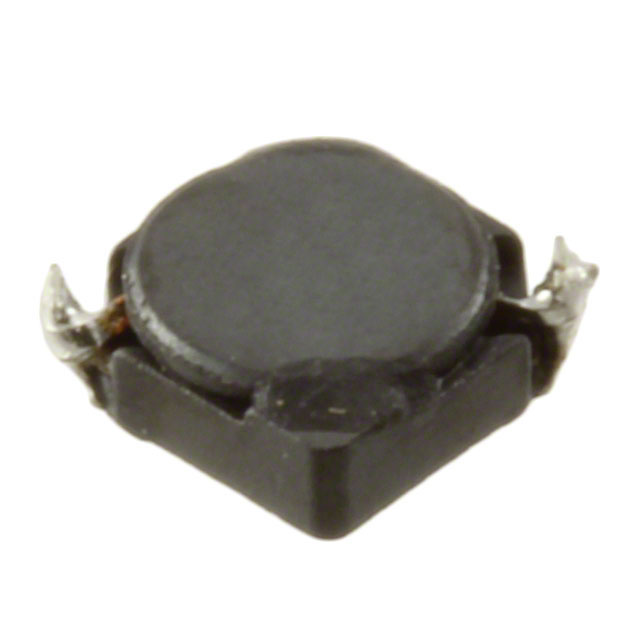

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D14
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±25%
Current Rating : 1.24A
Current - Saturation : 1.35A
Shielding : Shielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
326 in stock

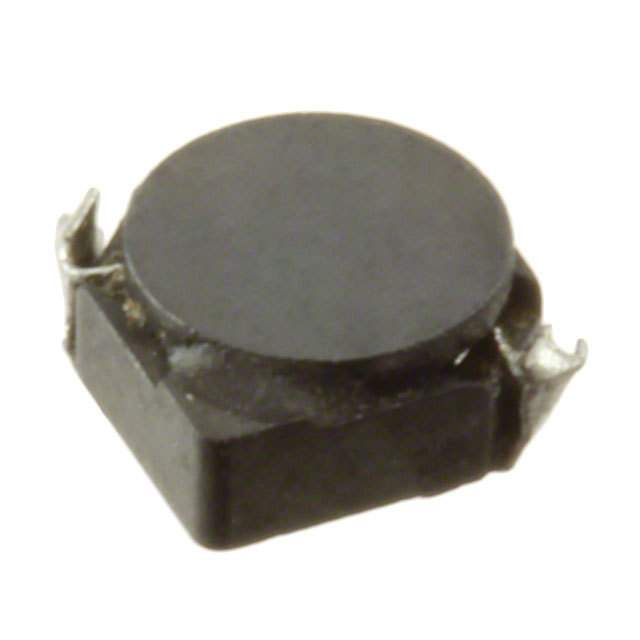

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D16/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : 840mA
Shielding : Shielded
DC Resistance (DCR) : 230 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
2025 in stock

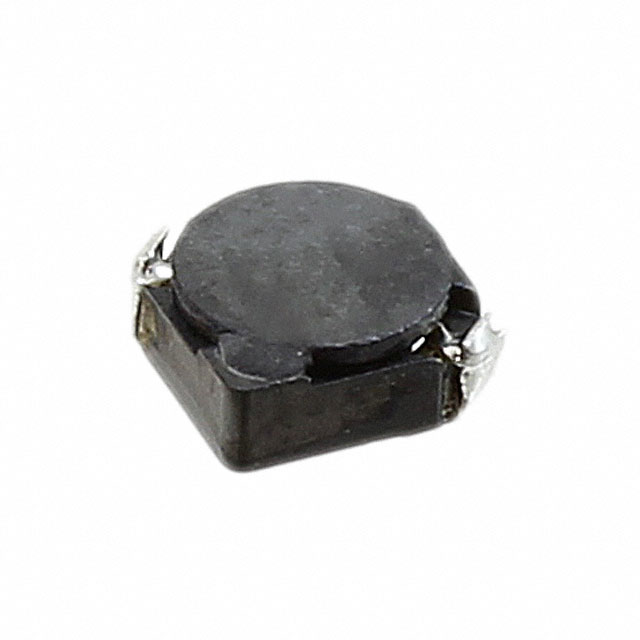

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D16/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 2.3A
Current - Saturation : 1.75A
Shielding : Shielded
DC Resistance (DCR) : 59 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
1845 in stock

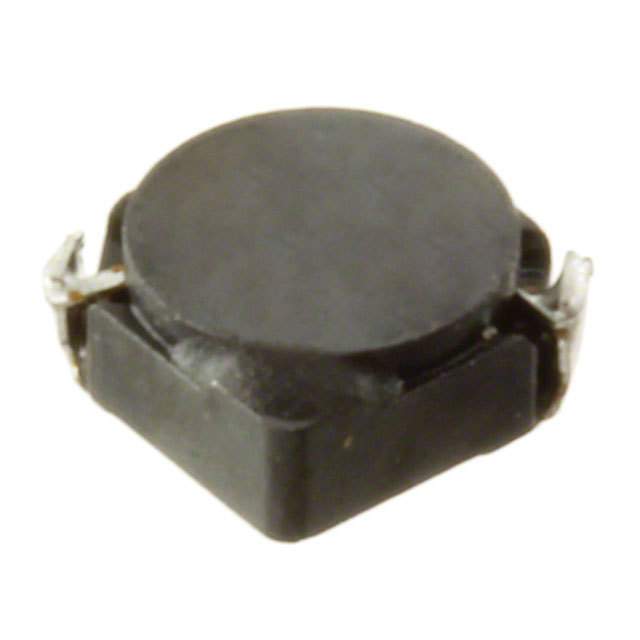

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D16/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 1.5A
Current - Saturation : 1.2A
Shielding : Shielded
DC Resistance (DCR) : 116 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
3570 in stock

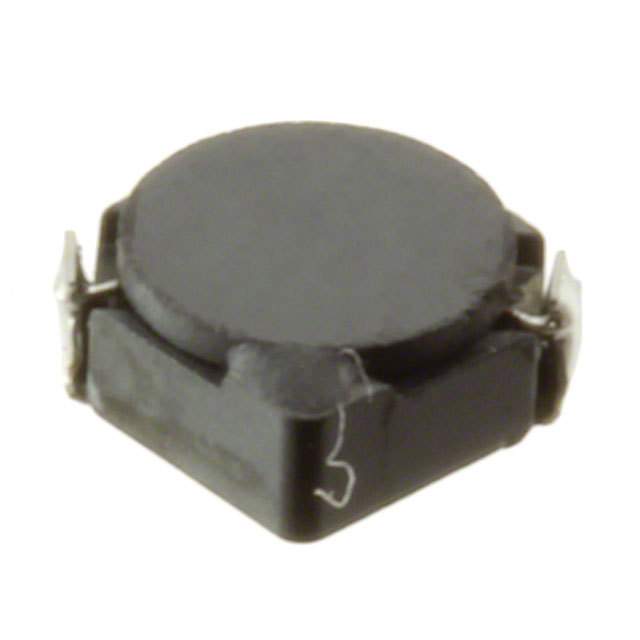

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D16
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 550mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 210 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
9109 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D16
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 450mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 295 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
1359 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D16
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 1.55A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 52 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
894 in stock
