Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

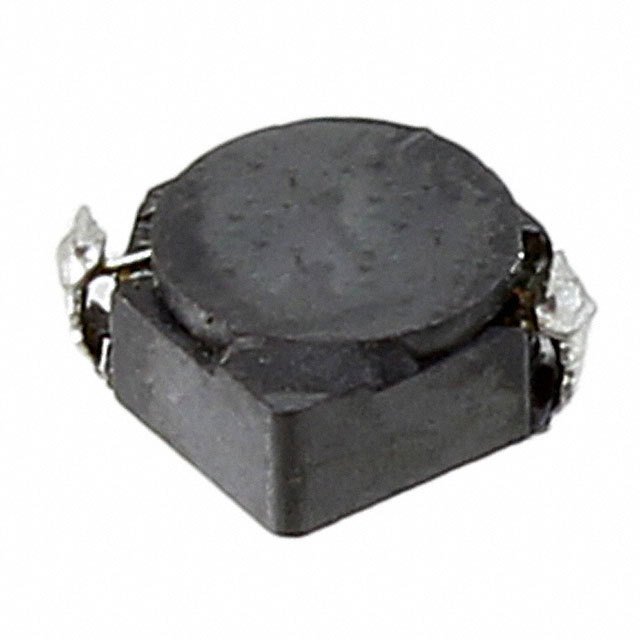

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D18
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±30%
Current Rating : 1.1A
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
369 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D23
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±25%
Current Rating : 3.1A
Current - Saturation : 2.8A
Shielding : Shielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D23
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±25%
Current Rating : 1.8A
Current - Saturation : 1.8A
Shielding : Shielded
DC Resistance (DCR) : 38.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
582 in stock

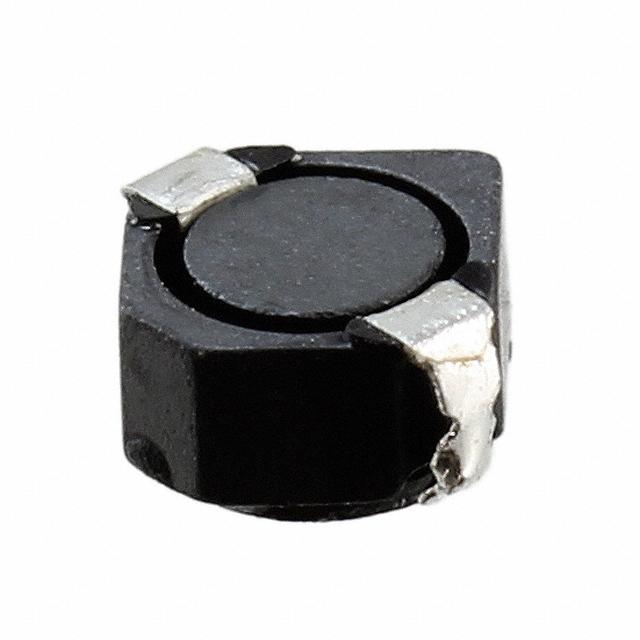

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D23
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±25%
Current Rating : 1.9A
Current - Saturation : 1.3A
Shielding : Shielded
DC Resistance (DCR) : 68.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28/LD
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±30%
Current Rating : 1.48A
Current - Saturation : 450mA
Shielding : Shielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
115 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 1.44A
Current - Saturation : 400mA
Shielding : Shielded
DC Resistance (DCR) : 115 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
349 in stock

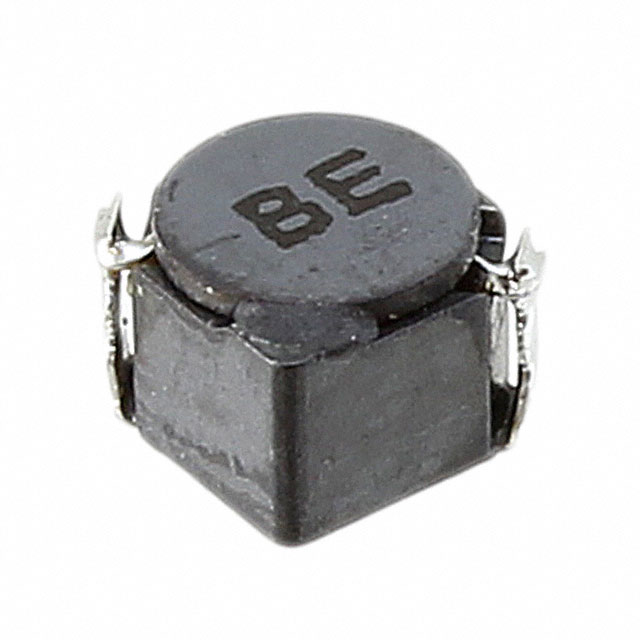

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±30%
Current Rating : 360mA
Current - Saturation : 116mA
Shielding : Shielded
DC Resistance (DCR) : 1.27 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
535 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±30%
Current Rating : 810mA
Current - Saturation : 230mA
Shielding : Shielded
DC Resistance (DCR) : 305 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
3705 in stock

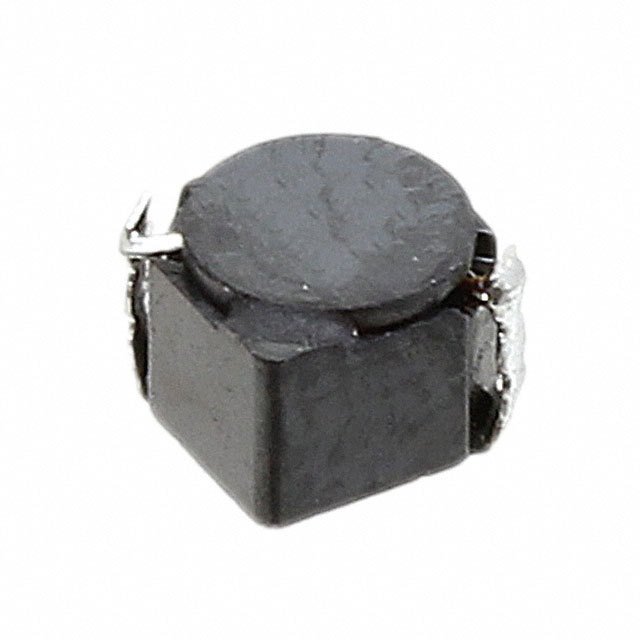

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 1.18A
Current - Saturation : 1.05A
Shielding : Shielded
DC Resistance (DCR) : 145 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
18079 in stock

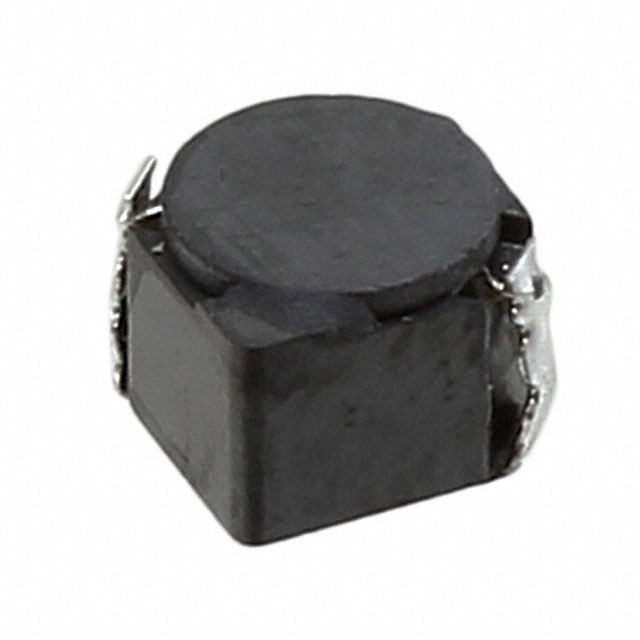

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 1.02A
Current - Saturation : 900mA
Shielding : Shielded
DC Resistance (DCR) : 213 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
18096 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±30%
Current Rating : 630mA
Current - Saturation : 580mA
Shielding : Shielded
DC Resistance (DCR) : 481 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
333 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 1.62A
Current - Saturation : 1.65A
Shielding : Shielded
DC Resistance (DCR) : 88.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
3380 in stock
