Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

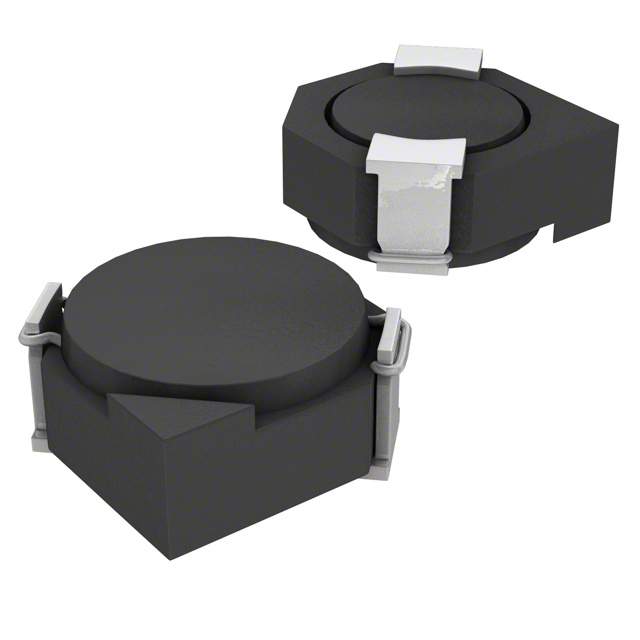

Series : CDRH2D18/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 1.9A
Current - Saturation : 1.6A
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
13231 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 1.55A
Current - Saturation : 1.45A
Shielding : Shielded
DC Resistance (DCR) : 86 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
286 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 1.2A
Current - Saturation : 1.2A
Shielding : Shielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.3µH
Tolerance : ±30%
Current Rating : 1.15A
Current - Saturation : 1.05A
Shielding : Shielded
DC Resistance (DCR) : 160 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
89 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/HP
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 200nH
Tolerance : ±35%
Current Rating : 4.7A
Current - Saturation : 5.35A
Shielding : Shielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
370 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

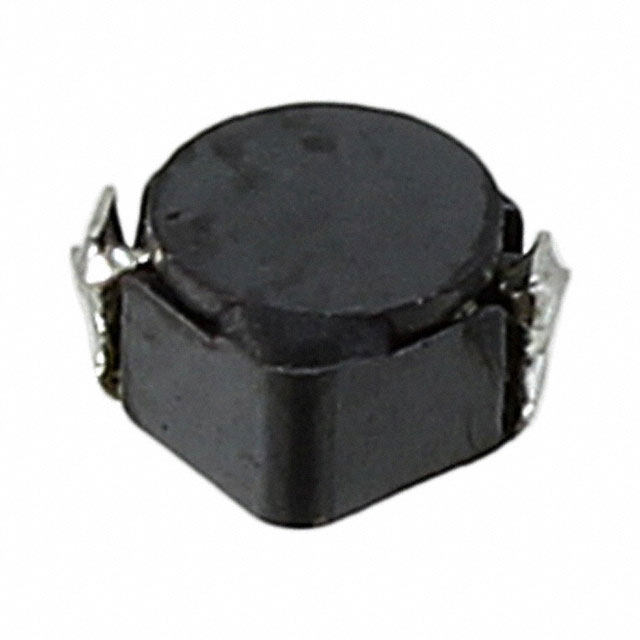

Series : CDRH2D18/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 1A
Current - Saturation : 430mA
Shielding : Shielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
1183 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±30%
Current Rating : 680mA
Current - Saturation : 300mA
Shielding : Shielded
DC Resistance (DCR) : 320 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
247 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 2.1A
Current - Saturation : 750mA
Shielding : Shielded
DC Resistance (DCR) : 54 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
786 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±30%
Current Rating : 480mA
Current - Saturation : 200mA
Shielding : Shielded
DC Resistance (DCR) : 660 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
12 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 1.65A
Current - Saturation : 630mA
Shielding : Shielded
DC Resistance (DCR) : 78 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH2D18/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±30%
Current Rating : 1.32A
Current - Saturation : 520mA
Shielding : Shielded
DC Resistance (DCR) : 106 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH3D11/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±25%
Current Rating : 600mA
Current - Saturation : 800mA
Shielding : Shielded
DC Resistance (DCR) : 413 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
204 in stock
