Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

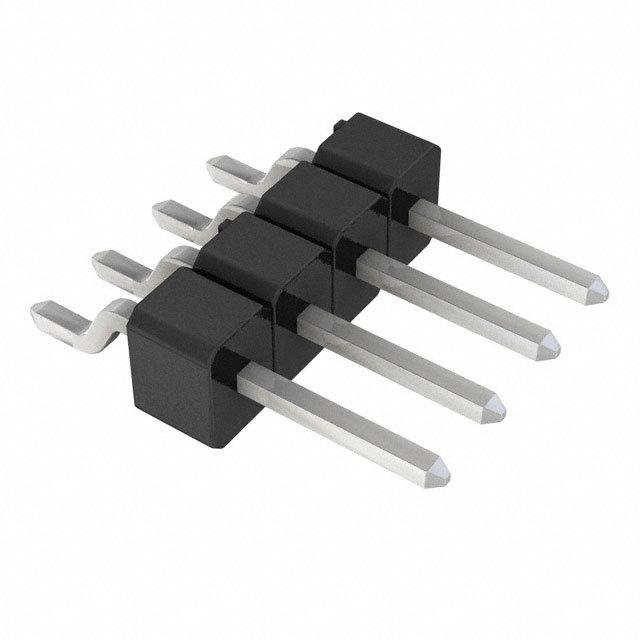

GEC04SBSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1845 in stock

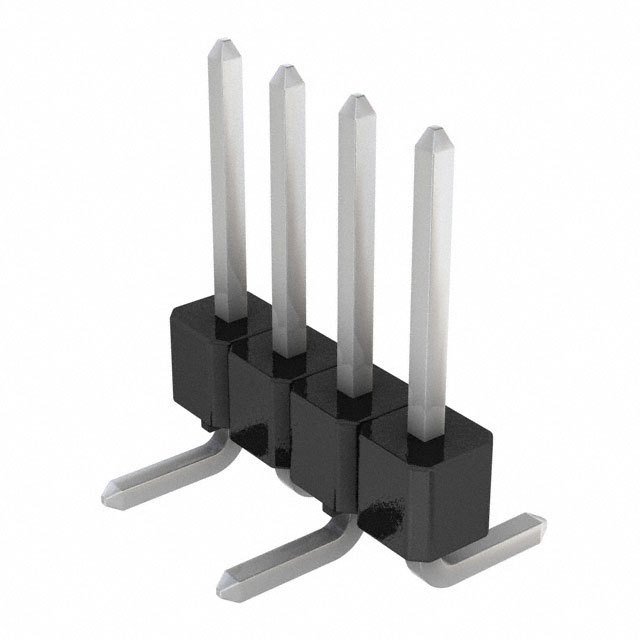

GEC04SFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Discontinued at
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Discontinued at
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
896 in stock
GEC05SBSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1824 in stock

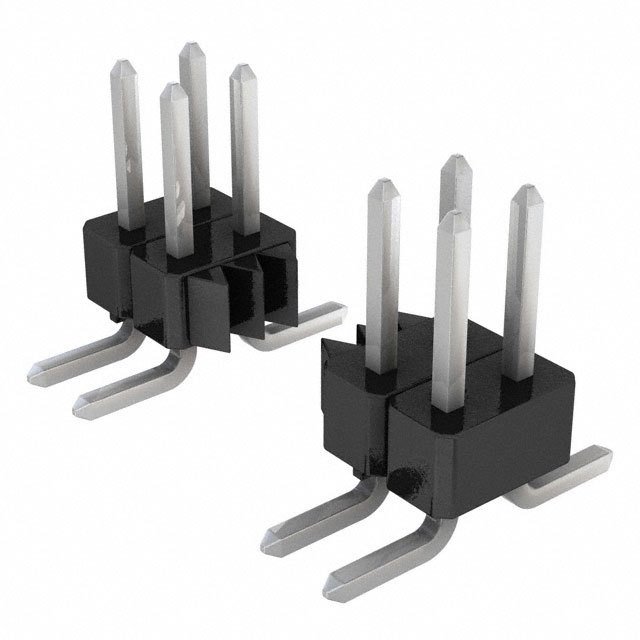

GEC06DABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
319 in stock

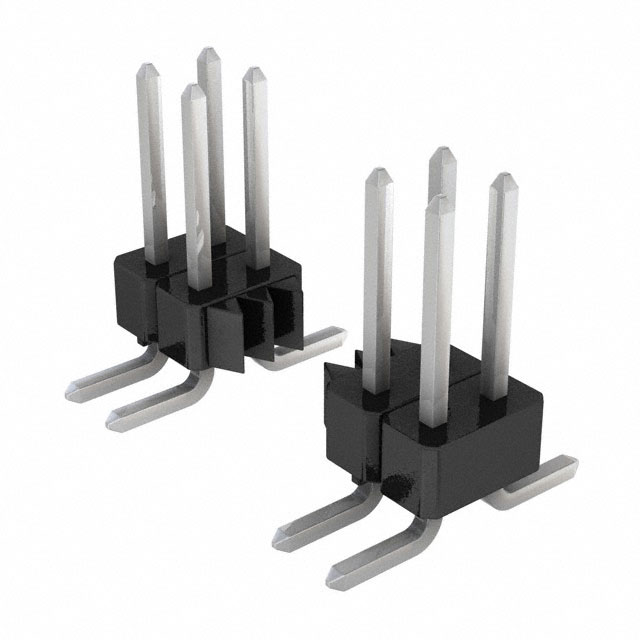

GEC06DFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
905 in stock
GEC06SGSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
208 in stock

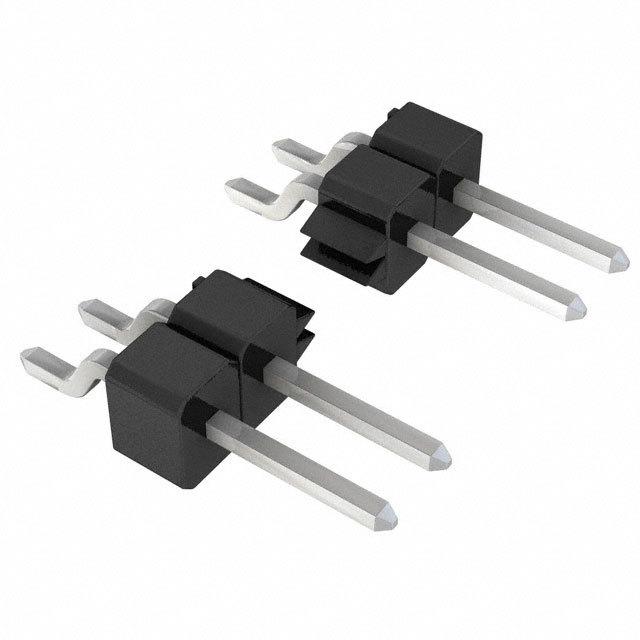

GEC07SBSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
668 in stock
GEC08SABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
3293 in stock
GEC08SBSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1621 in stock
GEC10SABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
6176 in stock
GEC11SABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
2000 in stock

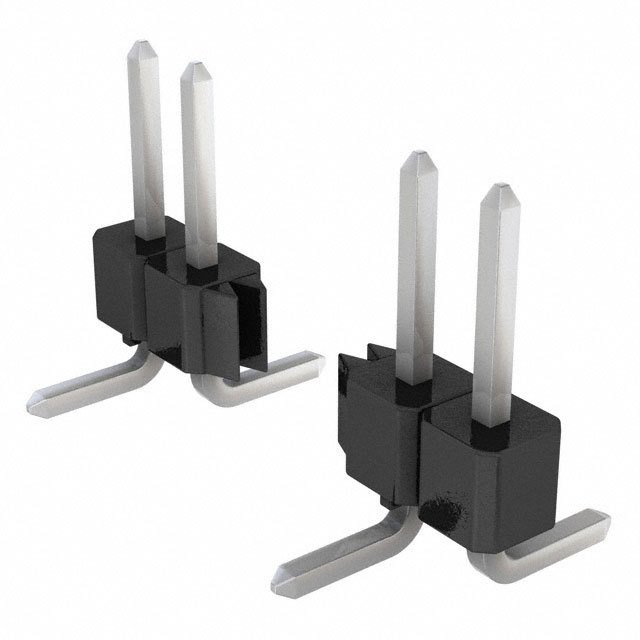

GEC13SABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 13
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 13
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
232 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
