Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

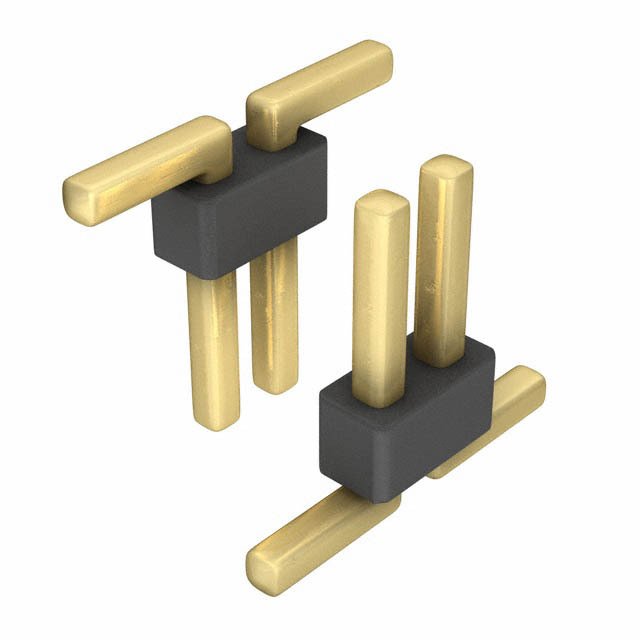

GBC13DABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
697 in stock
GBC14DCSN-S36
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 14
Number of Positions : 28
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows, Make Before Break
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 14
Number of Positions : 28
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows, Make Before Break
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
41 in stock
GBC14SFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
470 in stock
GBC15SGSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 15
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 15
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
300 in stock

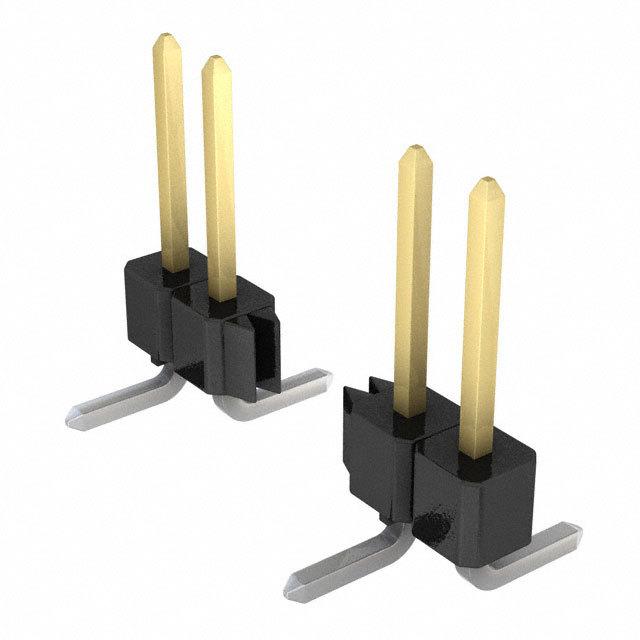

GBC16SFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1169 in stock

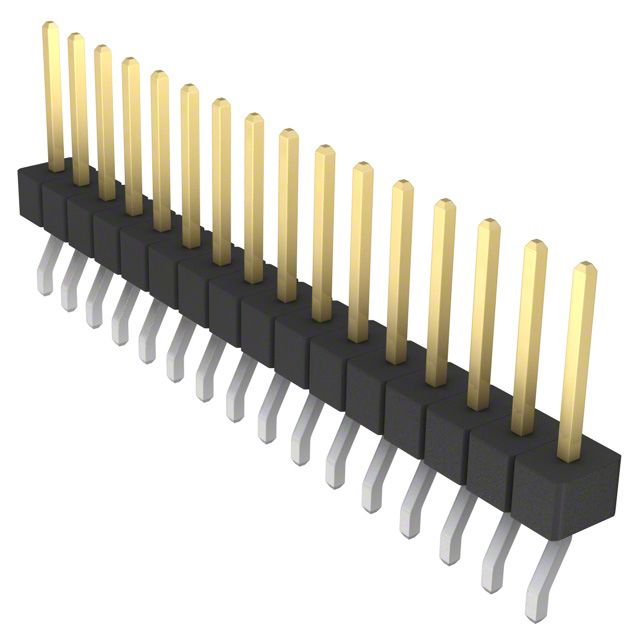

GBC16SGSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
718 in stock

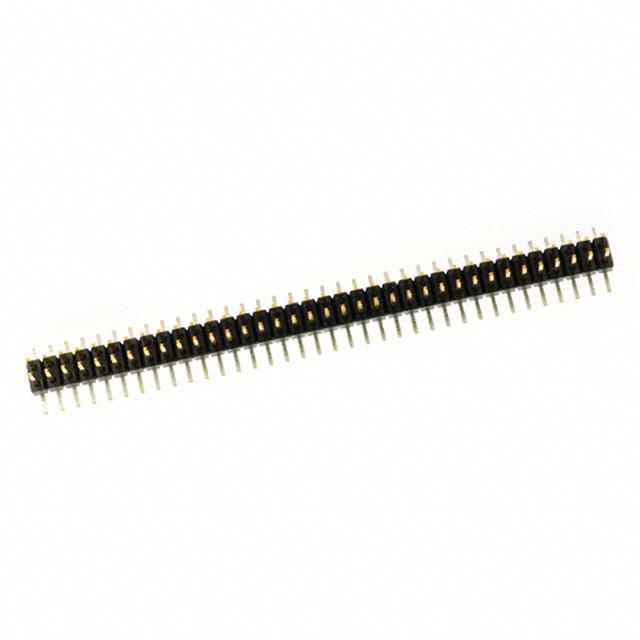

GBC36DABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1772 in stock

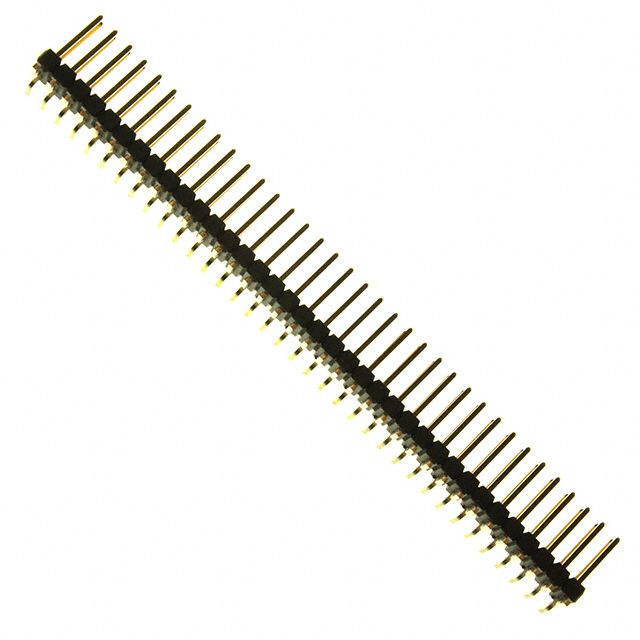

GBC36DFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
86 in stock

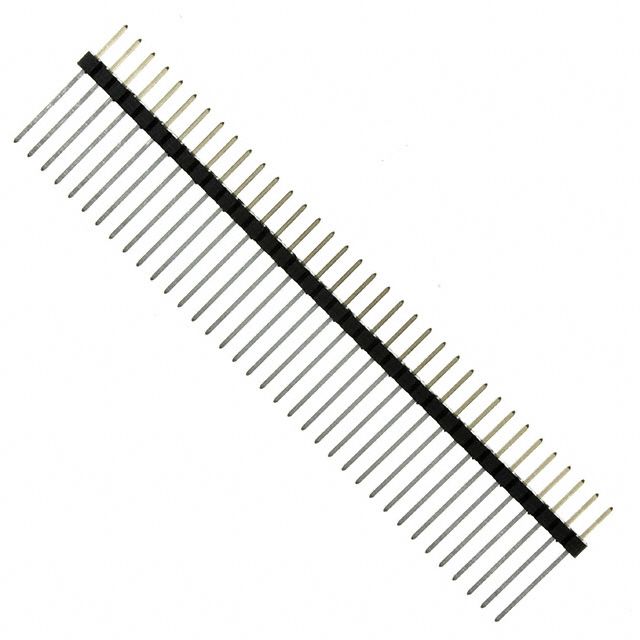

GBC36SAAN
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
2518 in stock

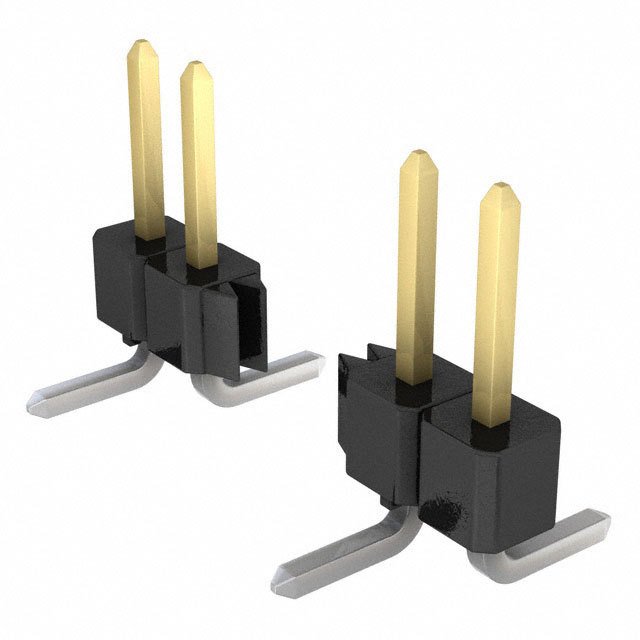

GBC36SABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1451 in stock
GBC36SBSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
537 in stock
GBC36SFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
2021 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
