Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

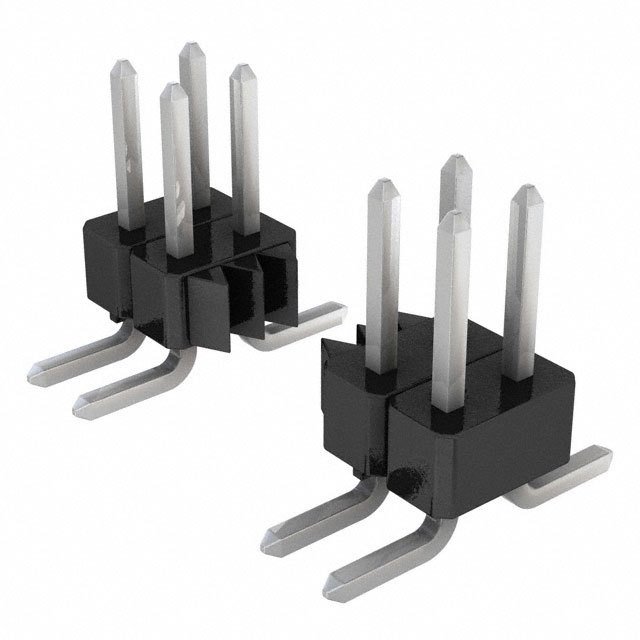

GEC36DABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
698 in stock

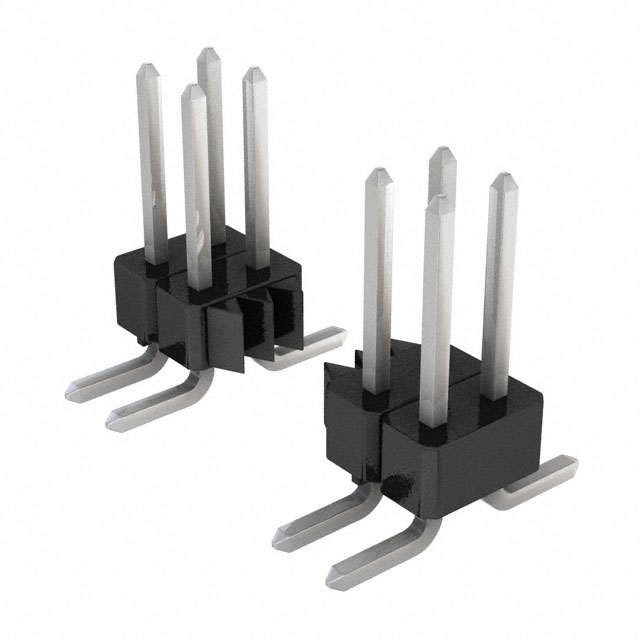

GEC36DFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 72
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
2204 in stock

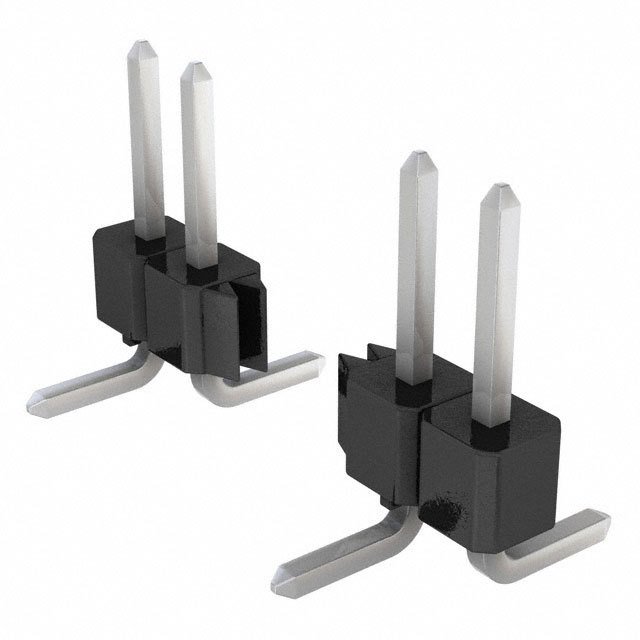

GEC36SABN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
4418 in stock

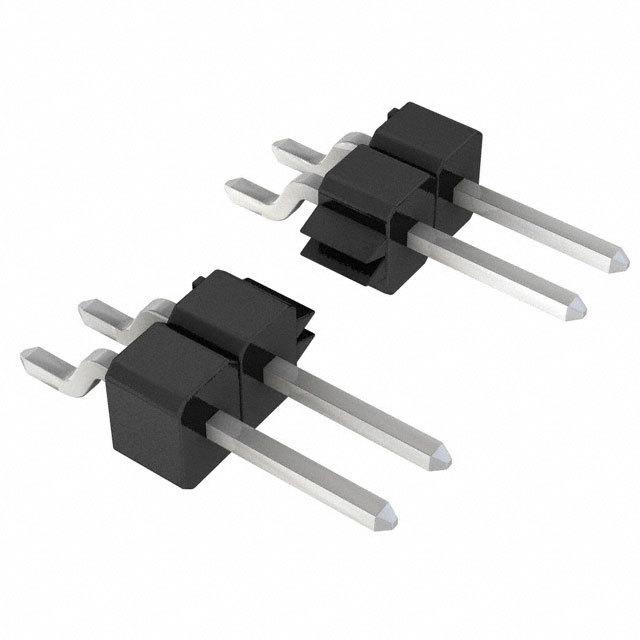

GEC36SBSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
4922 in stock
GEC36SFBN-M30
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
73 in stock

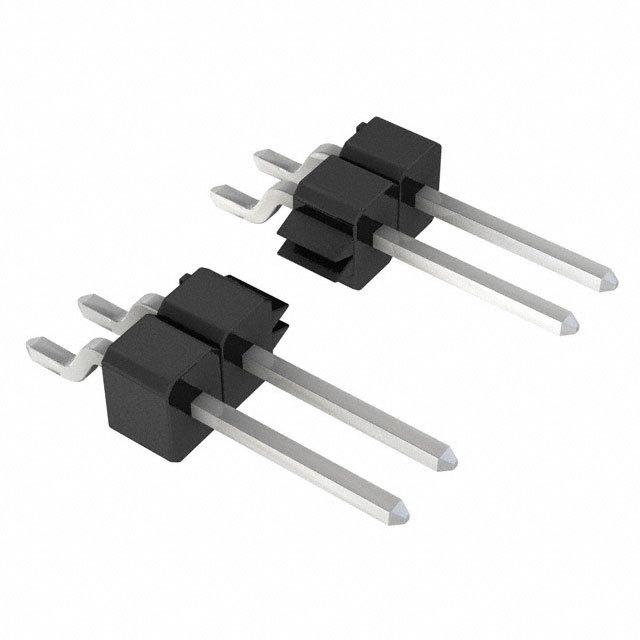

GEC36SGSN-M89
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.318" (8.08mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.140" (3.56mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -65°C ~ 150°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
145 in stock

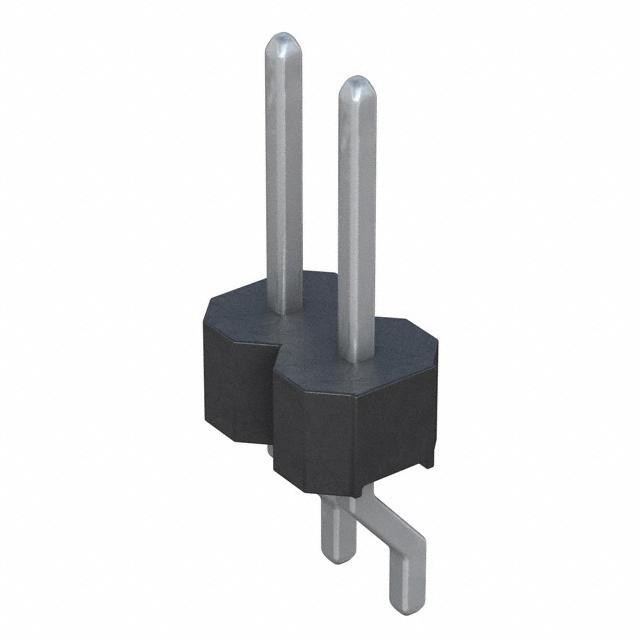

GREC002SBSN-M89RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Discontinued at
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.138" (3.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A per Contact
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Discontinued at
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.138" (3.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A per Contact
Voltage Rating : -
0
719 in stock

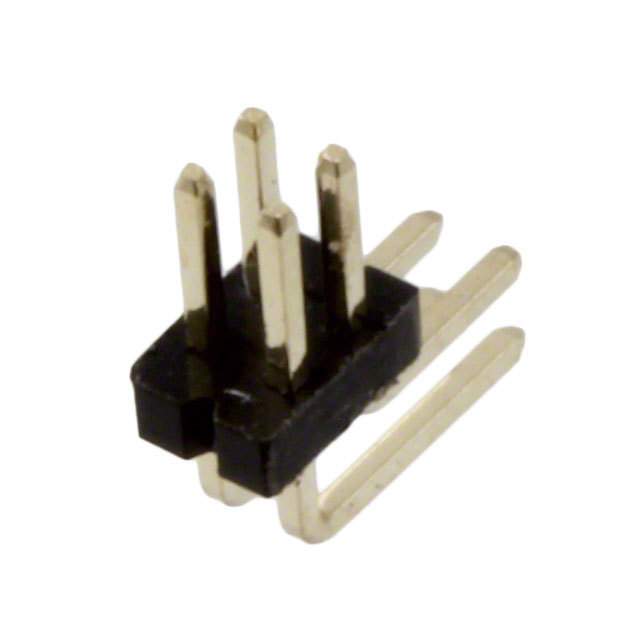

GRPB012MWCN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 2
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 2
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
1312 in stock

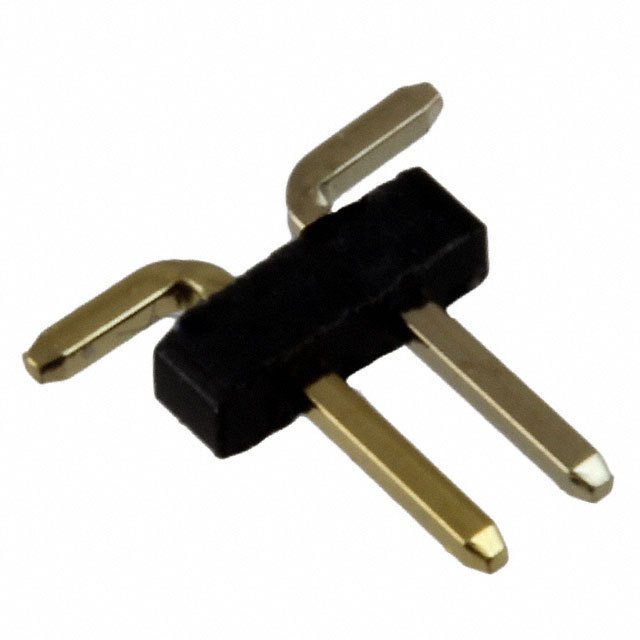

GRPB012VWQS-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 2
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 2
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
2085 in stock
GRPB021VWCN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.084" (2.14mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.084" (2.14mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
13301 in stock
GRPB021VWVN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.091" (2.30mm)
Overall Contact Length : 0.248" (6.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
53429 in stock
GRPB022MWCN-RC
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.118" (3.00mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : -
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : -
Current Rating : 1A
Voltage Rating : -
0
950 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
