- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8829
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.296" (7.52mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.245" (6.22mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1010 in stock

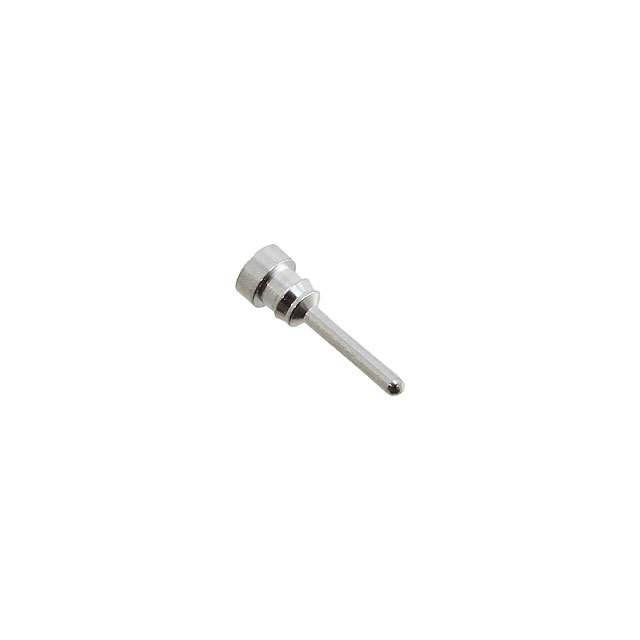

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8831
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.212" (5.38mm)
Length - Below Flange : -
Length - Overall : 0.242" (6.15mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
3264 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8831
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.212" (5.38mm)
Length - Below Flange : -
Length - Overall : 0.242" (6.15mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : -
Contact Finish Thickness : -
0
435 in stock

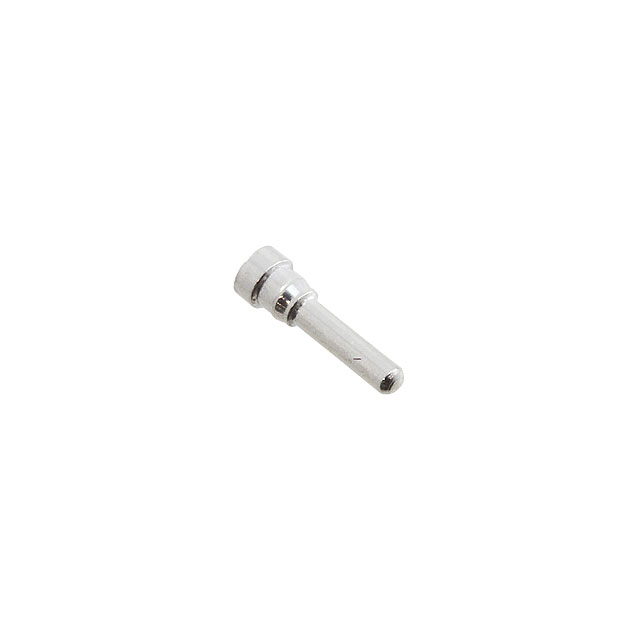

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8835
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.212" (5.38mm)
Length - Below Flange : -
Length - Overall : 0.242" (6.15mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
2473 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8836
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.072" (1.83mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.282" (7.16mm)
Length - Below Flange : -
Length - Overall : 0.312" (7.92mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
1890 in stock

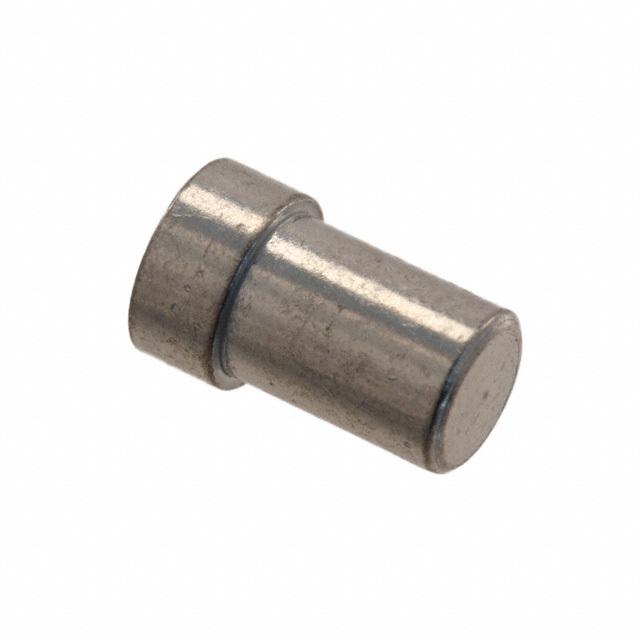

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8837
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.306" (7.77mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1490 in stock

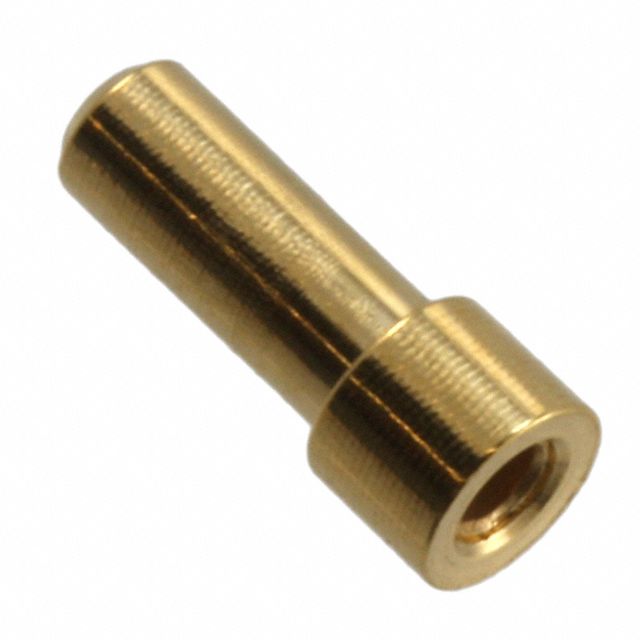

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8838
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.296" (7.52mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.086" (2.18mm)
Flange Diameter : 0.115" (2.92mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
10369 in stock

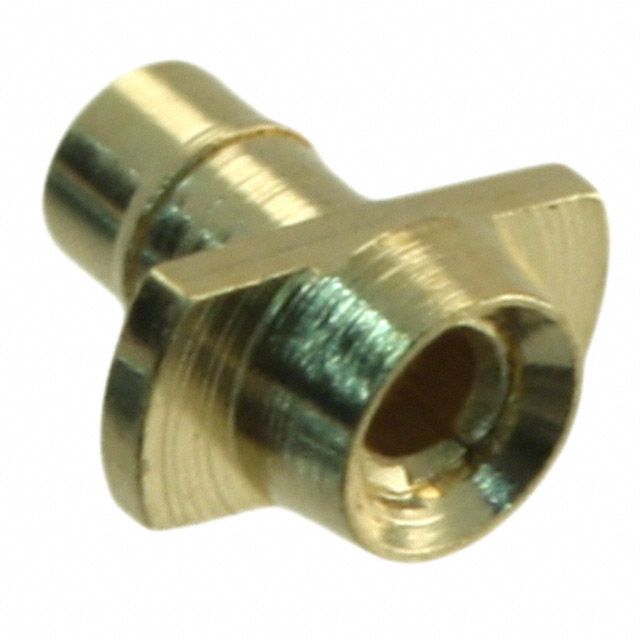

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8874
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.088" (2.24mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : -
Flange Diameter : 0.093" (2.36mm)
Tail Diameter : -
Socket Depth : 0.088" (2.24mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4398 in stock

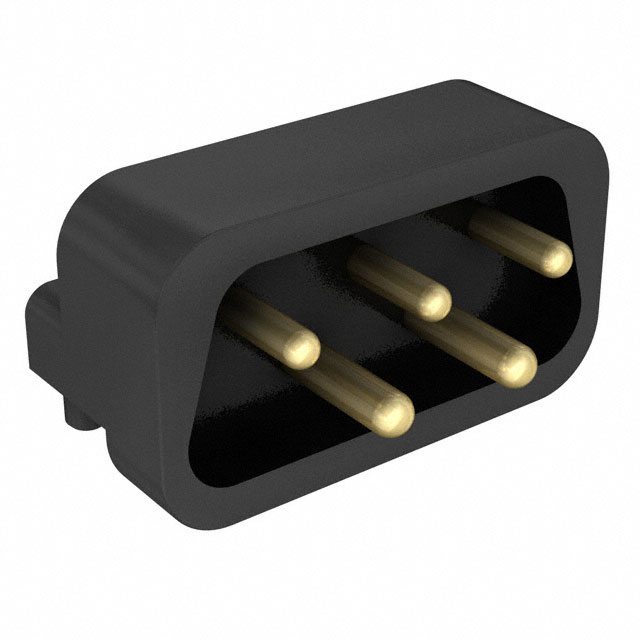

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 888
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 5 (3 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.059" (1.50mm)
Overall Contact Length : -
Insulation Height : 0.315" (8.00mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
47 in stock

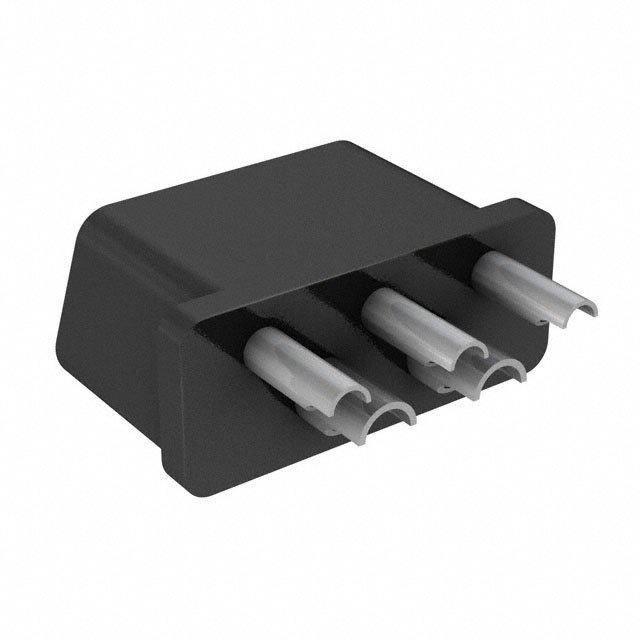

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 888
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 5 (3 + 2 Power)
Pitch : -
Number of Rows : 2
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Solder Cup
Wire Type : Discrete
Wire Gauge : -
Features : -
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Color : Black
0
55 in stock

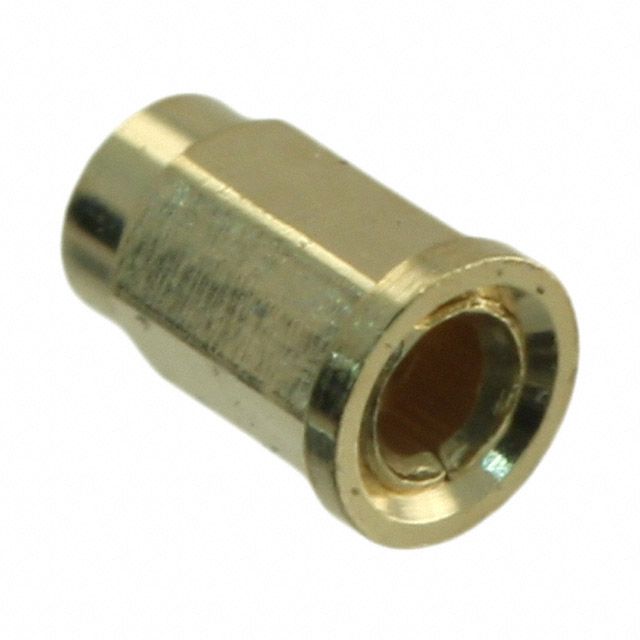

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8894
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.100" (2.54mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2151 in stock

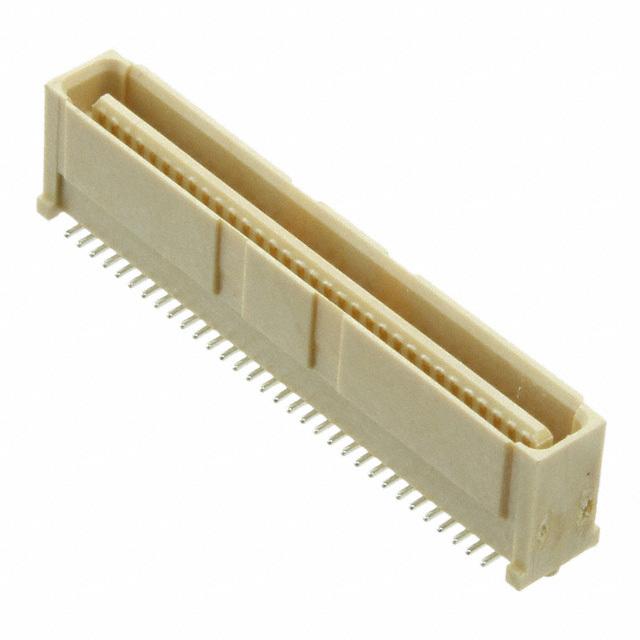

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 891
Part Status : Active
Connector Type : Header, Outer Shroud Contacts
Number of Positions : 64
Pitch : 0.039" (1.00mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Mated Stacking Heights : 10mm
Height Above Board : 0.329" (8.35mm)
0
686 in stock
