- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

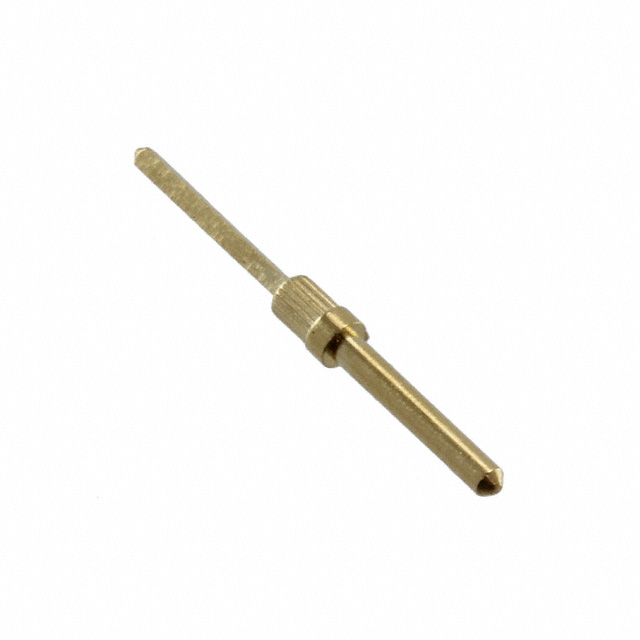

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8608
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.041" (1.04mm) Dia
Pin Size - Below Flange : 0.025" (0.64mm) Square
Length - Above Flange : 0.270" (6.86mm)
Length - Below Flange : 0.340" (8.64mm)
Length - Overall : 0.640" (16.26mm)
Flange Diameter : 0.066" (1.68mm)
Mounting Hole Diameter : 0.056" (1.42mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1000 in stock

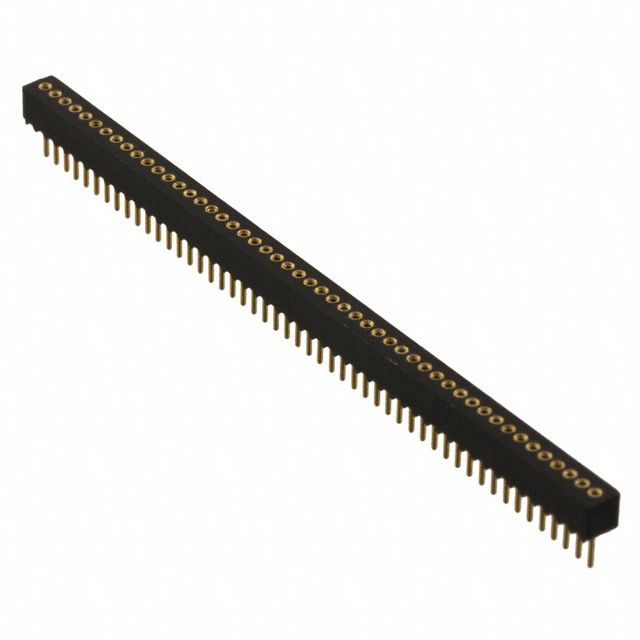

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 861
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.098" (2.50mm)
Contact Length - Post : 0.092" (2.34mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
67 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 862
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.070" (1.78mm)
Number of Positions : 21
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.142" (3.61mm)
Contact Length - Post : 0.117" (2.97mm)
Overall Contact Length : 0.399" (10.13mm)
Insulation Height : 0.110" (2.79mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 200.0µin (5.08µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT)
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
760 in stock

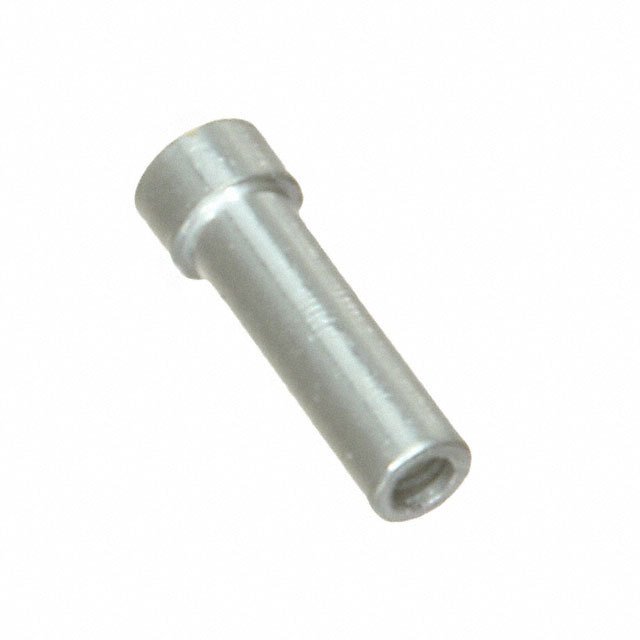

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8637
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.138" (3.51mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.037" (0.94mm)
Flange Diameter : 0.046" (1.17mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
54306 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8637
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.138" (3.51mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.037" (0.94mm)
Flange Diameter : 0.046" (1.17mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
985 in stock

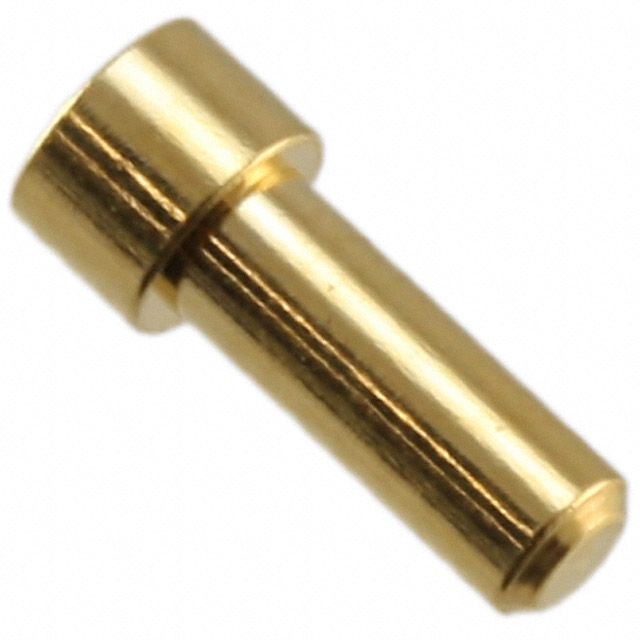

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8679
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.071" (1.80mm)
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.210" (5.33mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3800 in stock

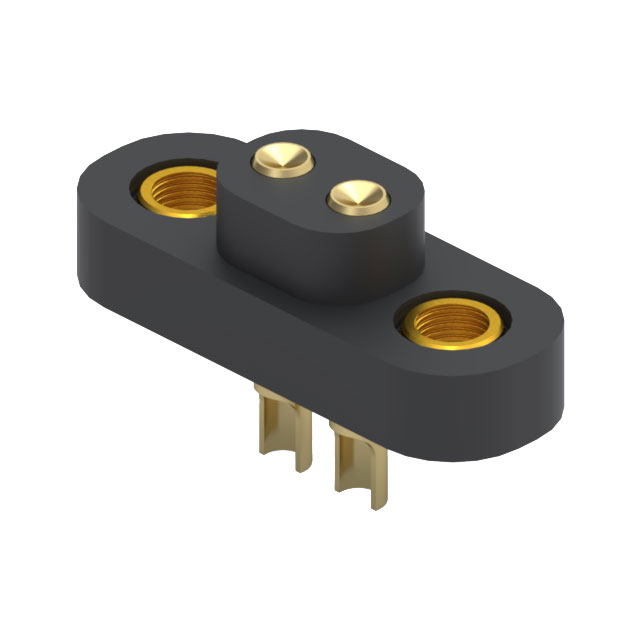

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 868
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 2
Pitch : 0.157" (4.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Solder Cup
Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
161 in stock

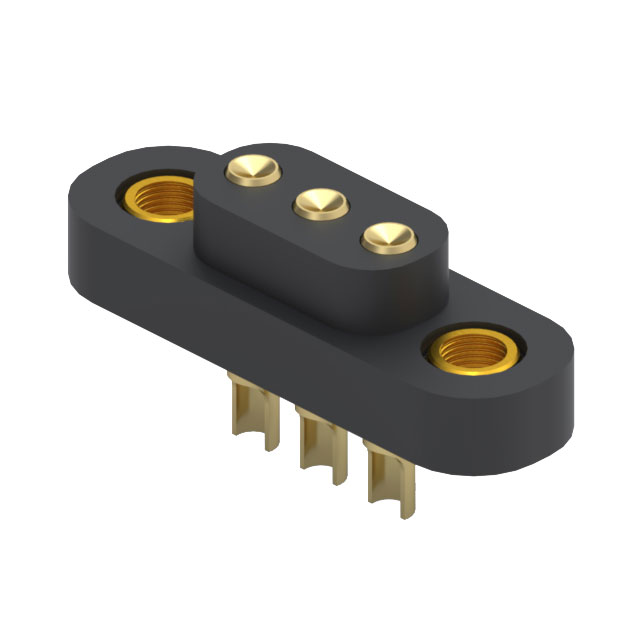

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 868
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 3
Pitch : 0.157" (4.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Solder Cup
Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
114 in stock

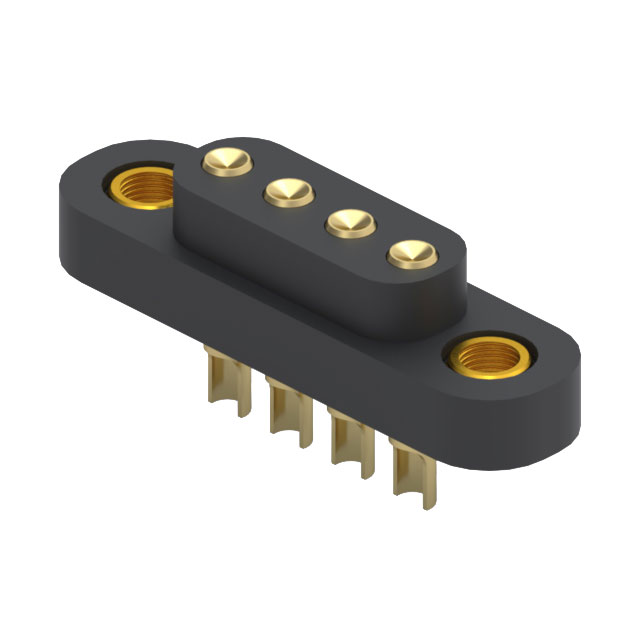

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 868
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 4
Pitch : 0.157" (4.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Solder Cup
Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
100 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 868
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 5
Pitch : 0.157" (4.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Solder Cup
Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
100 in stock

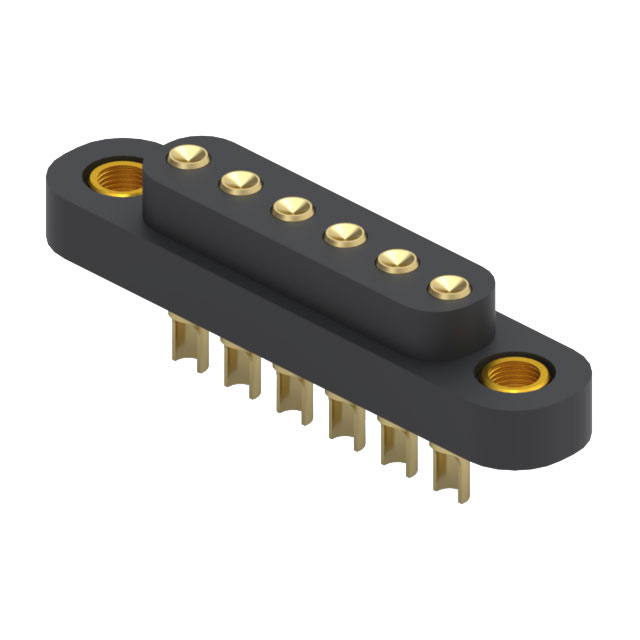

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 868
Part Status : Active
Connector Type : Mating Target
Number of Contacts : 6
Pitch : 0.157" (4.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Solder Cup
Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
100 in stock

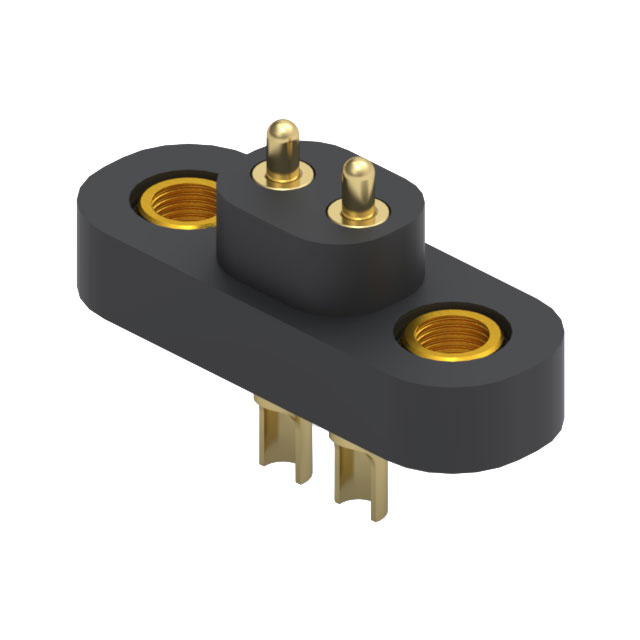

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 868
Part Status : Active
Connector Type : Piston
Number of Contacts : 2
Pitch : 0.157" (4.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Solder Cup
Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
100 in stock
