- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

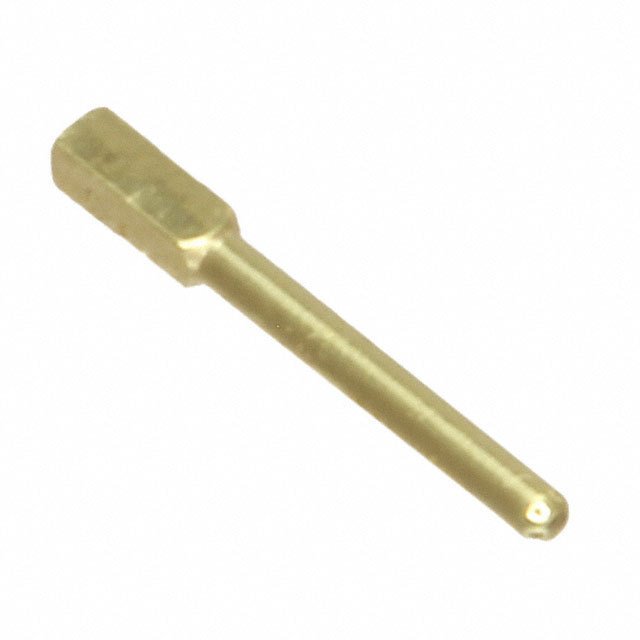

Mill-Max

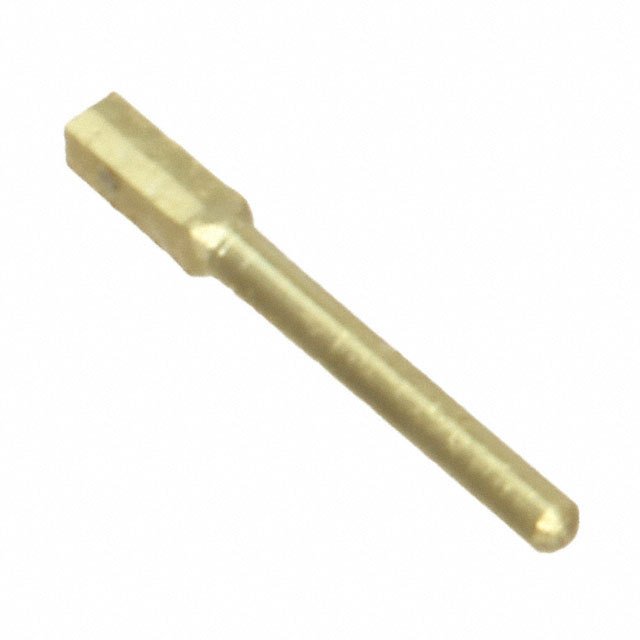

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8969
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.028" (0.71mm) Dia
Length - Above Flange : 0.140" (3.56mm)
Length - Below Flange : -
Length - Overall : 0.200" (5.08mm)
Flange Diameter : 0.021" (0.53mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Press-Fit, Square
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
975 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8969
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.028" (0.71mm) Dia
Length - Above Flange : 0.140" (3.56mm)
Length - Below Flange : -
Length - Overall : 0.200" (5.08mm)
Flange Diameter : 0.021" (0.53mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Press-Fit, Square
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
1000 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 897
Part Status : Active
Connector Type : USB - micro B
Number of Contacts : 10
Gender : Receptacle
Specifications : USB 3.0 (USB 3.1 Gen 1, Superspeed)
Mounting Type : Surface Mount
Mounting Feature : Vertical
Termination : Solder
Features : Board Guide, Solder Retention
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : 1.5A
Voltage - Rated : 30VAC
Mating Cycles : 10000
Shielding : Shielded
0
37 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 897
Part Status : Active
Connector Type : USB - micro B
Number of Contacts : 10
Gender : Receptacle
Specifications : USB 3.0 (USB 3.1 Gen 1, Superspeed)
Mounting Type : Surface Mount, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Solder Retention
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : 1.5A
Voltage - Rated : 30VAC
Mating Cycles : 10000
Shielding : Shielded
0
1713 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tray
Series : 897
Part Status : Obsolete
Connector Type : USB - B
Number of Contacts : 4
Gender : Receptacle
Specifications : USB 2.0
Mounting Type : Through Hole, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Lock
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : 1A
Voltage - Rated : 30VAC
Mating Cycles : -
Shielding : Unshielded
0
100 in stock

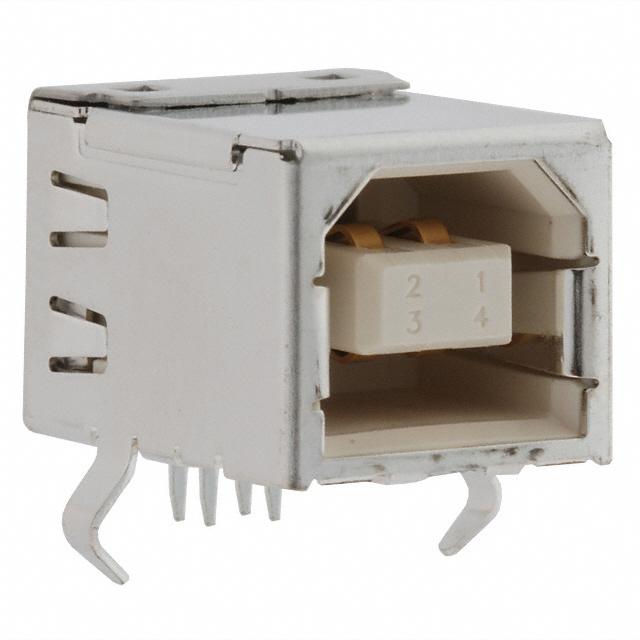

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tray
Series : 897
Part Status : Active
Connector Type : USB - B
Number of Contacts : 4
Gender : Receptacle
Specifications : USB 2.0
Mounting Type : Through Hole, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Lock
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : 1A
Voltage - Rated : 30VAC
Mating Cycles : 1500
Shielding : Shielded
0
35849 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 897
Part Status : Active
Connector Type : USB - mini B
Number of Contacts : 5
Gender : Receptacle
Specifications : USB 2.0
Mounting Type : Surface Mount, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Guide, Solder Retention
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : 1A
Voltage - Rated : 30VAC
Mating Cycles : 5000
Shielding : Shielded
0
11895 in stock

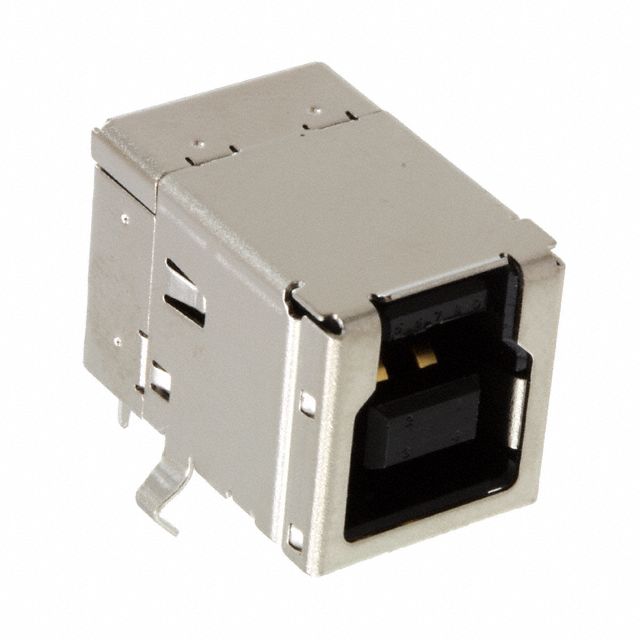

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tray
Series : 897
Part Status : Active
Connector Type : USB - B
Number of Contacts : 9
Gender : Receptacle
Specifications : USB 3.0 (USB 3.1 Gen 1, Superspeed)
Mounting Type : Through Hole, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Lock
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : 1.5A
Voltage - Rated : 30VAC
Mating Cycles : 5000
Shielding : Shielded
0
583 in stock

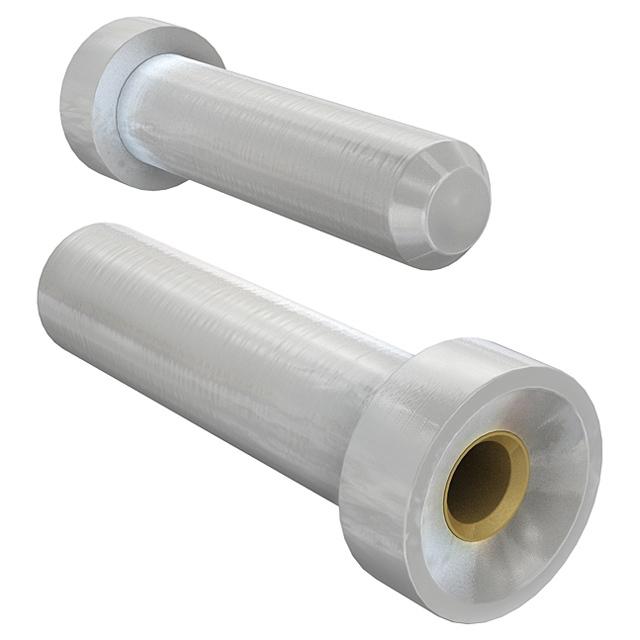

Mill-Max

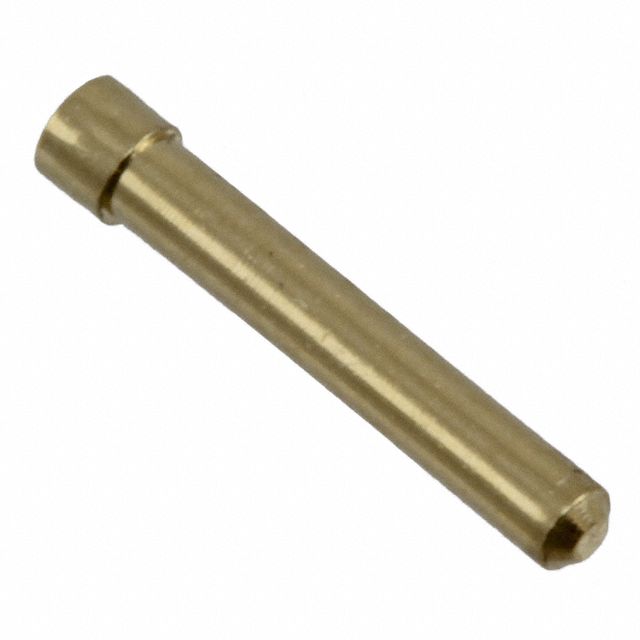

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8975
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.042" (1.07mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
21100 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8975
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.042" (1.07mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4336 in stock

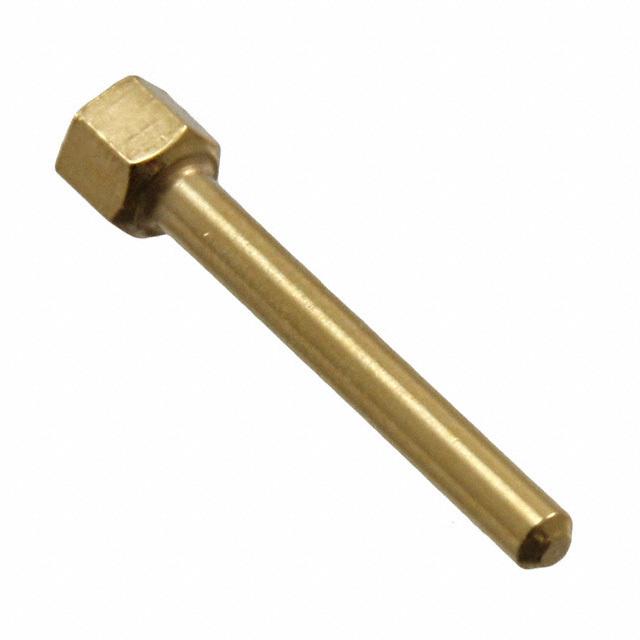

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 8979
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.321" (8.15mm)
Length - Below Flange : -
Length - Overall : 0.381" (9.68mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.074" (1.88mm)
Mounting Type : Through Hole
Termination : Press-Fit, Hex
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
11475 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tray
Series : 898
Part Status : Active
Connector Type : USB - C
Number of Contacts : 24
Gender : Receptacle
Specifications : USB 3.1 (USB 3.1 Gen 2, Superspeed+)
Mounting Type : Surface Mount
Mounting Feature : Vertical
Termination : Solder
Features : Board Guide, Shielded
Ingress Protection : -
Operating Temperature : -40°C ~ 85°C
Number of Ports : 1
Current Rating : 1.25A, 5A
Voltage - Rated : 50VAC
Mating Cycles : 10000
Shielding : Shielded
0
2309 in stock
