Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.30mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.026 lb (11.79g)
0
8 in stock

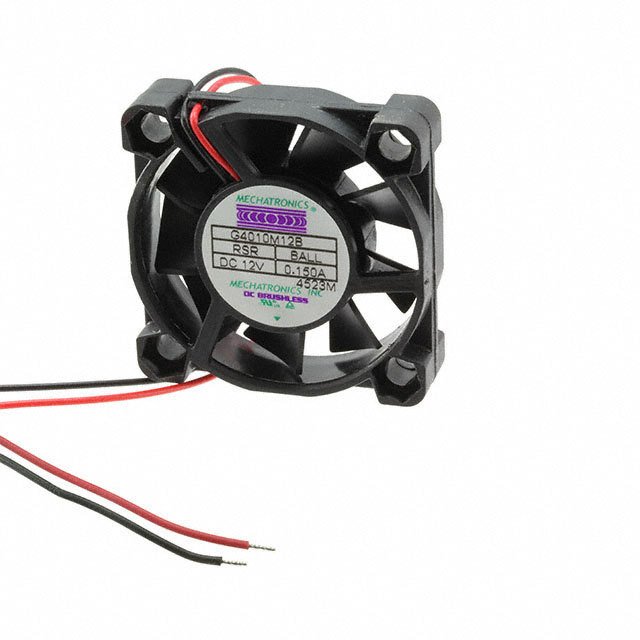

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.30mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.026 lb (11.79g)
0
104 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.30mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.026 lb (11.79g)
0
30 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.0 CFM (0.224m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 29.0 dB(A)
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.051 lb (23.13g)
0
63 in stock

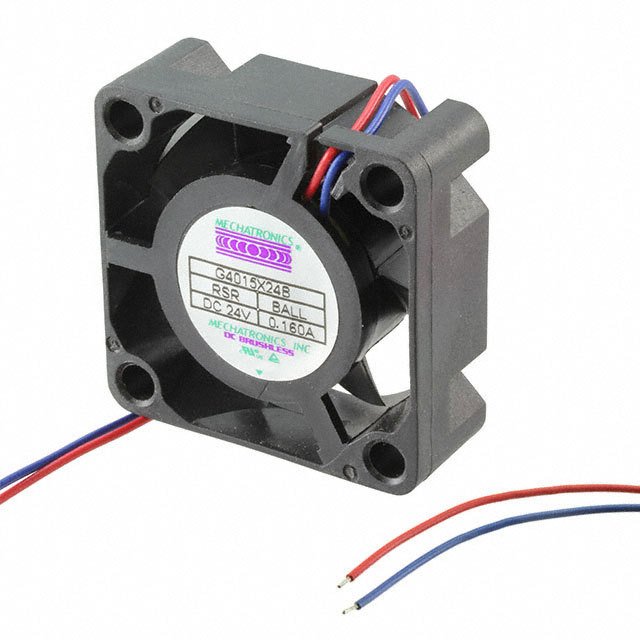

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.0 CFM (0.224m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor, Thermal Overload Protector (TOP)
Noise : 29.0 dB(A)
Power (Watts) : -
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.051 lb (23.13g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.0 CFM (0.224m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 29.0 dB(A)
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.051 lb (23.13g)
0
50 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Conformal Coating
Noise : 23.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.051 lb (23.13g)
0
8 in stock

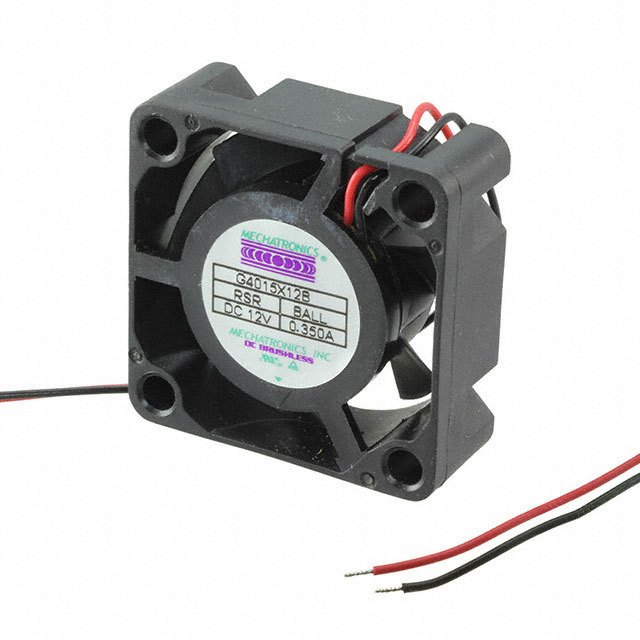

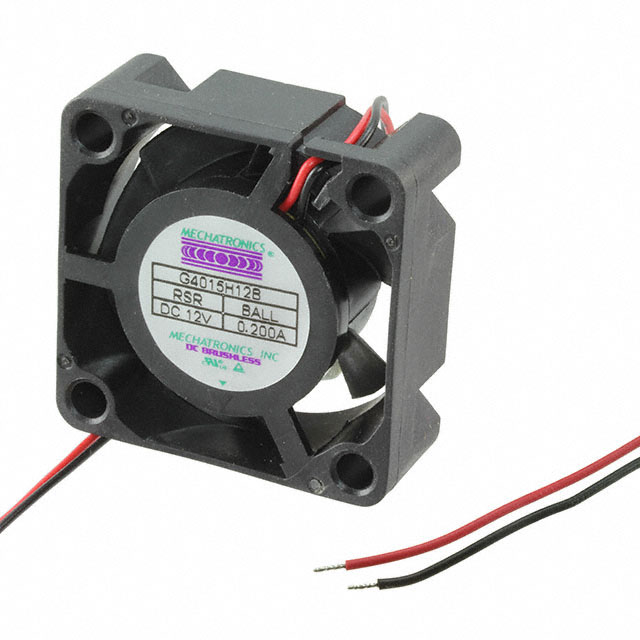

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 12.0 CFM (0.336m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 39.0 dB(A)
Power (Watts) : -
RPM : 12000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.051 lb (23.13g)
0
192 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 12.0 CFM (0.336m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 39.0 dB(A)
Power (Watts) : -
RPM : 12000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.051 lb (23.13g)
0
336 in stock

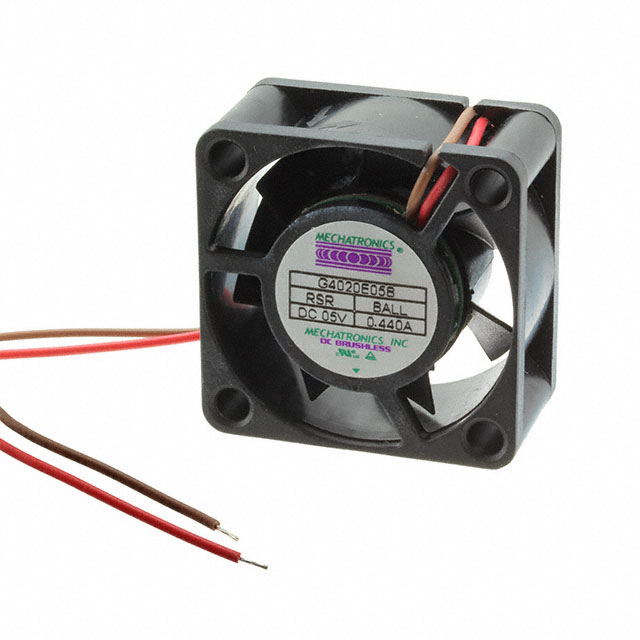

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4020
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 11.7 CFM (0.328m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.062 lb (28.12g)
0
486 in stock

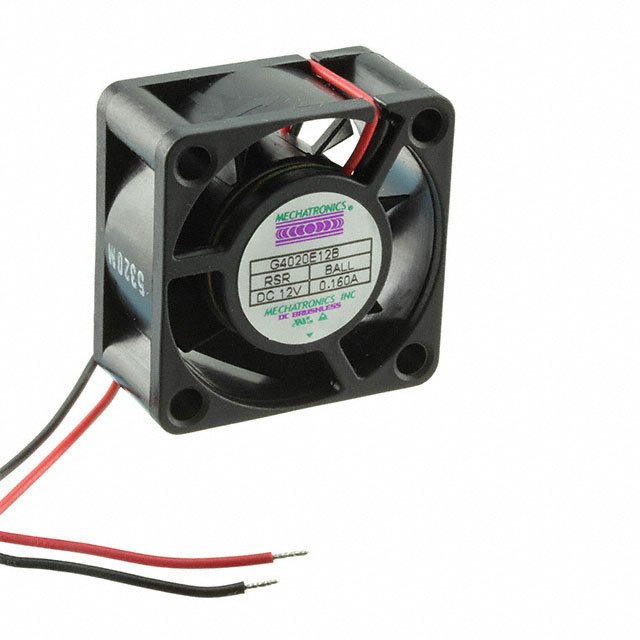

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 11.7 CFM (0.328m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.062 lb (28.12g)
0
193 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : G4020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 11.7 CFM (0.328m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.062 lb (28.12g)
0
2 in stock
