Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

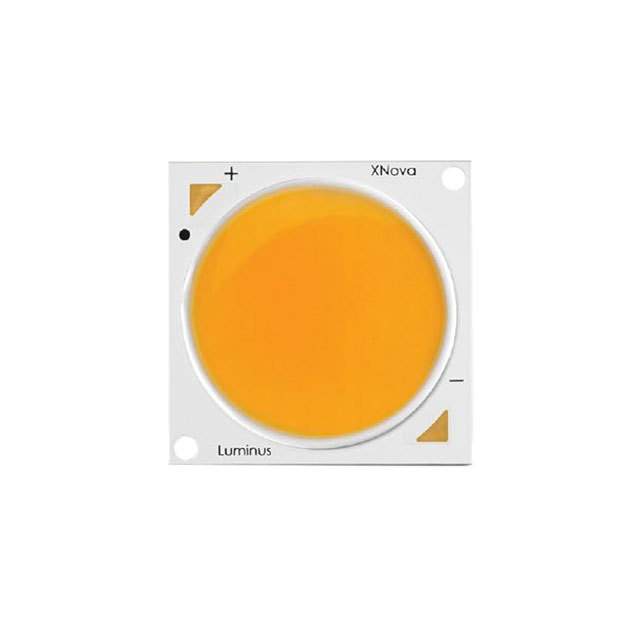

CXM-22-30-80-36-AC10-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5940 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 136 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

1595 in stock

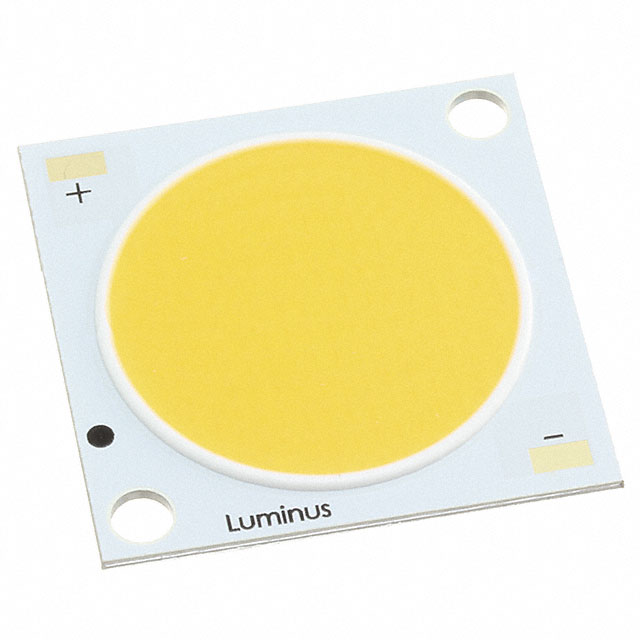

CXM-22-30-80-36-AC12-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5645 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 126 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

158 in stock

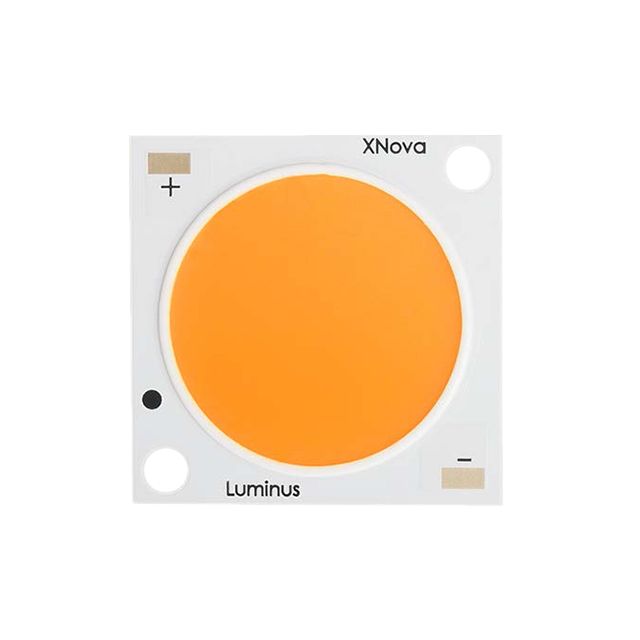

CXM-22-30-80-54-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8285 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 51V
Lumens/Watt @ Current - Test : 148 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

696 in stock

CXM-22-30-90-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4590 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

100 in stock

CXM-22-30-90-36-AC02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4360 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 2.9A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

100 in stock

CXM-22-30-90-36-AC10-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5050 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

100 in stock

CXM-22-30-90-36-AC12-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4800 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

394 in stock

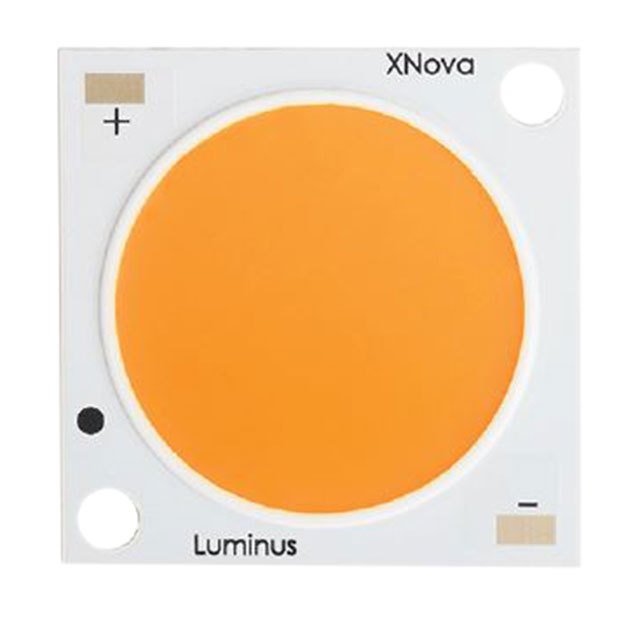

CXM-22-30-90-54-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6970 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 51V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

548 in stock

CXM-22-30-95-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4240 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

395 in stock

CXM-22-35-70-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 2.56A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

100 in stock

CXM-22-35-80-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5580 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

100 in stock

CXM-22-35-80-36-AC10-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6140 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

6507 in stock
