Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CXM-18-50-90-36-AA00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3190 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

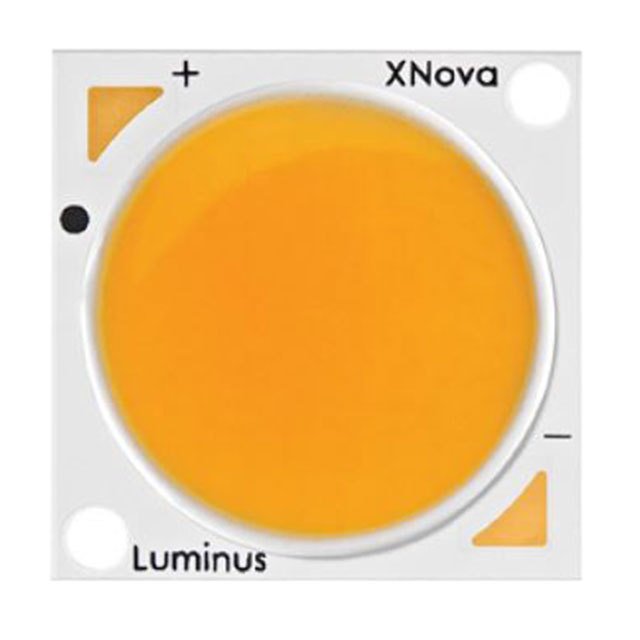

CXM-18-65-80-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3690 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-65-80-36-AA00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3690 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-22-27-80-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5110 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

100 in stock

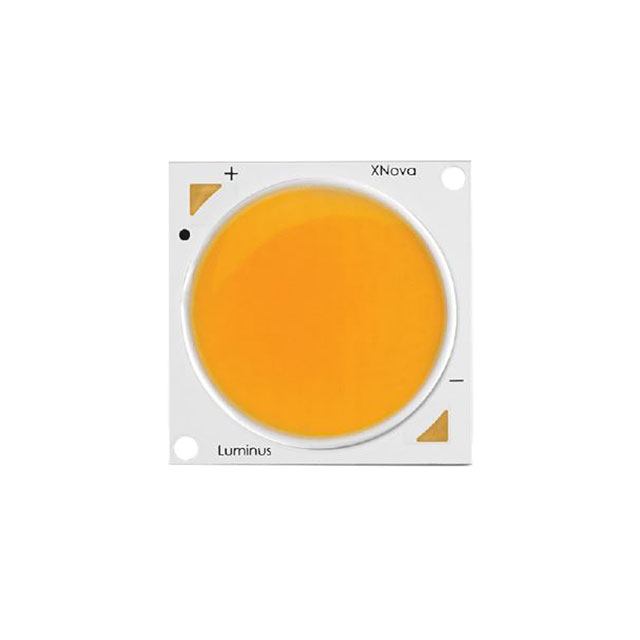

CXM-22-27-80-36-AC10-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5620 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

591 in stock

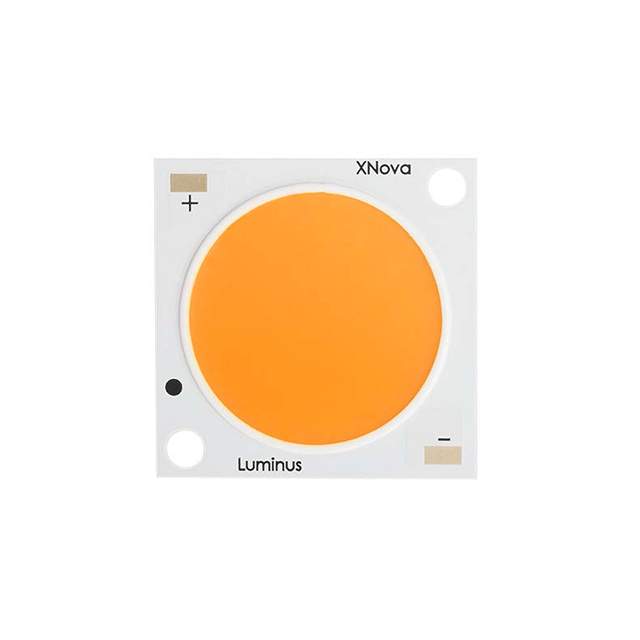

CXM-22-27-80-54-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7840 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 51V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

490 in stock

CXM-22-27-90-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3990 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

100 in stock

CXM-22-27-90-36-AC10-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22 Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4390 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

119 in stock

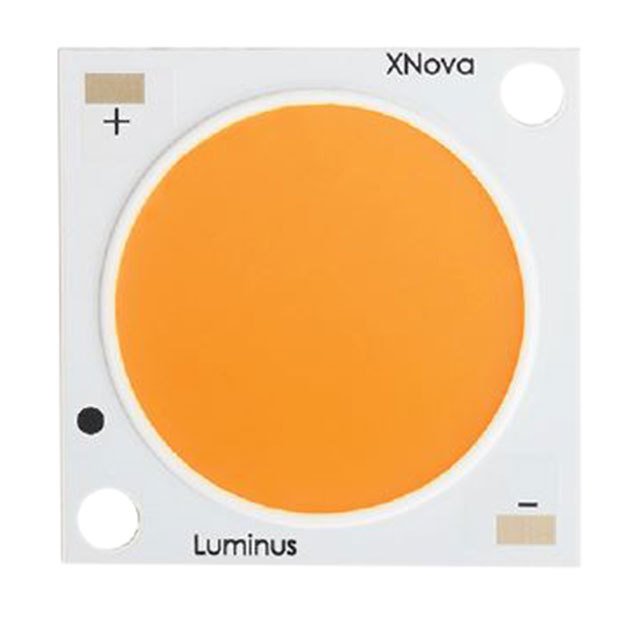

CXM-22-27-95-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3755 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

100 in stock

CXM-22-30-70-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 2.56A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

100 in stock

CXM-22-30-80-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5400 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

100 in stock

CXM-22-30-80-36-AC02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5400 lm (Typ)
Current - Test : 1.28A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 2.56A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : -
Height : 1.37mm
Light Emitting Surface (LES) : 23.50mm Diameter
Lens Type : Flat

100 in stock
