Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CXM-18-35-90-36-AA32-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3750 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

900 in stock

CXM-18-35-95-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2730 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-40-80-36-AA00-F1-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3335 lm (3250 lm ~ 3420 lm)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-40-80-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 800mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-40-80-36-AA30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4805 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 157 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

525 in stock

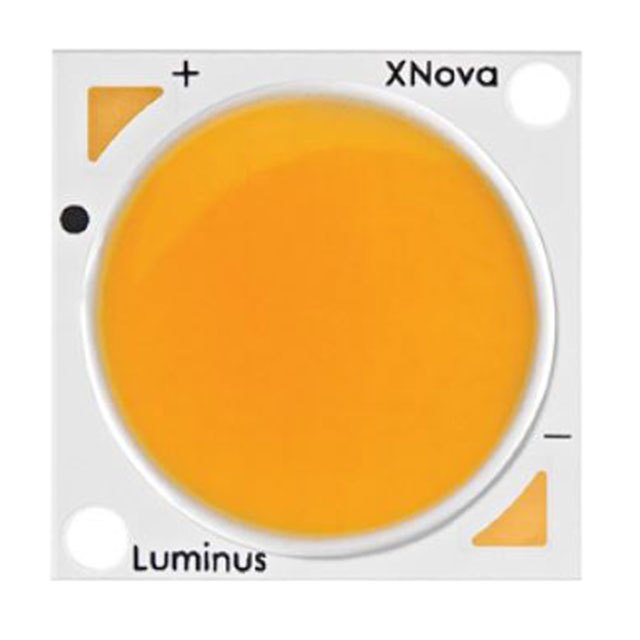

CXM-18-40-90-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3110 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-40-90-36-AA30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4170 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 136 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

173 in stock

CXM-18-40-95-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2820 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-50-80-36-AA00-F1-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3418 lm (3330 lm ~ 3505 lm)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-50-80-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3598 lm (3505 lm ~ 3690 lm)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-50-80-36-AA00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 800mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock

CXM-18-50-90-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CXM-18
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3190 lm (Typ)
Current - Test : 800mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 17.50mm Diameter
Lens Type : Flat

100 in stock
