Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5205 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
300 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 950 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
2211 in stock

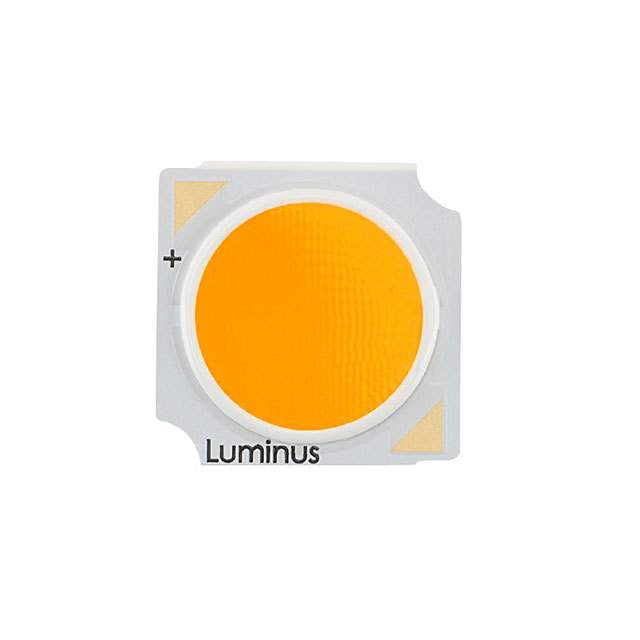

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1215 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 150 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
75 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1020 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 126 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
2181 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1040 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 128 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
2775 in stock

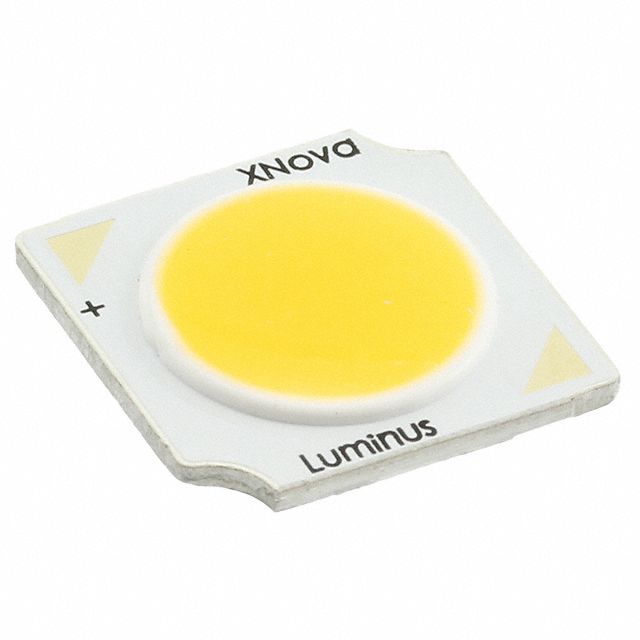

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 710 lm (Typ)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
2369 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1100 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 136 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
3026 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1275 lm (Typ)
Current - Test : 240mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 157 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
55 in stock

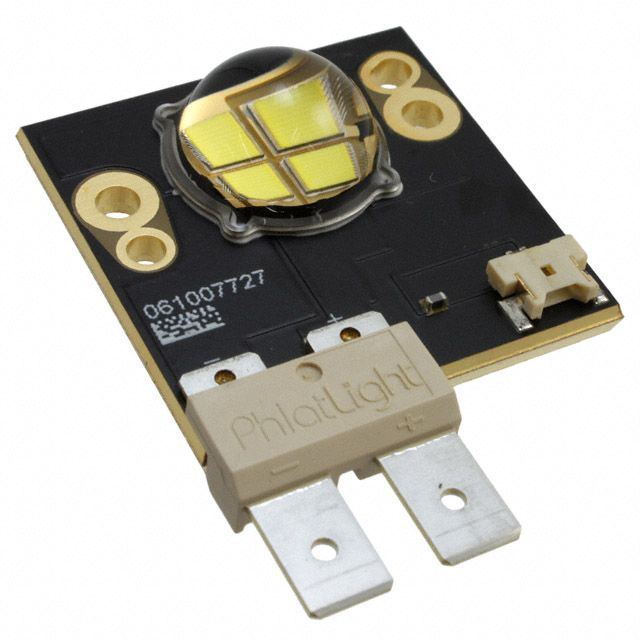

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : -
Current - Max : 6.3A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : -
Current - Max : 6.3A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1925 lm (1750 lm ~ 2100 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CSM-360
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1925 lm (1750 lm ~ 2100 lm)
Current - Test : 3.15A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 13.14V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 6.3A
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 36.00mm L x 51.00mm W
Height : 5.61mm
Light Emitting Surface (LES) : 16.00mm Diameter
Lens Type : Domed
0
100 in stock
