Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CHM-9-50-90-36-XH00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2155 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat

100 in stock

CHM-9-65-80-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1500 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat

100 in stock

CHM-9-65-80-36-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1500 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat

100 in stock

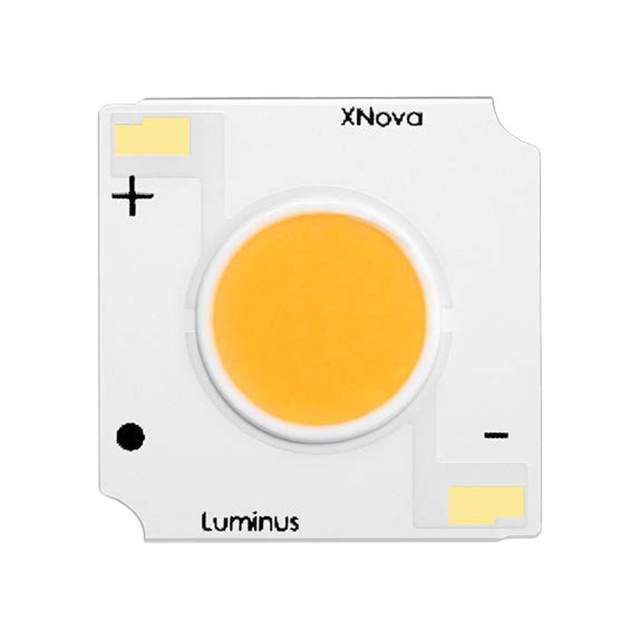

CHM-9-65-80-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2685 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat

100 in stock

CHM-9-65-80-36-XH00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2685 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat

100 in stock

CLM-22-27-80-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5440 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 146 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

340 in stock

CLM-22-27-90-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4485 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

360 in stock

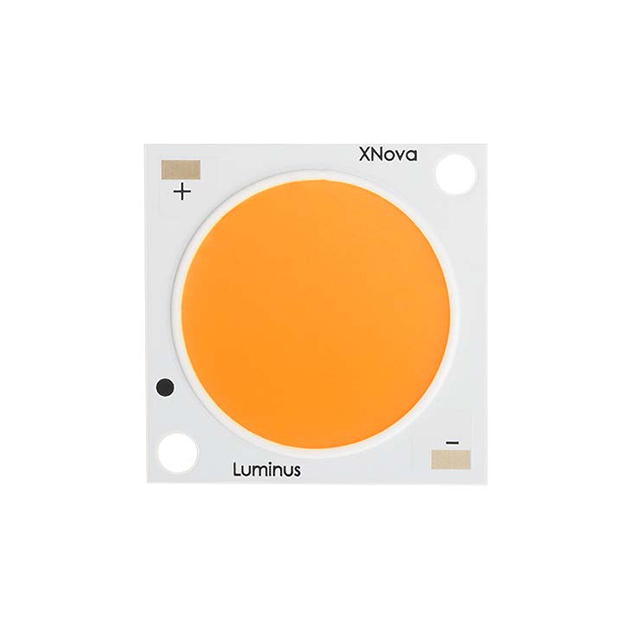

CLM-22-30-80-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5750 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 155 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

227 in stock

CLM-22-30-90-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4835 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

357 in stock

CLM-22-35-80-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5920 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

197 in stock

CLM-22-35-90-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4935 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 133 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

360 in stock

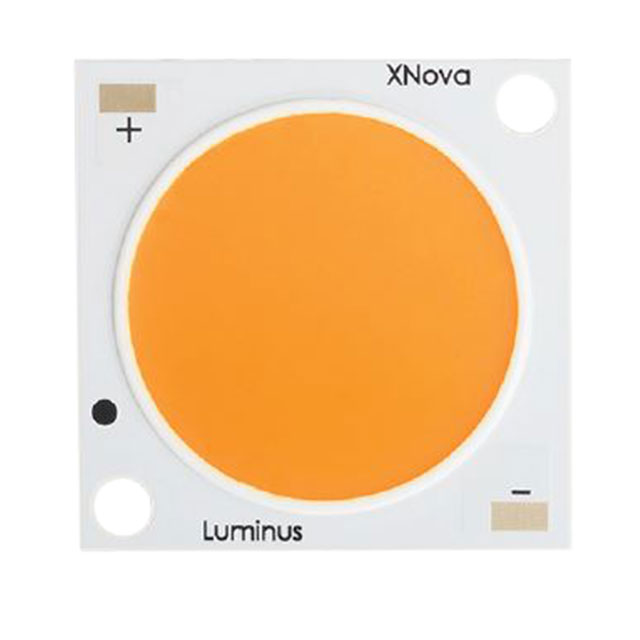

CLM-22-40-80-36-AC30-F4-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CLM-22 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6000 lm (Typ)
Current - Test : 1.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 161 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat

27 in stock
