Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.

Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of CHM-9-35-95-36-XH00-F2-3

CHM-9-35-95-36-XH00-F2-3 CHM-9-35-95-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1890 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-40-80-36-AC00-F2-3

CHM-9-40-80-36-AC00-F2-3 CHM-9-40-80-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1480 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-40-80-36-XH00-F2-3

CHM-9-40-80-36-XH00-F2-3 CHM-9-40-80-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2605 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-40-90-18-AC10-F3-3

CHM-9-40-90-18-AC10-F3-3 CHM-9-40-90-18-AC10-F3-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1610 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
1983 in stock
Picture of CHM-9-40-90-36-AC00-F2-3

CHM-9-40-90-36-AC00-F2-3 CHM-9-40-90-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1270 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-40-90-36-XH00-F2-3

CHM-9-40-90-36-XH00-F2-3 CHM-9-40-90-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2195 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 85 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 2.24mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
80 in stock
Picture of CHM-9-40-95-36-XH00-F2-3

CHM-9-40-95-36-XH00-F2-3 CHM-9-40-95-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1955 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-50-80-36-AC00-F2-3

CHM-9-50-80-36-AC00-F2-3 CHM-9-50-80-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1500 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-50-80-36-AC00-F2-5

CHM-9-50-80-36-AC00-F2-5 CHM-9-50-80-36-AC00-F2-5

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1500 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-50-80-36-XH00-F2-3

CHM-9-50-80-36-XH00-F2-3 CHM-9-50-80-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2690 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-50-80-36-XH00-F2-5

CHM-9-50-80-36-XH00-F2-5 CHM-9-50-80-36-XH00-F2-5

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2690 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

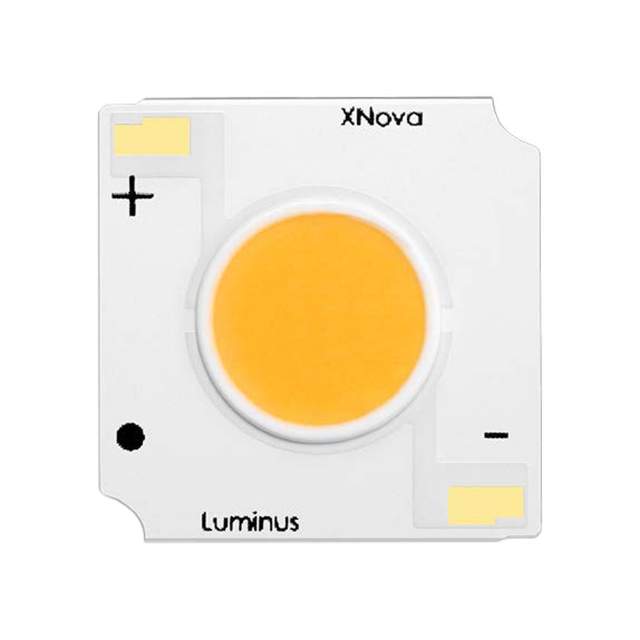

Picture of CHM-9-50-90-36-XH00-F2-3

CHM-9-50-90-36-XH00-F2-3 CHM-9-50-90-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2270 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 2.24mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
51 in stock
