Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CHM-27-50-70-36-AB00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11810 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-27-50-80-36-AB00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11430 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-27-50-80-36-AB00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11430 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-27-65-70-36-AB00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11760 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-27-65-70-36-AB00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11760 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-27-65-80-36-AB00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11200 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-27-65-80-36-AB00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-27
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 11200 lm (Typ)
Current - Test : 2.7A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 31.50mm L x 31.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 26.50mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-80-27-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1150 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27V
Lumens/Watt @ Current - Test : 89 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-80-27-XH20-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6 Gen2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1510 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27.4V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

2294 in stock

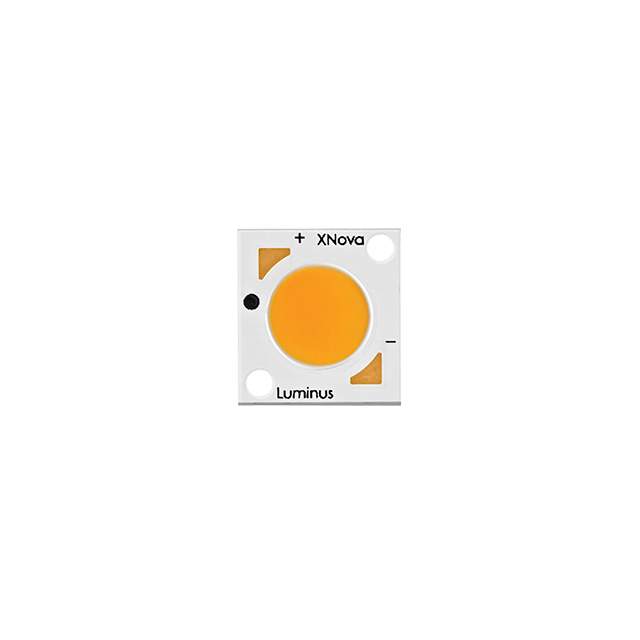

CHM-6-27-80-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 580 lm (Typ)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 320mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-80-9-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 580 lm (Typ)
Current - Test : 640mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.28A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-90-27-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 900 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock
