Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

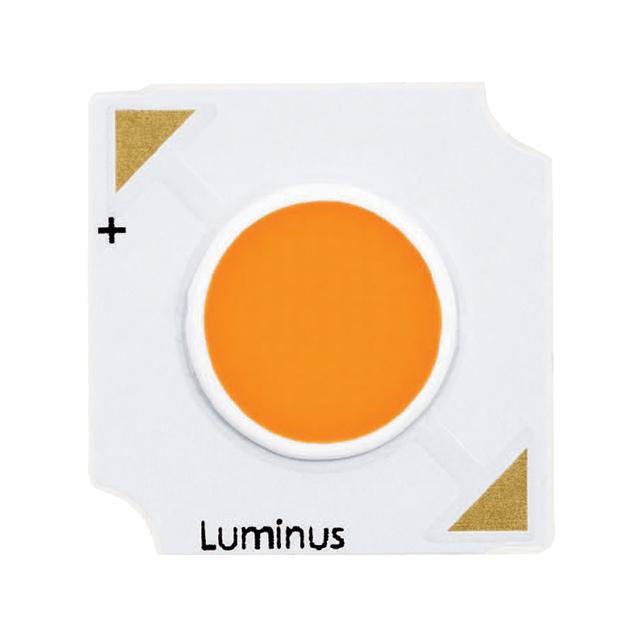

CHM-6-27-90-27-XH20-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6 Gen2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1175 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27.4V
Lumens/Watt @ Current - Test : 89 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

2288 in stock

CHM-6-27-90-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 450 lm (Typ)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 320mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-90-9-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 450 lm (Typ)
Current - Test : 640mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9V
Lumens/Watt @ Current - Test : 78 lm/W
Current - Max : 1.28A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-95-27-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 840 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27V
Lumens/Watt @ Current - Test : 65 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

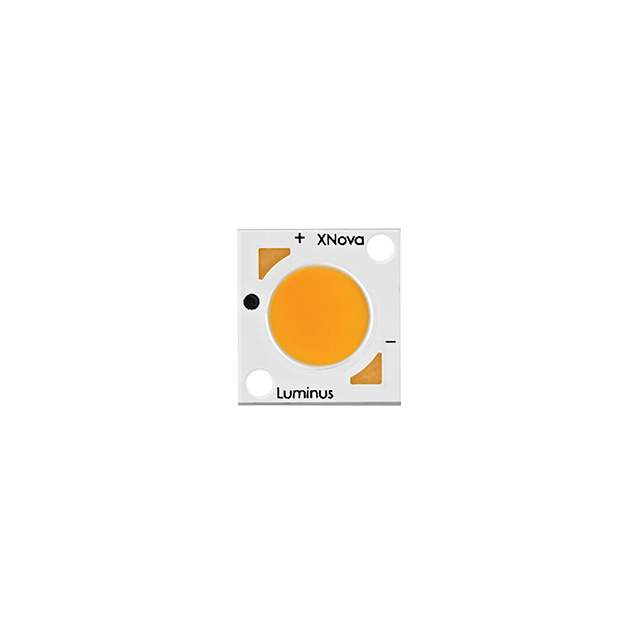

CHM-6-27-95-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 429 lm (Typ)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 77 lm/W
Current - Max : 320mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-27-95-9-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 429 lm (Typ)
Current - Test : 640mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 1.28A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-30-80-27-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1200 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-30-80-27-XH02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1140 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-30-80-27-XH20-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6 Gen2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1590 lm (Typ)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27.4V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

2298 in stock

CHM-6-30-80-36-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 615 lm (Typ)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 110 lm/W
Current - Max : 320mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-30-80-36-AA02-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 585 lm (Typ)
Current - Test : 160mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 360mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock

CHM-6-30-80-9-AA00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-6
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 615 lm (Typ)
Current - Test : 640mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 1.28A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.00mm L x 13.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 6.30mm Diameter
Lens Type : Flat

100 in stock
