Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

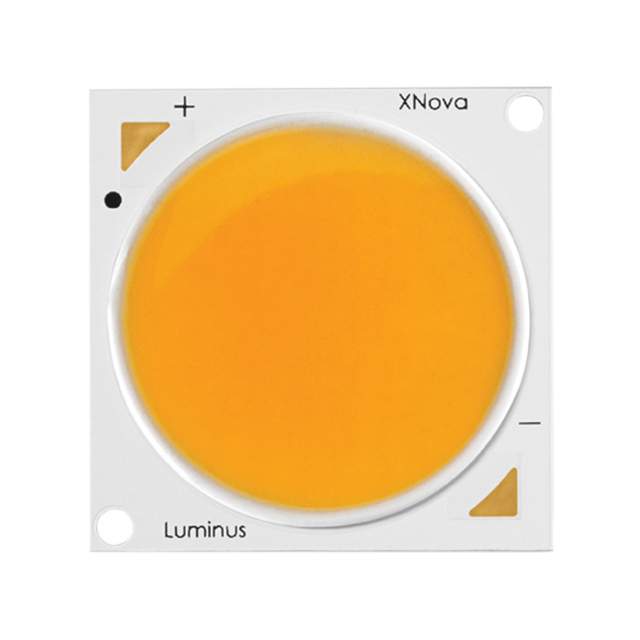

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6665 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8385 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 3.84A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7985 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6885 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8725 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 3.84A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8725 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 3.84A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8180 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8180 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8560 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 3.84A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8560 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 3.84A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8150 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-22
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8150 lm (Typ)
Current - Test : 1.92A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 22.80mm W
Height : 1.37mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
100 in stock
