Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.


Part Number

Manufacturer

Description

Unit Price

In Stock

CHM-14-50-80-36-XH20-F3-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14 Gen2
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8810 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.1V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 2.625A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-50-90-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5255 lm (Typ)
Current - Test : 1.68A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 2.52A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-50-90-36-XH00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5255 lm (Typ)
Current - Test : 1.68A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 2.52A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-50-90-36-XH20-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14 Gen2
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7045 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.1V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 2.625A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-50-90-36-XH20-F3-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14 Gen2
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7045 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.1V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 2.625A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

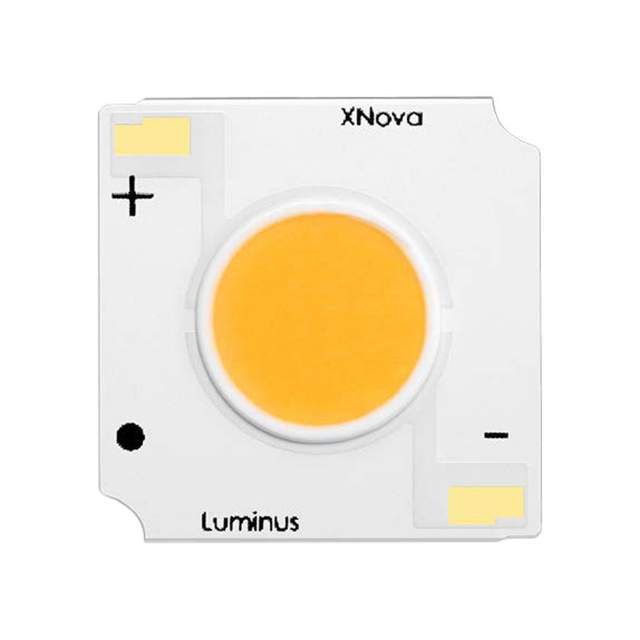

CHM-14-65-70-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3210 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-65-70-36-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3210 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-65-70-36-XH20-F3-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14 Gen2
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 9530 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.1V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 2.625A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-65-70-36-XH20-F3-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14 Gen2
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 9530 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.1V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 2.625A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-65-80-36-AC00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3160 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-65-80-36-AC00-F2-5

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3160 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock

CHM-14-65-80-36-XH00-F2-3

Luminus Devices

Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-14
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 6500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6540 lm (Typ)
Current - Test : 1.68A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 2.52A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 21.50mm L x 21.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 13.50mm Diameter
Lens Type : Flat

100 in stock
