Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

L2C5-30901204E13C0 L2C5-30901204E13C0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB, CrispWhite Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1579 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.3V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : -
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
89 in stock

L2C5-30901204E13CL L2C5-30901204E13CL

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : -
Current - Max : 900mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

L2C5-30901205E13B0 L2C5-30901205E13B0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

L2C5-30901205E13CL L2C5-30901205E13CL

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock

L2C5-30901205F1300 L2C5-30901205F1300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 4
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2708 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
95 in stock

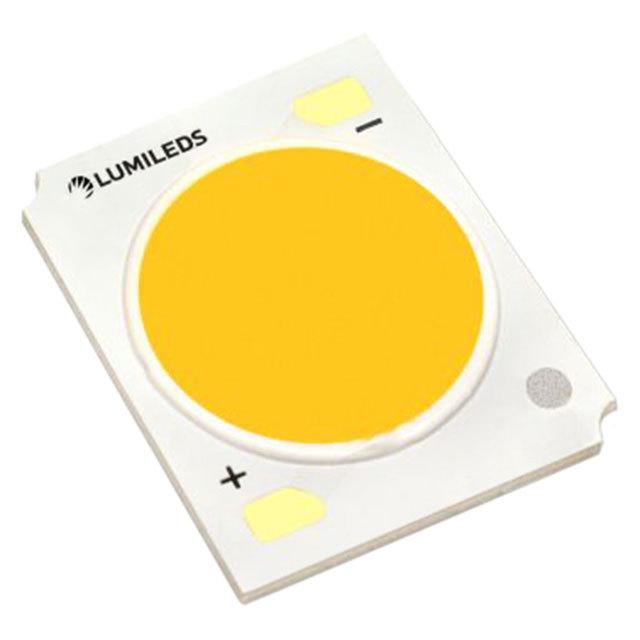

L2C5-30901208E1500 L2C5-30901208E1500

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3610 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
84 in stock

L2C5-30901208E15B0 L2C5-30901208E15B0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : -
Current - Max : 1.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
100 in stock

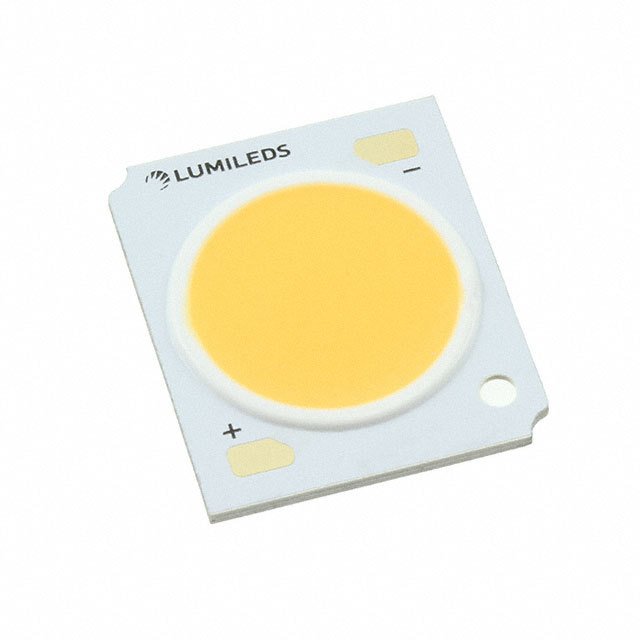

L2C5-30901208E15C0 L2C5-30901208E15C0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB, CrispWhite Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3056 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.1V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : -
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
63 in stock

L2C5-30901208E15CL L2C5-30901208E15CL

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : -
Current - Max : 1.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
100 in stock

L2C5-30901208F1500 L2C5-30901208F1500

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 4
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4043 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
91 in stock

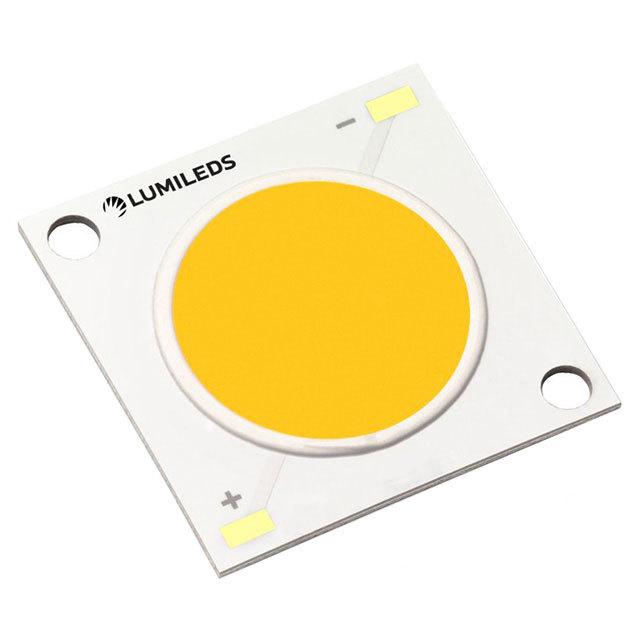

L2C5-30901211E1900 L2C5-30901211E1900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5005 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
48 in stock

L2C5-30901211E19B0 L2C5-30901211E19B0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : -
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : -
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
100 in stock
