Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

L2C5-30801208F1500 L2C5-30801208F1500

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 4
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4717 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 151 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
95 in stock

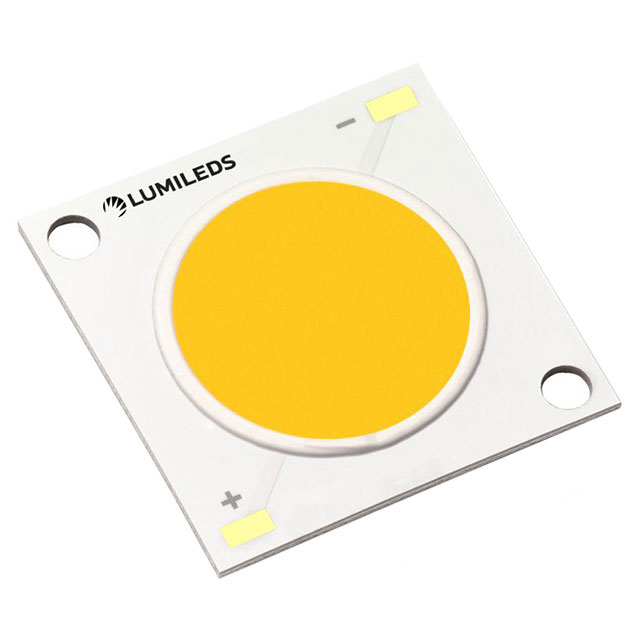

L2C5-30801211E1900 L2C5-30801211E1900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5920 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 142 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
532 in stock

L2C5-30801211F1900 L2C5-30801211F1900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 4
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6305 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 151 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
43 in stock

L2C5-30801812G2300 L2C5-30801812G2300

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8536 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 51.7V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 23.00mm Diameter
Lens Type : Flat
0
50 in stock

L2C5-30901202E0600 L2C5-30901202E0600

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 766 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
100 in stock

L2C5-30901202E06C0 L2C5-30901202E06C0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB, CrispWhite Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 651 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : -
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
140 in stock

L2C5-30901202E09B0 L2C5-30901202E09B0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : -
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

L2C5-30901203E09B0 L2C5-30901203E09B0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : -
Current - Max : 600mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

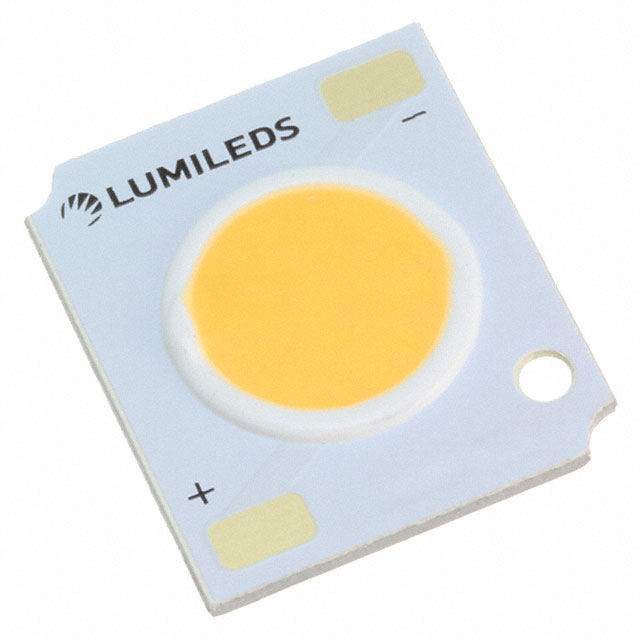

L2C5-30901203E09C0 L2C5-30901203E09C0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB, CrispWhite Gen 2
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1006 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : -
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
121 in stock

L2C5-30901203E09CL L2C5-30901203E09CL

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : -
Current - Max : 600mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

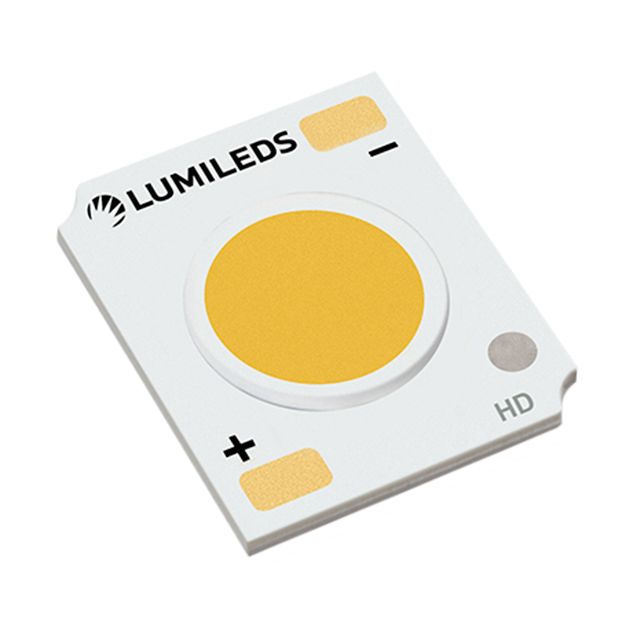

L2C5-30901204E0900 L2C5-30901204E0900

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2378 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 1.35A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
119 in stock

L2C5-30901204E13B0 L2C5-30901204E13B0

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : -
Current - Max : 900mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
100 in stock
