- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.
Part Number
Manufacturer
Description
Unit Price
In Stock

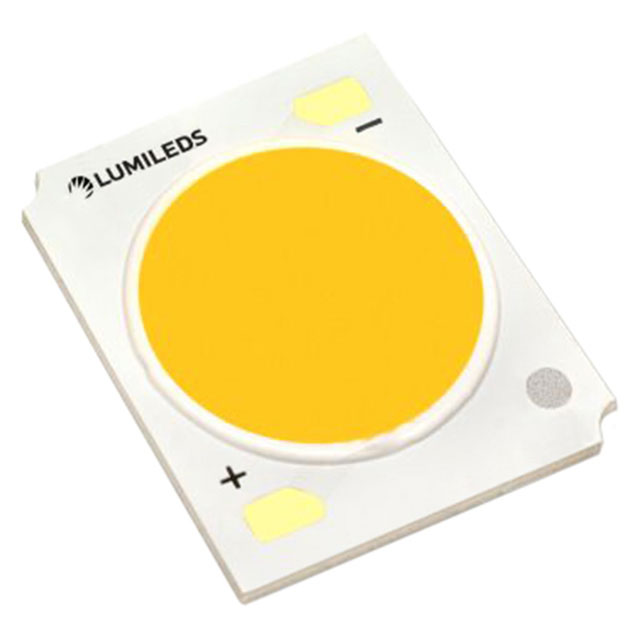

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2320 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 1.35A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
82 in stock

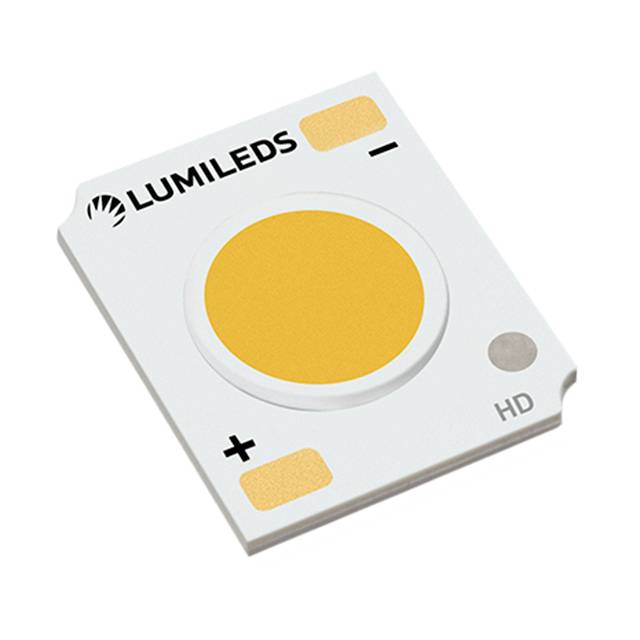

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1788 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
598 in stock

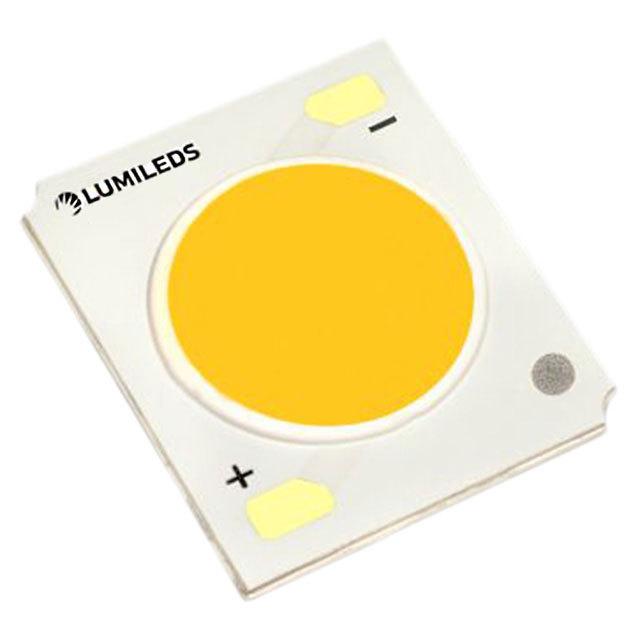

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2322 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
96 in stock

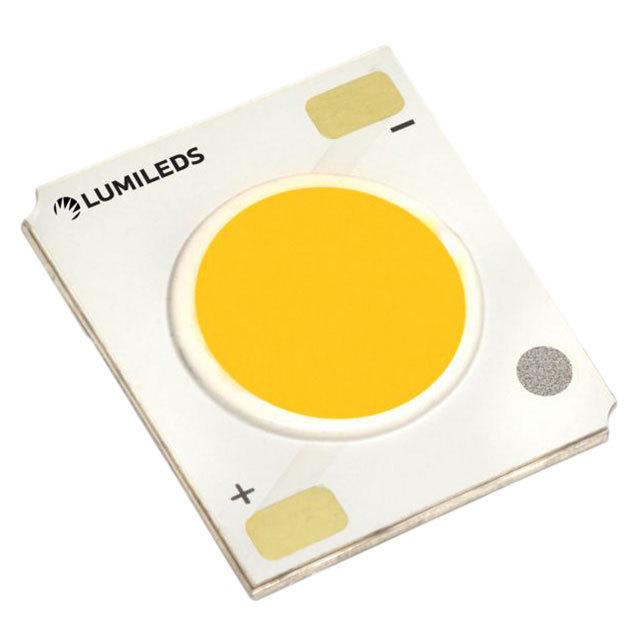

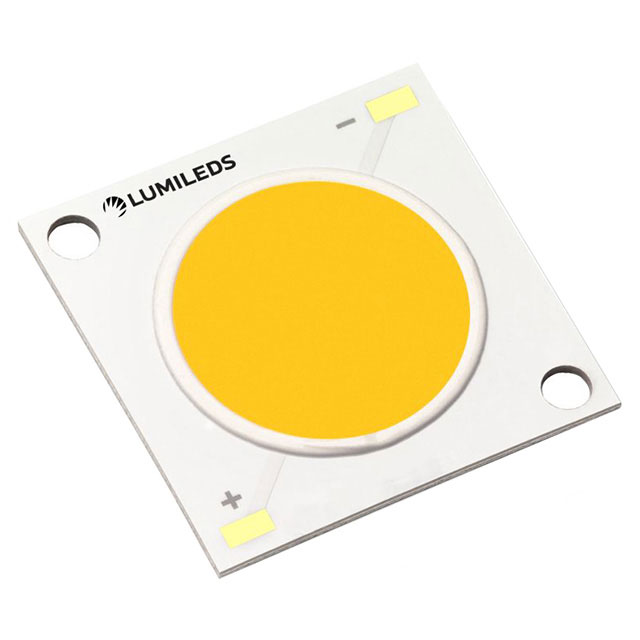

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4783 lm (Typ)
Current - Test : 1.2A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 18.50mm Diameter
Lens Type : Flat
0
530 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 930 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 973 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
94 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1450 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
200 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1432 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
585 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3750 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 1.65A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
97 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2905 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
455 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 4
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3137 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 149 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
95 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4368 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 15.00mm Diameter
Lens Type : Flat
0
483 in stock
