Lumileds
- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.
Part Number
Manufacturer
Description
Unit Price
In Stock
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON V
Part Status : Active
Color : White, Cool
CCT (K) : 6500K
Flux @ 85°C, Current - Test : 580 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 1.4A
Voltage - Forward (Vf) (Typ) : 2.925V
Lumens/Watt @ Current - Test : 142 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 4.8A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1616 (4040 Metric)
Supplier Device Package : 2-CSP
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.110" (2.80mm)
0
618 in stock

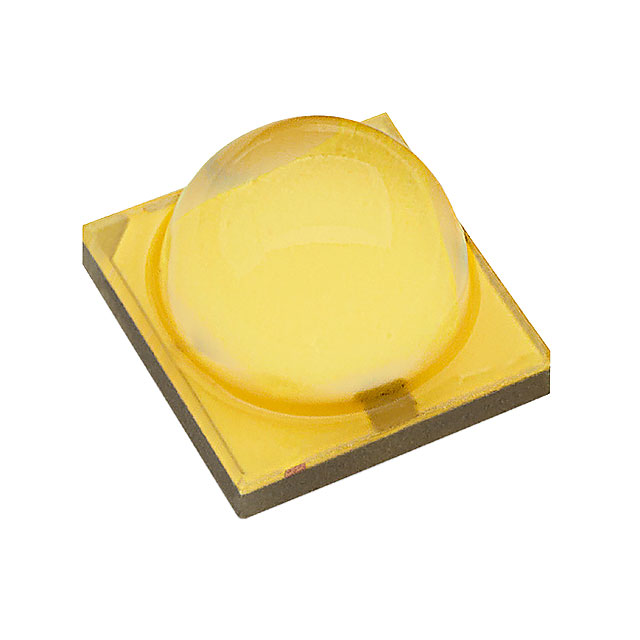

Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON V2
Part Status : Active
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : 315 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.83V
Lumens/Watt @ Current - Test : 159 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 2.4A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) : 2.385" (60.58mm)
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON V2
Part Status : Active
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : 315 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.83V
Lumens/Watt @ Current - Test : 159 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 2.4A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) : 2.385" (60.58mm)
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON V2
Part Status : Active
Color : White, Cool
CCT (K) : 5700K
Flux @ 85°C, Current - Test : 315 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.83V
Lumens/Watt @ Current - Test : 159 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 2.4A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) : 2.385" (60.58mm)
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON V2
Part Status : Active
Color : White, Cool
CCT (K) : 6500K
Flux @ 85°C, Current - Test : 310 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.83V
Lumens/Watt @ Current - Test : 156 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 2.4A
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) : 2.385" (60.58mm)
0
100 in stock

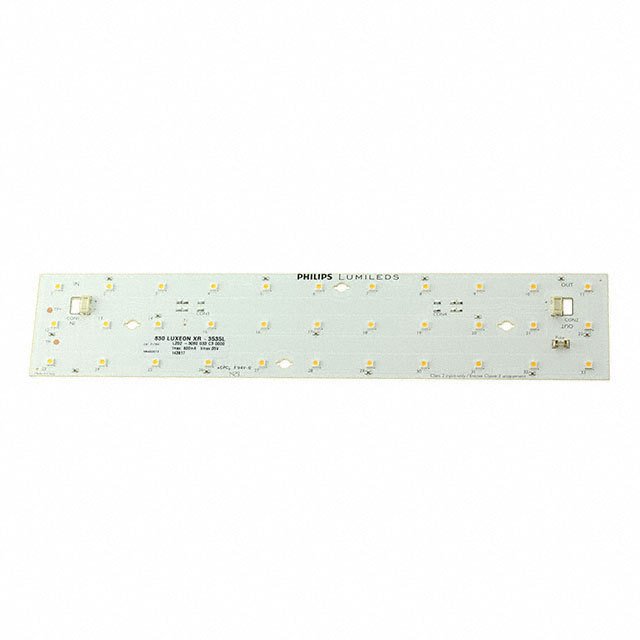

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3535L
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1362 lm (1320 lm ~ 1403 lm)
Current - Test : 300mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 33V
Lumens/Watt @ Current - Test : 142 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 280.00mm L x 55.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
36 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3535L
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1403 lm (Typ)
Current - Test : 300mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 33V
Lumens/Watt @ Current - Test : 142 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 280.00mm L x 55.00mm W
Height : 1.20mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
21 in stock

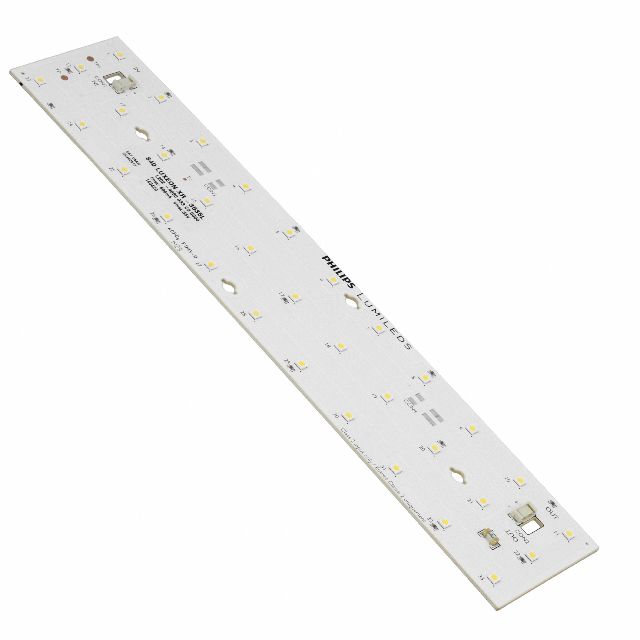

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3535L
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1461 lm (1419 lm ~ 1502 lm)
Current - Test : 300mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 33V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 280.00mm L x 55.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
31 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3535L
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1502 lm (Typ)
Current - Test : 300mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 33V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 280.00mm L x 55.00mm W
Height : 1.20mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
43 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3535L
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1502 lm (Typ)
Current - Test : 300mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 33V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 280.00mm L x 55.00mm W
Height : 1.20mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
18 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3020
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1050 lm (Typ)
Current - Test : 200mA
Temperature - Test : 45°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 151 lm/W
Current - Max : 480mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 279.20mm L x 20.00mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
914 in stock

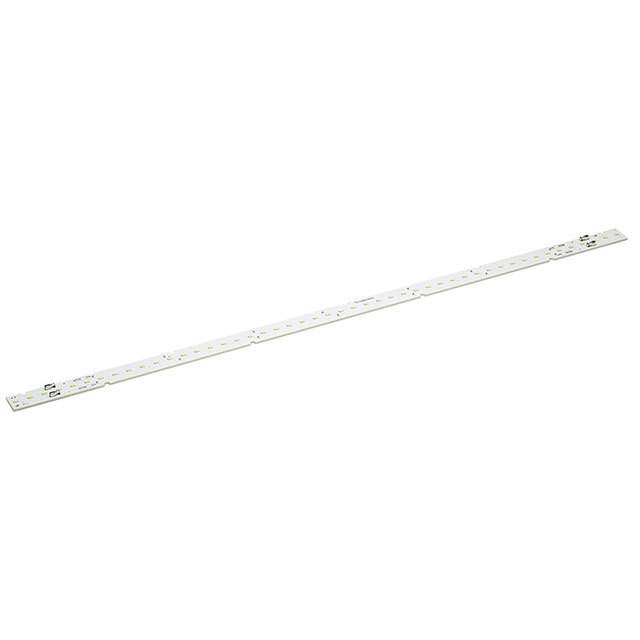

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON XR-3020
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2100 lm (Typ)
Current - Test : 400mA
Temperature - Test : 45°C
Voltage - Forward (Vf) (Typ) : 34.8V
Lumens/Watt @ Current - Test : 151 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 558.40mm L x 20.00mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
453 in stock
