Central Semiconductor

- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.


Part Number

Manufacturer

Description

Unit Price

In Stock

CMLSH-4DO TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 200mA
Speed : Small Signal =

5ns

500nA @ 25V

-65°C ~ 150°C

Surface Mount

SOT-563, SOT-666

SOT-563
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 500nA @ 25V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

5630 in stock

CMLT2222AG BK

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 350mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

100 in stock

CMLT2222AG TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

2977 in stock

CMLT2907A BK

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 350mW
Frequency - Transition : 200MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

100 in stock

CMLT2907A TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 350mW
Frequency - Transition : 200MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

5100 in stock

CMLT3820G TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 500mA, 5V
Power - Max : 250mW
Frequency - Transition : 150MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

19275 in stock

CMLT3904E TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 100mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 100mA, 1V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

4601 in stock

CMLT3904EG TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 100mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 100mA, 1V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

4995 in stock

CMLT3906E TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 10mA, 1V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

4782000 in stock

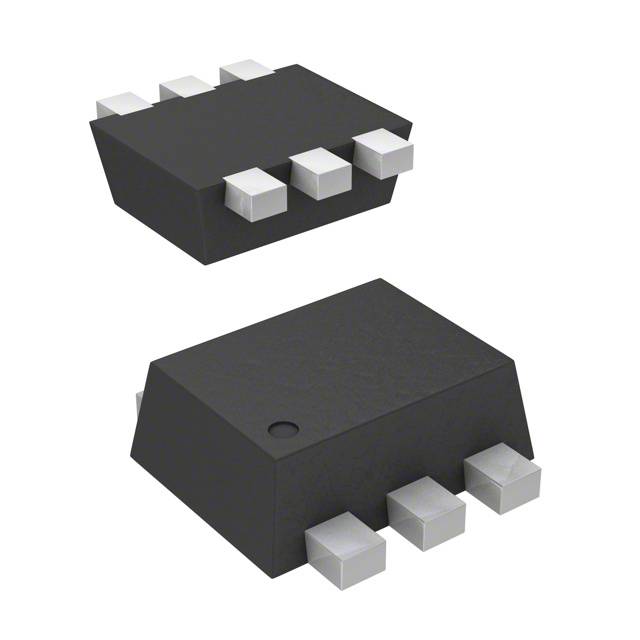

CMLT3906EG TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 10mA, 1V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

10542 in stock

CMLT3946EG TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 100mV @ 5mA, 50mA / 200mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 100mA, 1V / 150 @ 10mA, 1V
Power - Max : 150mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

38639 in stock

CMLT5087E TR

Central Semiconductor

Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 PNP (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 400mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100µA, 5V
Power - Max : 350mW
Frequency - Transition : 100MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563

1219 in stock
