Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 50mA
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 400 @ 100µA, 5V
Power - Max : 350mW
Frequency - Transition : 50MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
3008 in stock

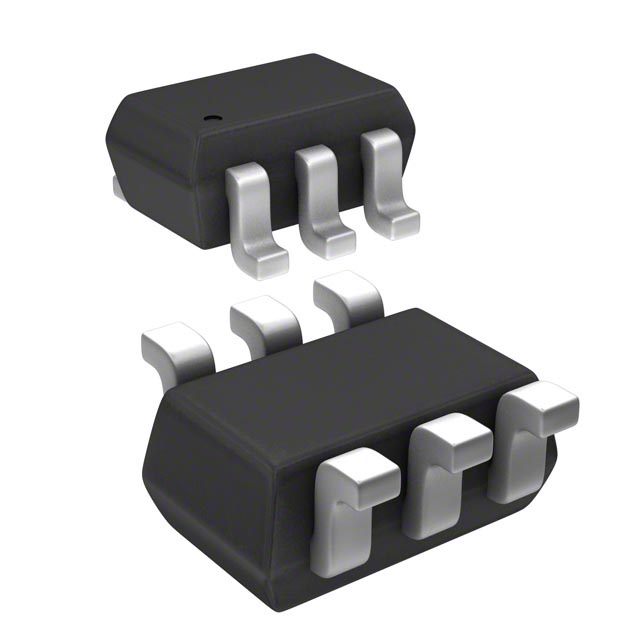

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Steering (Rail to Rail)
Unidirectional Channels : 4
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 23V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : -
Power Line Protection : Yes
Applications : Ethernet, HDMI
Capacitance @ Frequency : 3pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
4881 in stock

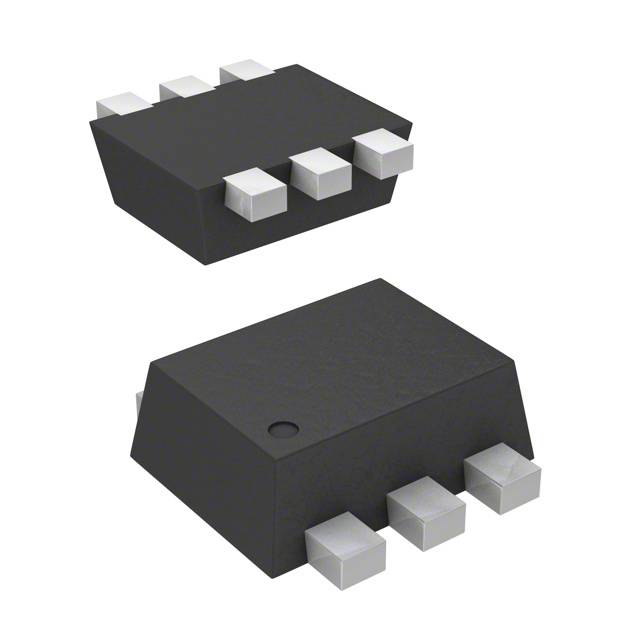

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 240V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
50ns
100nA @ 240V
-65°C ~ 150°C
Surface Mount
SOT-563, SOT-666
SOT-563
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 240V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2158 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 240V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
50ns
100nA @ 240V
-65°C ~ 150°C
Surface Mount
SOT-563, SOT-666
SOT-563
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 240V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
8990 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 250mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 40ns
Current - Reverse Leakage @ Vr : 500nA @ 100V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2210 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) (per Diode) : 250mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 3µs
Current - Reverse Leakage @ Vr : 500pA @ 75V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
6501 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 2 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) (per Diode) : 15mA (DC)
Voltage - Forward (Vf) (Max) @ If : 410mV @ 1mA
Speed : Small Signal =
5ns
200nA @ 50V
-65°C ~ 150°C
Surface Mount
SOT-563, SOT-666
SOT-563
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 200nA @ 50V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
4905 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 540mA
Rds On (Max) @ Id, Vgs : 550 mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2195 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 540mA, 430mA
Rds On (Max) @ Id, Vgs : 550 mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
7301 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 430mA
Rds On (Max) @ Id, Vgs : 900 mOhm @ 430mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 175pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2935 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.59nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
290 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.59nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
1873 in stock
