Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock

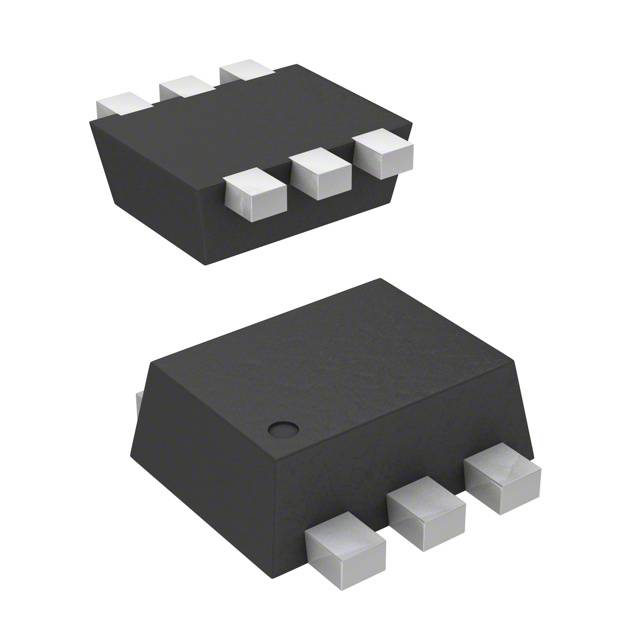

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 2 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.76nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
5285 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 2 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.76nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2990 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 1.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.76nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2889 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 1.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.76nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
919 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4V
Rds On (Max) @ Id, Vgs : 100 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 2.4nC @ 4.5V
Vgs (Max) : 8V
Input Capacitance (Ciss) (Max) @ Vds : 220pF @ 10V
FET Feature : -
Power Dissipation (Max) : 150mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-563
Package / Case : SOT-563, SOT-666
0
2371 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 450mA
Rds On (Max) @ Id, Vgs : 460 mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.79nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 45pF @ 25V
Power - Max : 150mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
384000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 650mA
Rds On (Max) @ Id, Vgs : 230 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 100pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
7615 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 2.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.72nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 70pF @ 25V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2581 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 650mA
Rds On (Max) @ Id, Vgs : 360 mOhm @ 350mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 100pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2583 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.56nC @ 4.5V
Vgs (Max) : 8V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 16V
FET Feature : -
Power Dissipation (Max) : 150mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-563
Package / Case : SOT-563, SOT-666
0
2986 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.56nC @ 4.5V
Vgs (Max) : 8V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 16V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-563
Package / Case : SOT-563, SOT-666
0
3925 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 500mA
Voltage - Forward (Vf) (Max) @ If : 850mV @ 500mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 100V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
10531 in stock
