API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
M27/370-25
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±15%
Current Rating : 1.3A
Current - Saturation : 640mA
Shielding : Unshielded
DC Resistance (DCR) : 208 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±15%
Current Rating : 1.3A
Current - Saturation : 640mA
Shielding : Unshielded
DC Resistance (DCR) : 208 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
942 in stock
M27/370-32
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±15%
Current Rating : 680mA
Current - Saturation : 320mA
Shielding : Unshielded
DC Resistance (DCR) : 770 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±15%
Current Rating : 680mA
Current - Saturation : 320mA
Shielding : Unshielded
DC Resistance (DCR) : 770 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
945 in stock
M27/370-39
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±15%
Current Rating : 340mA
Current - Saturation : 160mA
Shielding : Unshielded
DC Resistance (DCR) : 3 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±15%
Current Rating : 340mA
Current - Saturation : 160mA
Shielding : Unshielded
DC Resistance (DCR) : 3 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
18 in stock

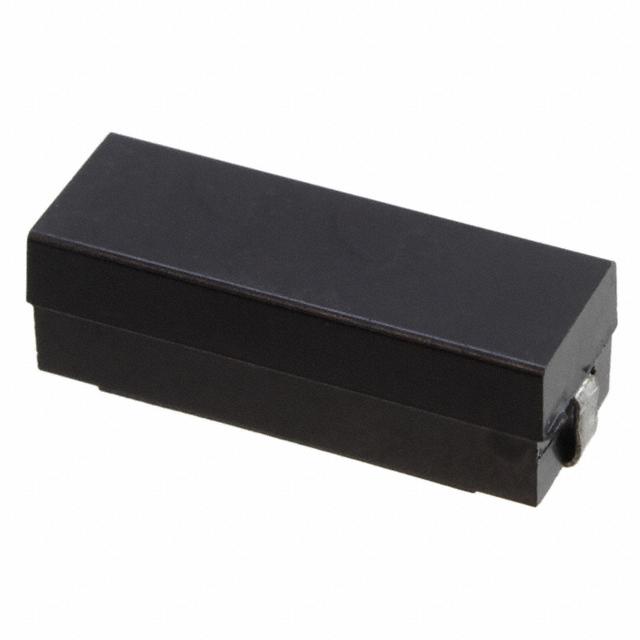

M27/370-49
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10mH
Tolerance : ±15%
Current Rating : 120mA
Current - Saturation : 60mA
Shielding : Unshielded
DC Resistance (DCR) : 23.4 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-27/370, MIL8532
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10mH
Tolerance : ±15%
Current Rating : 120mA
Current - Saturation : 60mA
Shielding : Unshielded
DC Resistance (DCR) : 23.4 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max) : 0.286" (7.26mm)
0
908 in stock

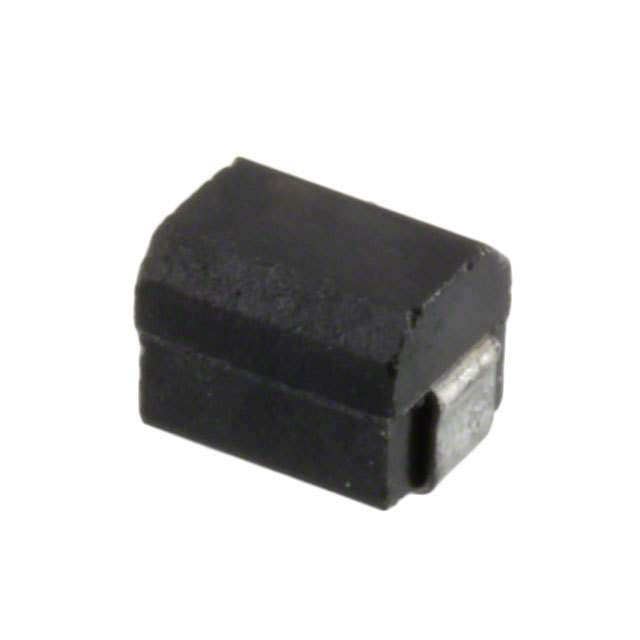

M83446/39-01F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 10nH
Tolerance : ±20%
Current Rating : 1.23A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 40 @ 50MHz
Frequency - Self Resonant : 1GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 10nH
Tolerance : ±20%
Current Rating : 1.23A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 40 @ 50MHz
Frequency - Self Resonant : 1GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
110 in stock
M83446/39-25F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±5%
Current Rating : 634mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 100MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±5%
Current Rating : 634mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 100MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
477 in stock
M83446/39-26F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±5%
Current Rating : 604mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±5%
Current Rating : 604mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
905 in stock
M83446/39-29F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±5%
Current Rating : 535mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 700 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±5%
Current Rating : 535mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 700 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
407 in stock
M83446/39-30F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±5%
Current Rating : 517mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±5%
Current Rating : 517mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
489 in stock
M83446/39-33F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±5%
Current Rating : 448mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 35MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±5%
Current Rating : 448mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 35MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
365 in stock
M83446/39-34F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±5%
Current Rating : 427mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 33MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±5%
Current Rating : 427mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 33MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
974 in stock
M83446/39-35F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±5%
Current Rating : 409mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.2 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 27MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±5%
Current Rating : 409mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.2 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 27MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
