API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
API Delevan
Manufacturer : API Delevan Inc.
Series : FFAM
Part Status : Active
Type : Flexible Ferrite Sheet
Shape : Square
Length : 11.811" (300.00mm)
Width : 11.811" (300.00mm)
Thickness - Overall : 0.098" (2.50mm)
Operating Temperature : -55°C ~ 125°C
Adhesive : Non-Conductive, Double Sided
Material : Ferrite Powder
0
100 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : FFAM
Part Status : Active
Type : Flexible Ferrite Sheet
Shape : Square
Length : 15.748" (400.00mm)
Width : 15.748" (400.00mm)
Thickness - Overall : 0.098" (2.50mm)
Operating Temperature : -55°C ~ 125°C
Adhesive : -
Material : Ferrite Powder
0
100 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : FFAM
Part Status : Active
Type : Flexible Ferrite Sheet
Shape : Square
Length : 15.748" (400.00mm)
Width : 15.748" (400.00mm)
Thickness - Overall : 0.098" (2.50mm)
Operating Temperature : -55°C ~ 125°C
Adhesive : Non-Conductive, Single Sided
Material : Ferrite Powder
0
100 in stock
API Delevan
Manufacturer : API Delevan Inc.
Series : FFAM
Part Status : Active
Type : Flexible Ferrite Sheet
Shape : Square
Length : 15.748" (400.00mm)
Width : 15.748" (400.00mm)
Thickness - Overall : 0.098" (2.50mm)
Operating Temperature : -55°C ~ 125°C
Adhesive : Non-Conductive, Double Sided
Material : Ferrite Powder
0
100 in stock

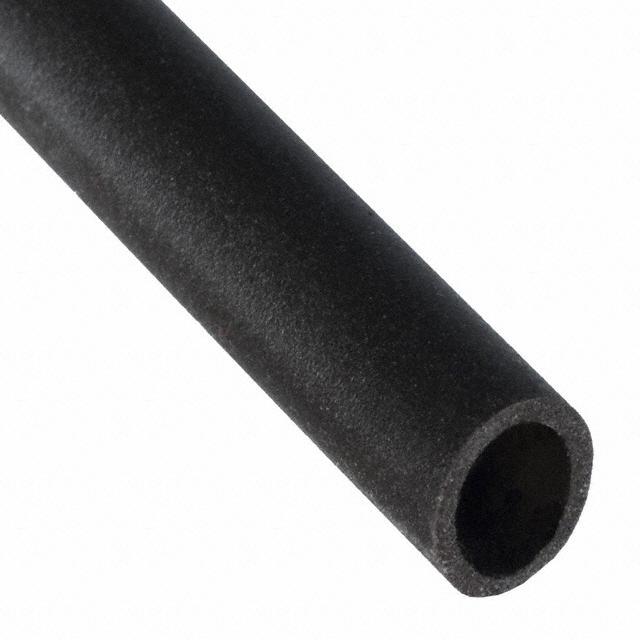

API Delevan
Manufacturer : API Delevan Inc.
Series : FFAT
Part Status : Active
Type : Round
Design : Tubular
Impedance @ Frequency : 137 Ohm @ 100MHz
Material : -
Inner Dimension : 0.276" Dia (7.00mm)
Outer Dimension : 0.430" Dia (11.00mm)
Ratings : -
Mounting Type : Free Hanging
Length : 3.281' (1.00m)
0
57 in stock

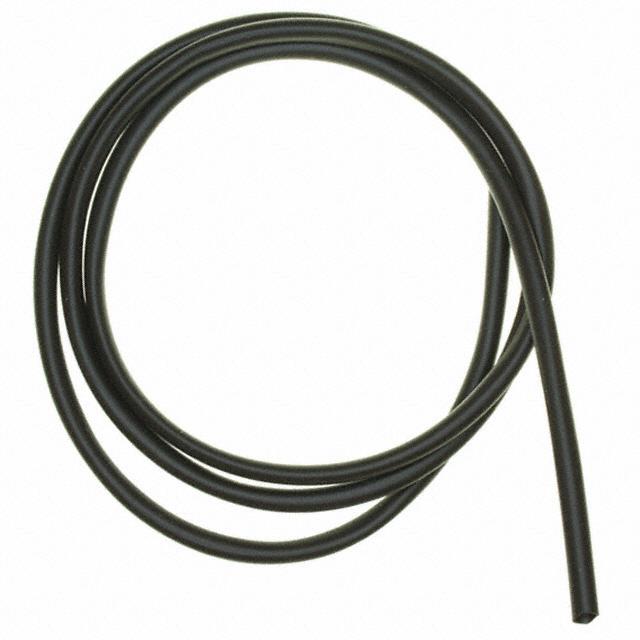

API Delevan
Manufacturer : API Delevan Inc.
Series : FFAT
Part Status : Active
Type : Round
Design : Tubular
Impedance @ Frequency : 140 Ohm @ 100MHz
Material : -
Inner Dimension : 0.071" Dia (1.80mm)
Outer Dimension : 0.116" Dia (2.90mm)
Ratings : -
Mounting Type : Free Hanging
Length : 3.281' (1.00m)
0
518 in stock

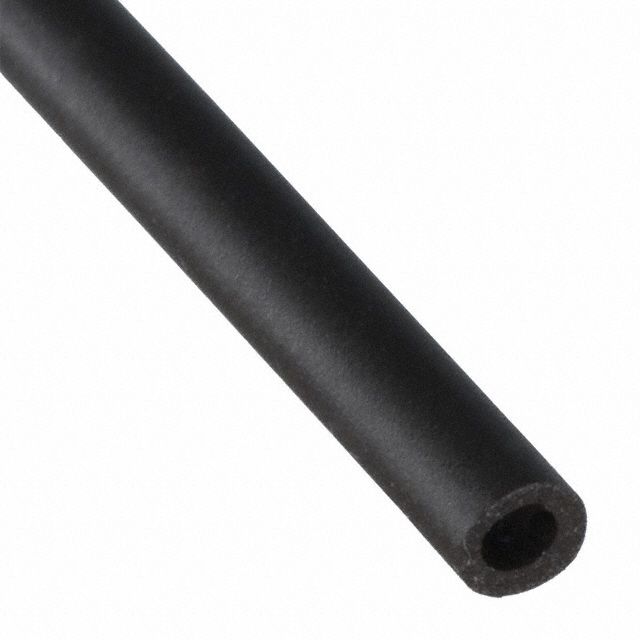

API Delevan
Manufacturer : API Delevan Inc.
Series : FFAT
Part Status : Active
Type : Round
Design : Tubular
Impedance @ Frequency : 138 Ohm @ 100MHz
Material : -
Inner Dimension : 0.157" Dia (4.00mm)
Outer Dimension : 0.197" Dia (5.00mm)
Ratings : -
Mounting Type : Free Hanging
Length : 3.281' (1.00m)
0
926 in stock

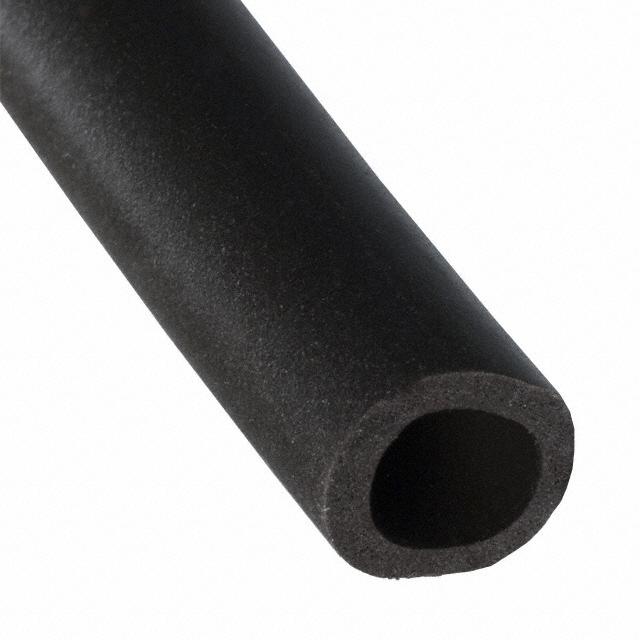

API Delevan
Manufacturer : API Delevan Inc.
Series : FFAT
Part Status : Active
Type : Round
Design : Tubular
Impedance @ Frequency : -
Material : -
Inner Dimension : 0.197" Dia (5.00mm)
Outer Dimension : 0.255" Dia (6.50mm)
Ratings : -
Mounting Type : Free Hanging
Length : 3.281' (1.00m)
0
35 in stock

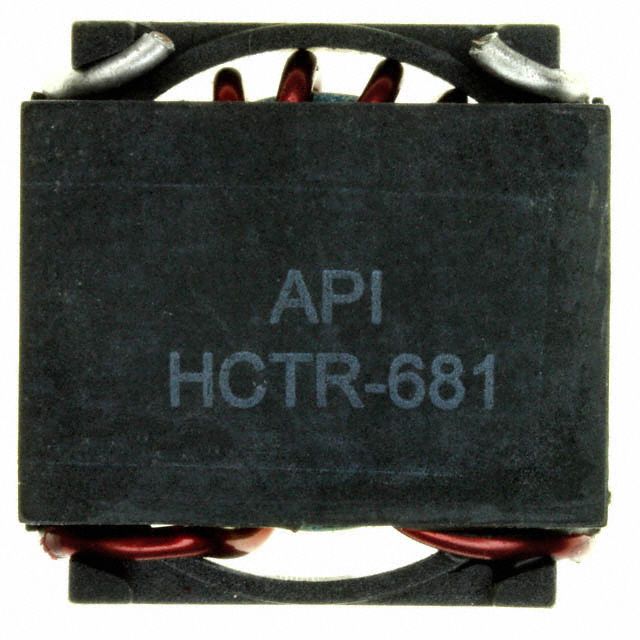

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : HCTR
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 5.7µH
Tolerance : ±25%
Current Rating : 10.9A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 7.5 mOhm Max
Q @ Freq : 29 @ 100kHz
Frequency - Self Resonant : 65MHz
Ratings : -
Operating Temperature : -30°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.665" L x 0.665" W (16.89mm x 16.89mm)
Height - Seated (Max) : 0.400" (10.16mm)
0
951 in stock

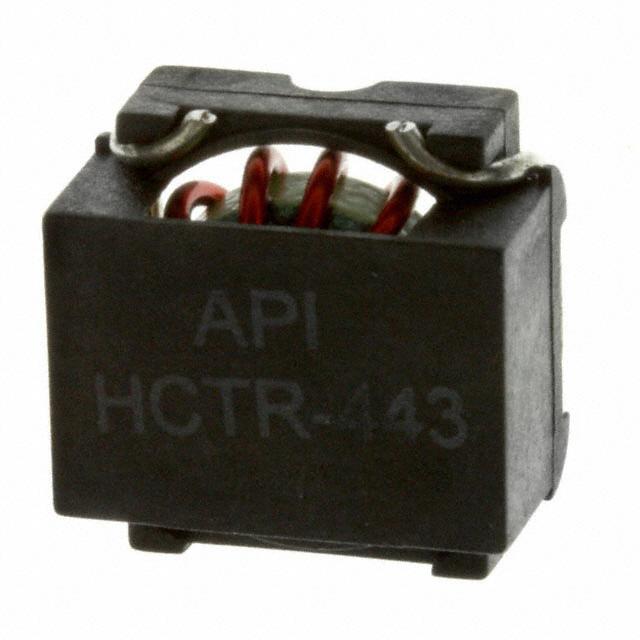

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : HCTR
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 10.5µH
Tolerance : ±25%
Current Rating : 13.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 6.2 mOhm Max
Q @ Freq : 35 @ 100kHz
Frequency - Self Resonant : 30MHz
Ratings : -
Operating Temperature : -30°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.945" L x 0.940" W (24.00mm x 23.88mm)
Height - Seated (Max) : 0.400" (10.16mm)
0
380 in stock

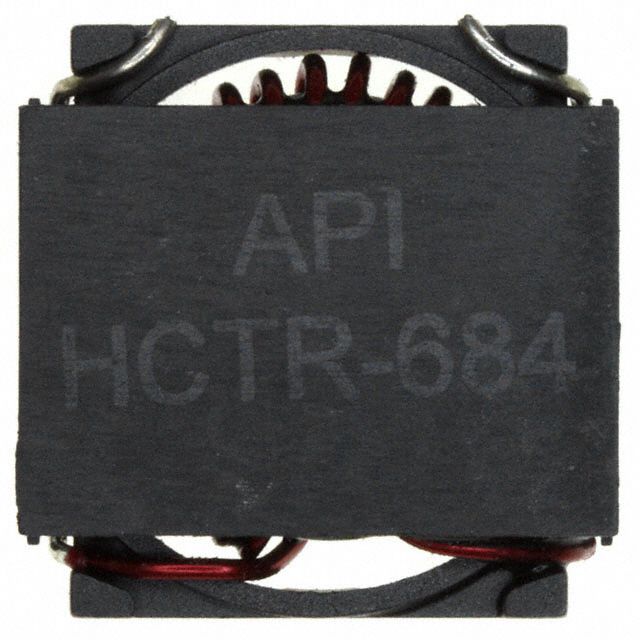

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : HCTR
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 29µH
Tolerance : ±25%
Current Rating : 6.57A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : 30 @ 100kHz
Frequency - Self Resonant : 16MHz
Ratings : -
Operating Temperature : -30°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.945" L x 0.940" W (24.00mm x 23.88mm)
Height - Seated (Max) : 0.400" (10.16mm)
0
1420 in stock

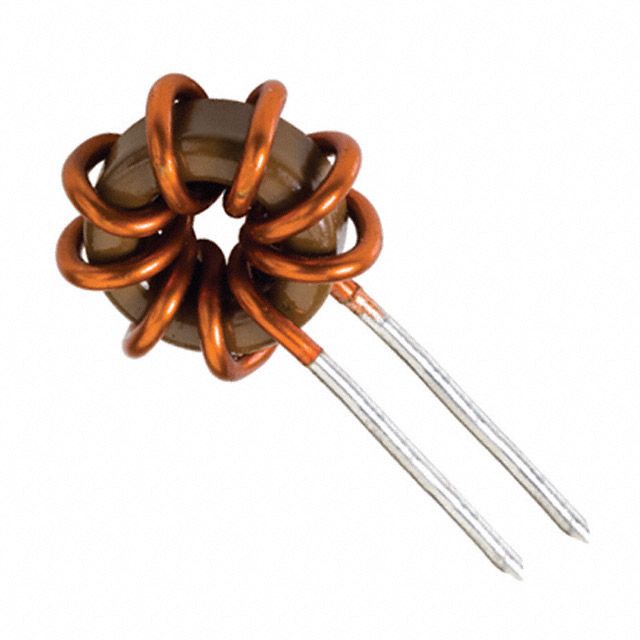

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : HTPT66R
Part Status : Active
Type : Toroidal
Material - Core : Iron
Inductance : 100µH
Tolerance : ±10%
Current Rating : 1.9A
Current - Saturation : 1.8A
Shielding : Shielded
DC Resistance (DCR) : 145 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 200°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
Height - Seated (Max) : -
0
259 in stock
