API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
M83446/39-37F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±5%
Current Rating : 354mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 20MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±5%
Current Rating : 354mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 20MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
752 in stock
M83446/39-39F
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±5%
Current Rating : 283mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±5%
Current Rating : 283mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
816 in stock

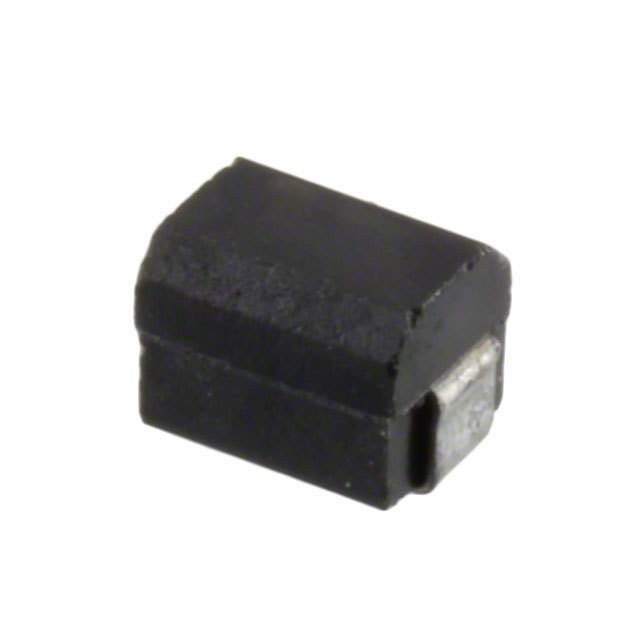

MIL1812-821K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 820nH
Tolerance : ±10%
Current Rating : 354mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-39010, M83446/39
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 820nH
Tolerance : ±10%
Current Rating : 354mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock

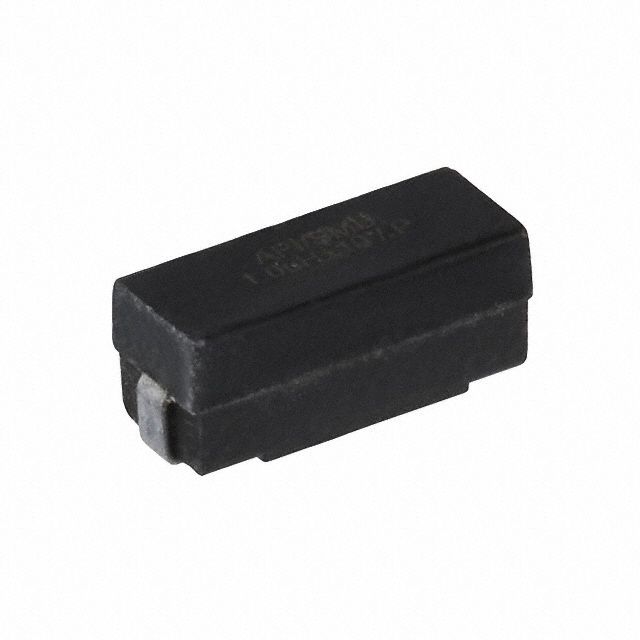

P1330R-102K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 2.78A
Current - Saturation : 1.526A
Shielding : Unshielded
DC Resistance (DCR) : 35 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 2.78A
Current - Saturation : 1.526A
Shielding : Unshielded
DC Resistance (DCR) : 35 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
721 in stock
P1330R-103K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 946mA
Current - Saturation : 564mA
Shielding : Unshielded
DC Resistance (DCR) : 216 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 946mA
Current - Saturation : 564mA
Shielding : Unshielded
DC Resistance (DCR) : 216 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
100 in stock
P1330R-104K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 347mA
Current - Saturation : 132mA
Shielding : Unshielded
DC Resistance (DCR) : 1.68 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 347mA
Current - Saturation : 132mA
Shielding : Unshielded
DC Resistance (DCR) : 1.68 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
224 in stock

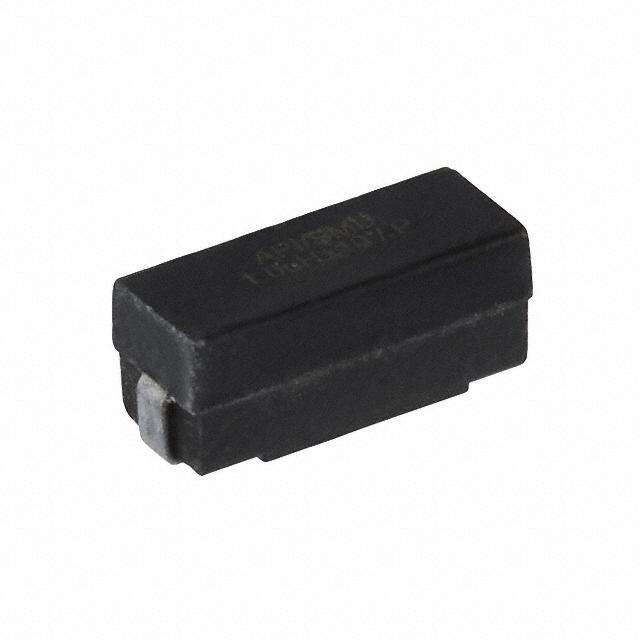

P1330R-105K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 105mA
Current - Saturation : 22mA
Shielding : Unshielded
DC Resistance (DCR) : 11.16 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 105mA
Current - Saturation : 22mA
Shielding : Unshielded
DC Resistance (DCR) : 11.16 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
158 in stock
P1330R-154K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 272mA
Current - Saturation : 106mA
Shielding : Unshielded
DC Resistance (DCR) : 2.04 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 272mA
Current - Saturation : 106mA
Shielding : Unshielded
DC Resistance (DCR) : 2.04 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
279 in stock
P1330R-182K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±10%
Current Rating : 1.95A
Current - Saturation : 1.18A
Shielding : Unshielded
DC Resistance (DCR) : 48 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±10%
Current Rating : 1.95A
Current - Saturation : 1.18A
Shielding : Unshielded
DC Resistance (DCR) : 48 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
100 in stock
P1330R-222K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 1.69A
Current - Saturation : 1.104A
Shielding : Unshielded
DC Resistance (DCR) : 75 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 1.69A
Current - Saturation : 1.104A
Shielding : Unshielded
DC Resistance (DCR) : 75 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
100 in stock
P1330R-223K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 694mA
Current - Saturation : 348mA
Shielding : Unshielded
DC Resistance (DCR) : 384 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 694mA
Current - Saturation : 348mA
Shielding : Unshielded
DC Resistance (DCR) : 384 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
380 in stock
P1330R-334K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 179mA
Current - Saturation : 57mA
Shielding : Unshielded
DC Resistance (DCR) : 4.8 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P1330R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 179mA
Current - Saturation : 57mA
Shielding : Unshielded
DC Resistance (DCR) : 4.8 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.313" L x 0.115" W (7.94mm x 2.92mm)
Height - Seated (Max) : 0.145" (3.68mm)
0
500 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
