API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
5500R-226K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22mH
Tolerance : ±10%
Current Rating : 230mA
Current - Saturation : 120mA
Shielding : Unshielded
DC Resistance (DCR) : 18 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22mH
Tolerance : ±10%
Current Rating : 230mA
Current - Saturation : 120mA
Shielding : Unshielded
DC Resistance (DCR) : 18 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
46 in stock
5500R-274K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 270µH
Tolerance : ±10%
Current Rating : 2.1A
Current - Saturation : 1.07A
Shielding : Unshielded
DC Resistance (DCR) : 226 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 270µH
Tolerance : ±10%
Current Rating : 2.1A
Current - Saturation : 1.07A
Shielding : Unshielded
DC Resistance (DCR) : 226 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
38 in stock
5500R-275K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 2.7mH
Tolerance : ±10%
Current Rating : 680mA
Current - Saturation : 320mA
Shielding : Unshielded
DC Resistance (DCR) : 2.13 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 2.7mH
Tolerance : ±10%
Current Rating : 680mA
Current - Saturation : 320mA
Shielding : Unshielded
DC Resistance (DCR) : 2.13 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
48 in stock
5500R-276K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 27mH
Tolerance : ±10%
Current Rating : 210mA
Current - Saturation : 100mA
Shielding : Unshielded
DC Resistance (DCR) : 22.7 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 27mH
Tolerance : ±10%
Current Rating : 210mA
Current - Saturation : 100mA
Shielding : Unshielded
DC Resistance (DCR) : 22.7 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
26 in stock
5500R-333K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 5.96A
Current - Saturation : 3.04A
Shielding : Unshielded
DC Resistance (DCR) : 28 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 5.96A
Current - Saturation : 3.04A
Shielding : Unshielded
DC Resistance (DCR) : 28 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
89 in stock
5500R-392K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±10%
Current Rating : 11.91A
Current - Saturation : 9.13A
Shielding : Unshielded
DC Resistance (DCR) : 7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±10%
Current Rating : 11.91A
Current - Saturation : 9.13A
Shielding : Unshielded
DC Resistance (DCR) : 7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-393K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 39µH
Tolerance : ±10%
Current Rating : 5.66A
Current - Saturation : 2.85A
Shielding : Unshielded
DC Resistance (DCR) : 31 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 39µH
Tolerance : ±10%
Current Rating : 5.66A
Current - Saturation : 2.85A
Shielding : Unshielded
DC Resistance (DCR) : 31 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock

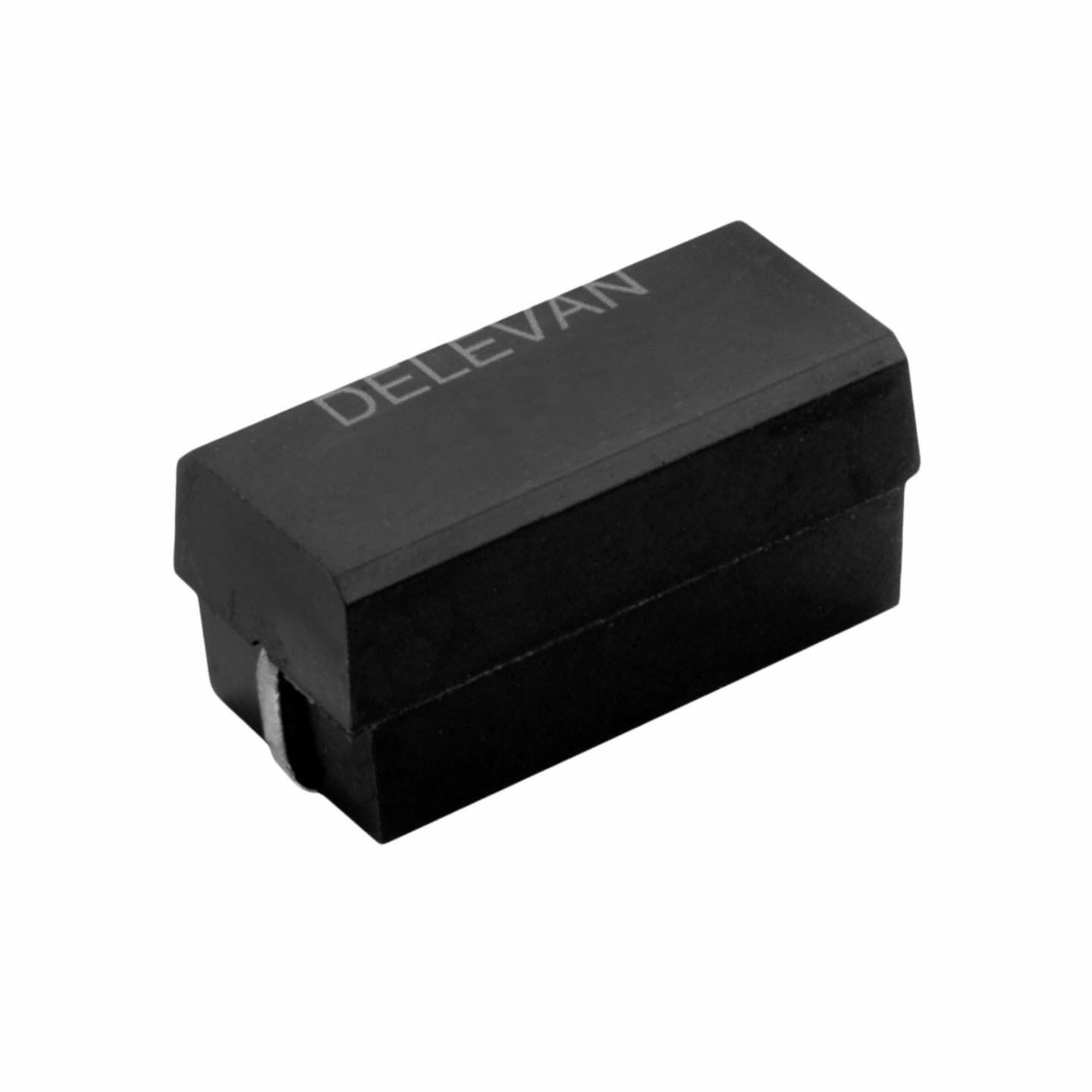

5500R-394K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±10%
Current Rating : 1.86A
Current - Saturation : 880mA
Shielding : Unshielded
DC Resistance (DCR) : 288 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±10%
Current Rating : 1.86A
Current - Saturation : 880mA
Shielding : Unshielded
DC Resistance (DCR) : 288 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-395K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.9mH
Tolerance : ±10%
Current Rating : 590mA
Current - Saturation : 280mA
Shielding : Unshielded
DC Resistance (DCR) : 2.84 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.9mH
Tolerance : ±10%
Current Rating : 590mA
Current - Saturation : 280mA
Shielding : Unshielded
DC Resistance (DCR) : 2.84 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-472K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±10%
Current Rating : 11.14A
Current - Saturation : 8.3A
Shielding : Unshielded
DC Resistance (DCR) : 8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±10%
Current Rating : 11.14A
Current - Saturation : 8.3A
Shielding : Unshielded
DC Resistance (DCR) : 8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
88 in stock
5500R-473K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 5.41A
Current - Saturation : 2.61A
Shielding : Unshielded
DC Resistance (DCR) : 34 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 5.41A
Current - Saturation : 2.61A
Shielding : Unshielded
DC Resistance (DCR) : 34 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
57 in stock
5500R-474K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±10%
Current Rating : 1.59A
Current - Saturation : 810mA
Shielding : Unshielded
DC Resistance (DCR) : 393 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±10%
Current Rating : 1.59A
Current - Saturation : 810mA
Shielding : Unshielded
DC Resistance (DCR) : 393 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
6 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
