API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
4922R-31L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±15%
Current Rating : 390mA
Current - Saturation : 390mA
Shielding : Unshielded
DC Resistance (DCR) : 2.51 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±15%
Current Rating : 390mA
Current - Saturation : 390mA
Shielding : Unshielded
DC Resistance (DCR) : 2.51 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
4939 in stock
4922R-32L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±15%
Current Rating : 380mA
Current - Saturation : 380mA
Shielding : Unshielded
DC Resistance (DCR) : 2.73 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±15%
Current Rating : 380mA
Current - Saturation : 380mA
Shielding : Unshielded
DC Resistance (DCR) : 2.73 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
1294 in stock

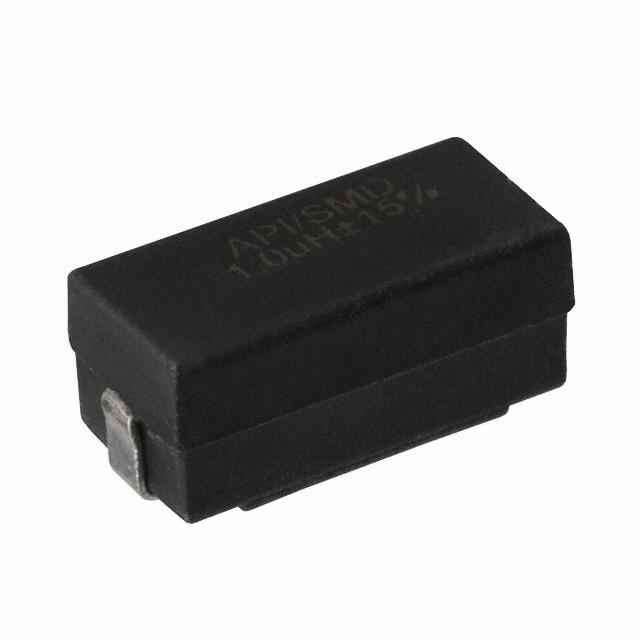

4922R-33L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±15%
Current Rating : 350mA
Current - Saturation : 350mA
Shielding : Unshielded
DC Resistance (DCR) : 3.25 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±15%
Current Rating : 350mA
Current - Saturation : 350mA
Shielding : Unshielded
DC Resistance (DCR) : 3.25 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
100 in stock
4922R-37L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±15%
Current Rating : 240mA
Current - Saturation : 240mA
Shielding : Unshielded
DC Resistance (DCR) : 6.9 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±15%
Current Rating : 240mA
Current - Saturation : 240mA
Shielding : Unshielded
DC Resistance (DCR) : 6.9 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
100 in stock
4922R-471L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470nH
Tolerance : ±15%
Current Rating : 6A
Current - Saturation : 6A
Shielding : Unshielded
DC Resistance (DCR) : 10 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470nH
Tolerance : ±15%
Current Rating : 6A
Current - Saturation : 6A
Shielding : Unshielded
DC Resistance (DCR) : 10 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
989 in stock
4922R-47L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.8mH
Tolerance : ±15%
Current Rating : 80mA
Current - Saturation : 80mA
Shielding : Unshielded
DC Resistance (DCR) : 62 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.8mH
Tolerance : ±15%
Current Rating : 80mA
Current - Saturation : 80mA
Shielding : Unshielded
DC Resistance (DCR) : 62 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
834 in stock
4922R-48L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2mH
Tolerance : ±15%
Current Rating : 77mA
Current - Saturation : 77mA
Shielding : Unshielded
DC Resistance (DCR) : 66 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2mH
Tolerance : ±15%
Current Rating : 77mA
Current - Saturation : 77mA
Shielding : Unshielded
DC Resistance (DCR) : 66 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
100 in stock
4922R-49L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10mH
Tolerance : ±15%
Current Rating : 71mA
Current - Saturation : 71mA
Shielding : Unshielded
DC Resistance (DCR) : 74 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10mH
Tolerance : ±15%
Current Rating : 71mA
Current - Saturation : 71mA
Shielding : Unshielded
DC Resistance (DCR) : 74 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
4371 in stock
4922R-53L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22mH
Tolerance : ±15%
Current Rating : 50mA
Current - Saturation : 50mA
Shielding : Unshielded
DC Resistance (DCR) : 160 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4922R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22mH
Tolerance : ±15%
Current Rating : 50mA
Current - Saturation : 50mA
Shielding : Unshielded
DC Resistance (DCR) : 160 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
3007 in stock

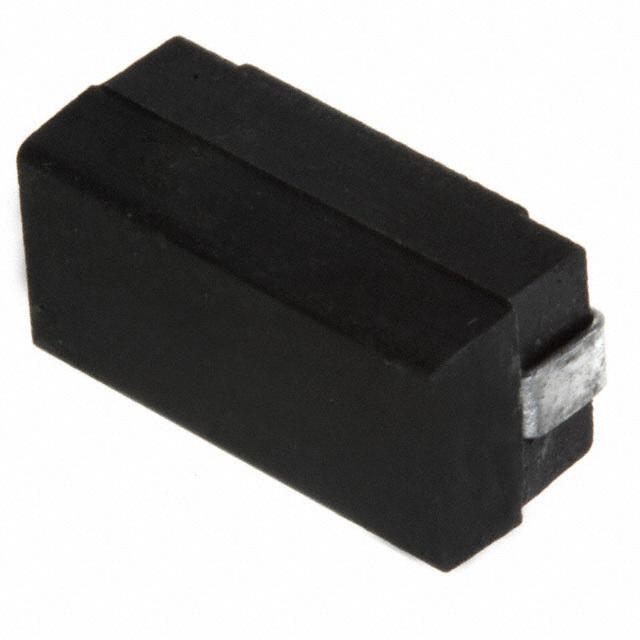

5022-244J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5022
Part Status : Discontinued at
Type : -
Material - Core : Iron
Inductance : 240µH
Tolerance : ±5%
Current Rating : 210mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 7.8 Ohm Max
Q @ Freq : 65 @ 790kHz
Frequency - Self Resonant : 5.9MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5022
Part Status : Discontinued at
Type : -
Material - Core : Iron
Inductance : 240µH
Tolerance : ±5%
Current Rating : 210mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 7.8 Ohm Max
Q @ Freq : 65 @ 790kHz
Frequency - Self Resonant : 5.9MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) : 0.230" (5.84mm)
0
100 in stock
5157-114M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4501
Part Status : Discontinued at
Type : Toroidal
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.360" L x 0.360" W (9.14mm x 9.14mm)
Height - Seated (Max) : 0.210" (5.33mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4501
Part Status : Discontinued at
Type : Toroidal
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.360" L x 0.360" W (9.14mm x 9.14mm)
Height - Seated (Max) : 0.210" (5.33mm)
0
67 in stock

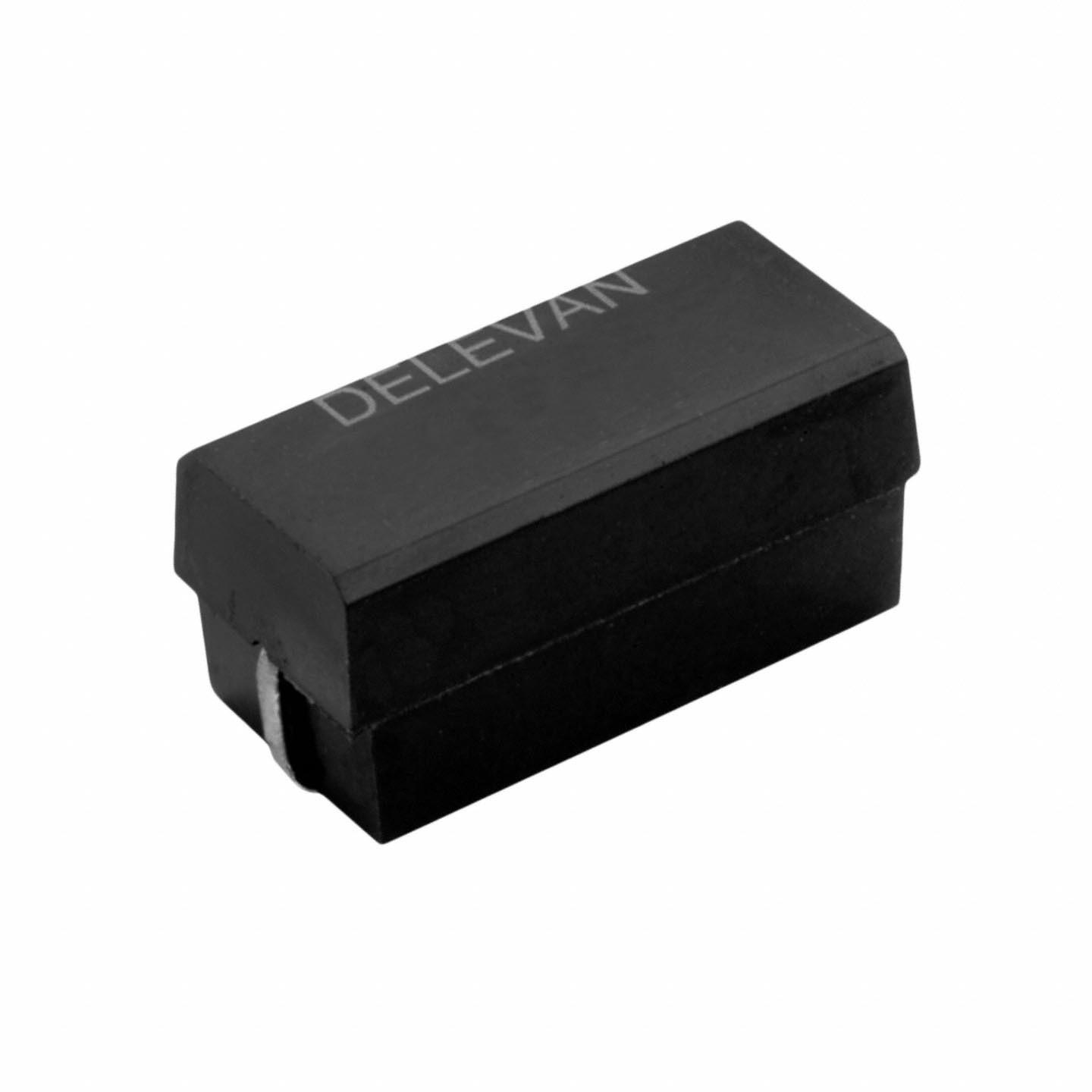

5500R-106K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10mH
Tolerance : ±10%
Current Rating : 370mA
Current - Saturation : 170mA
Shielding : Unshielded
DC Resistance (DCR) : 7.3 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10mH
Tolerance : ±10%
Current Rating : 370mA
Current - Saturation : 170mA
Shielding : Unshielded
DC Resistance (DCR) : 7.3 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
766 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
