API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
5500R-123K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±10%
Current Rating : 7.43A
Current - Saturation : 5.07A
Shielding : Unshielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±10%
Current Rating : 7.43A
Current - Saturation : 5.07A
Shielding : Unshielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-125K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.2mH
Tolerance : ±10%
Current Rating : 1.01A
Current - Saturation : 510mA
Shielding : Unshielded
DC Resistance (DCR) : 977 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.2mH
Tolerance : ±10%
Current Rating : 1.01A
Current - Saturation : 510mA
Shielding : Unshielded
DC Resistance (DCR) : 977 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
27 in stock
5500R-126K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 12mH
Tolerance : ±10%
Current Rating : 330mA
Current - Saturation : 160mA
Shielding : Unshielded
DC Resistance (DCR) : 9.34 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 12mH
Tolerance : ±10%
Current Rating : 330mA
Current - Saturation : 160mA
Shielding : Unshielded
DC Resistance (DCR) : 9.34 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
1798 in stock
5500R-153K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 7.05A
Current - Saturation : 4.57A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 7.05A
Current - Saturation : 4.57A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
97 in stock
5500R-154K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 2.78A
Current - Saturation : 1.43A
Shielding : Unshielded
DC Resistance (DCR) : 129 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 2.78A
Current - Saturation : 1.43A
Shielding : Unshielded
DC Resistance (DCR) : 129 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
40 in stock
5500R-155K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±10%
Current Rating : 920mA
Current - Saturation : 450mA
Shielding : Unshielded
DC Resistance (DCR) : 1.18 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±10%
Current Rating : 920mA
Current - Saturation : 450mA
Shielding : Unshielded
DC Resistance (DCR) : 1.18 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-183K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±10%
Current Rating : 6.72A
Current - Saturation : 4.15A
Shielding : Unshielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±10%
Current Rating : 6.72A
Current - Saturation : 4.15A
Shielding : Unshielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-184K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±10%
Current Rating : 2.57A
Current - Saturation : 1.3A
Shielding : Unshielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±10%
Current Rating : 2.57A
Current - Saturation : 1.3A
Shielding : Unshielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
100 in stock
5500R-185K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.8mH
Tolerance : ±10%
Current Rating : 810mA
Current - Saturation : 410mA
Shielding : Unshielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.8mH
Tolerance : ±10%
Current Rating : 810mA
Current - Saturation : 410mA
Shielding : Unshielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
167 in stock

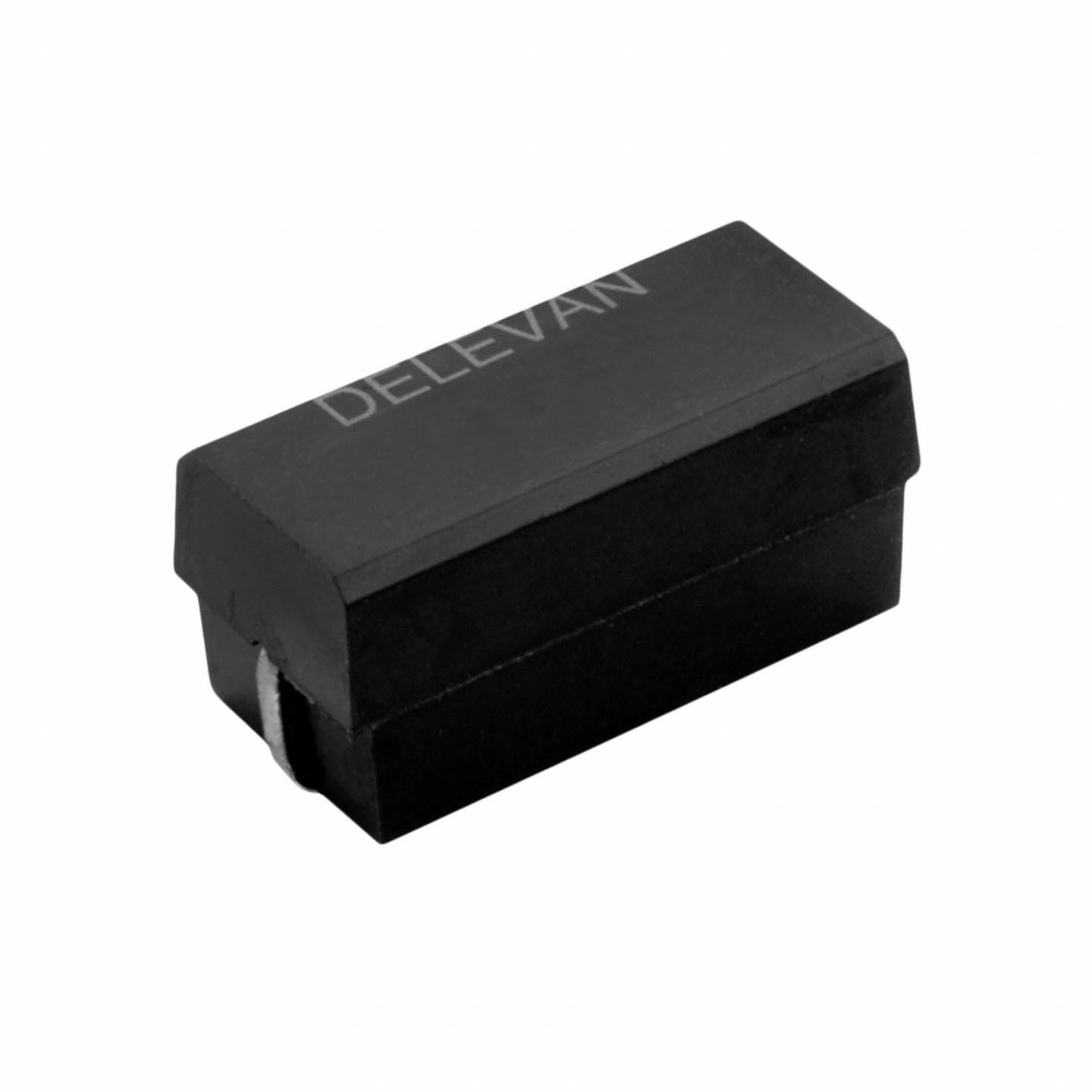

5500R-186K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 18mH
Tolerance : ±10%
Current Rating : 260mA
Current - Saturation : 130mA
Shielding : Unshielded
DC Resistance (DCR) : 14.8 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 18mH
Tolerance : ±10%
Current Rating : 260mA
Current - Saturation : 130mA
Shielding : Unshielded
DC Resistance (DCR) : 14.8 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
26 in stock
5500R-223K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 6.43A
Current - Saturation : 3.65A
Shielding : Unshielded
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 6.43A
Current - Saturation : 3.65A
Shielding : Unshielded
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
13 in stock
5500R-224K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 2.48A
Current - Saturation : 1.19A
Shielding : Unshielded
DC Resistance (DCR) : 162 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5500R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 2.48A
Current - Saturation : 1.19A
Shielding : Unshielded
DC Resistance (DCR) : 162 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max) : 0.520" (13.21mm)
0
82 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
