API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
4426R-1
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Air
Inductance : 2.5nH
Tolerance : ±10%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 145 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Air
Inductance : 2.5nH
Tolerance : ±10%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 145 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
109 in stock
4426R-10
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 43nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 106 @ 150MHz
Frequency - Self Resonant : 1.5GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 43nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 106 @ 150MHz
Frequency - Self Resonant : 1.5GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
360 in stock

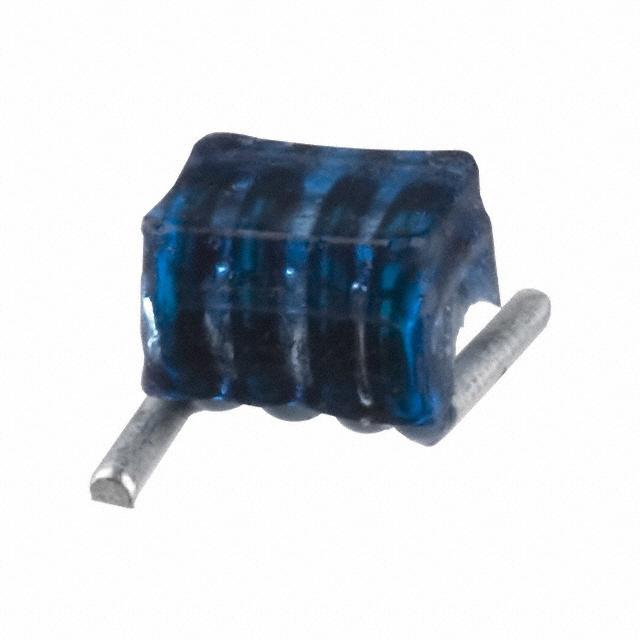

4426R-2
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 5nH
Tolerance : ±10%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 140 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 5nH
Tolerance : ±10%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 140 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
1163 in stock
4426R-3
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 8nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 140 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 8nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 140 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
2459 in stock
4426R-4
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 12.5nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 137 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 12.5nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 137 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
808 in stock
4426R-5
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 18.5nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 132 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 18.5nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 132 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
2232 in stock
4426R-7
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 22nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 102 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 22nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 102 @ 150MHz
Frequency - Self Resonant : 3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
800 in stock
4426R-8
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 28nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 105 @ 150MHz
Frequency - Self Resonant : 2.6GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 28nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 105 @ 150MHz
Frequency - Self Resonant : 2.6GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
4806 in stock
4426R-9
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 35.5nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 112 @ 150MHz
Frequency - Self Resonant : 1.8GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426R
Part Status : Active
Type : Wirewound
Material - Core : Air
Inductance : 35.5nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 112 @ 150MHz
Frequency - Self Resonant : 1.8GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
2182 in stock
4426RKIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Plastic Box with Bin Guide
Series : 4426
Part Status : Obsolete
Kit Type : Fixed
Style : Wirewound
Material - Core : Air
Quantity : 50 Pieces (10 Values - 5 Each)
Inductance Range : 2.5nH ~ 43nH
Mounting Type : Surface Mount
Packages Included : 4426
Features : -
Shielding : -
Packaging : Plastic Box with Bin Guide
Series : 4426
Part Status : Obsolete
Kit Type : Fixed
Style : Wirewound
Material - Core : Air
Quantity : 50 Pieces (10 Values - 5 Each)
Inductance Range : 2.5nH ~ 43nH
Mounting Type : Surface Mount
Packages Included : 4426
Features : -
Shielding : -
0
100 in stock

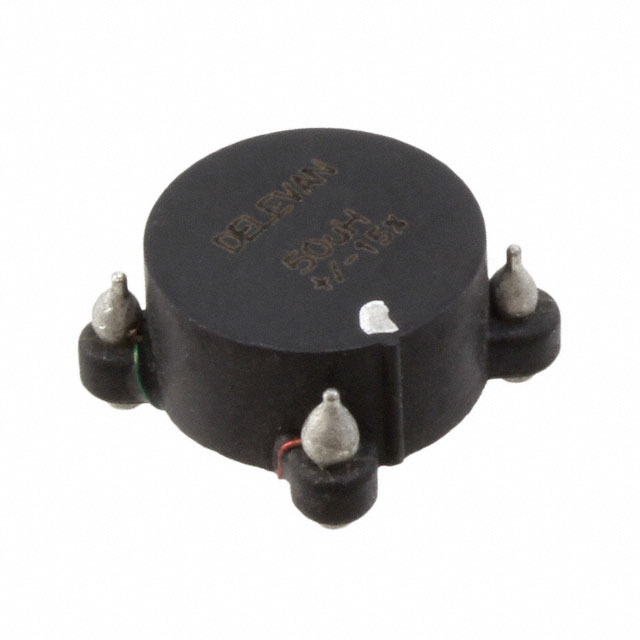

4448R-124L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4448R
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 50µH
Inductance - Connected In Series : 200µH
Tolerance : ±15%
Current Rating - Parallel : 1.5A
Current Rating - Series : 750mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 111 mOhm Max
DC Resistance (DCR) - Series : 444 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.530" L x 0.530" W (13.46mm x 13.46mm)
Height : 0.310" (7.87mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4448R
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 50µH
Inductance - Connected In Series : 200µH
Tolerance : ±15%
Current Rating - Parallel : 1.5A
Current Rating - Series : 750mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 111 mOhm Max
DC Resistance (DCR) - Series : 444 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.530" L x 0.530" W (13.46mm x 13.46mm)
Height : 0.310" (7.87mm)
0
100 in stock
4501R-128M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 4501R
Part Status : Active
Type : Toroidal
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 650mA
Current - Saturation : 650mA
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.360" L x 0.360" W (9.14mm x 9.14mm)
Height - Seated (Max) : 0.210" (5.33mm)
Packaging : Bulk
Series : 4501R
Part Status : Active
Type : Toroidal
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 650mA
Current - Saturation : 650mA
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.360" L x 0.360" W (9.14mm x 9.14mm)
Height - Seated (Max) : 0.210" (5.33mm)
0
236 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
