- Inductors, Coils, Chokes
- Fixed Inductors
Part Number
Manufacturer
Description
Unit Price
In Stock
1008R-473J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±5%
Current Rating : 120mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±5%
Current Rating : 120mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
882 in stock

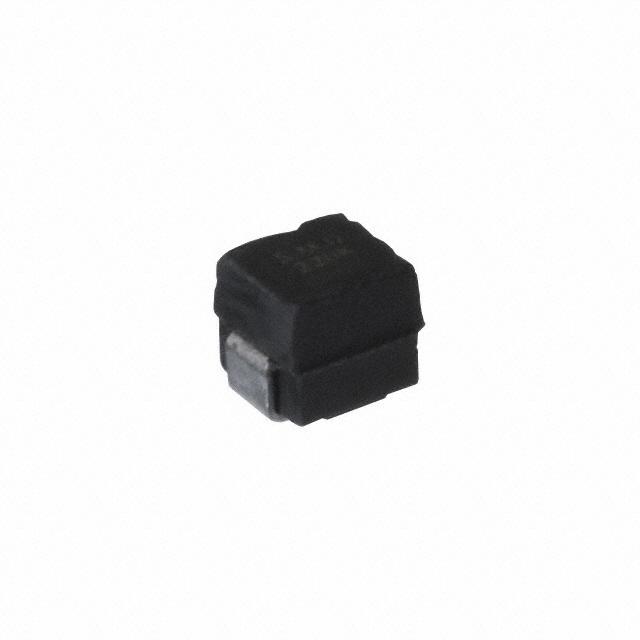

1008R-680K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68nH
Tolerance : ±10%
Current Rating : 823mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 25 @ 50MHz
Frequency - Self Resonant : 1GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68nH
Tolerance : ±10%
Current Rating : 823mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 25 @ 50MHz
Frequency - Self Resonant : 1GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
747 in stock
1008R-681K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 680nH
Tolerance : ±10%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 260 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 175MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 680nH
Tolerance : ±10%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 260 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 175MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
500 in stock
1008R-820K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 82nH
Tolerance : ±10%
Current Rating : 801mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : 25 @ 50MHz
Frequency - Self Resonant : 915MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 82nH
Tolerance : ±10%
Current Rating : 801mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : 25 @ 50MHz
Frequency - Self Resonant : 915MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
751 in stock

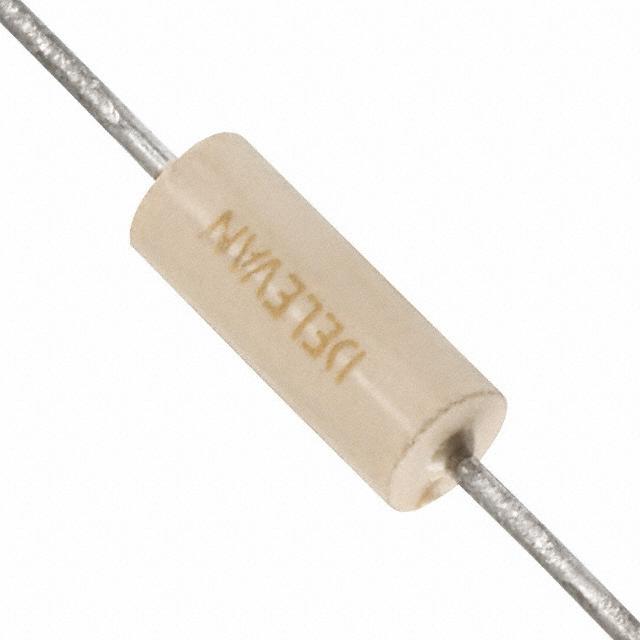

1025-00K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 150nH
Tolerance : ±10%
Current Rating : 1.23A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 38 @ 25MHz
Frequency - Self Resonant : 600MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 150nH
Tolerance : ±10%
Current Rating : 1.23A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 38 @ 25MHz
Frequency - Self Resonant : 600MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
828 in stock
1025-02K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 180nH
Tolerance : ±10%
Current Rating : 1.12A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 35 @ 25MHz
Frequency - Self Resonant : 550MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 180nH
Tolerance : ±10%
Current Rating : 1.12A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 35 @ 25MHz
Frequency - Self Resonant : 550MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
1555 in stock
1025-06K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 270nH
Tolerance : ±10%
Current Rating : 975mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 160 mOhm Max
Q @ Freq : 33 @ 25MHz
Frequency - Self Resonant : 430MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 270nH
Tolerance : ±10%
Current Rating : 975mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 160 mOhm Max
Q @ Freq : 33 @ 25MHz
Frequency - Self Resonant : 430MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
117 in stock
1025-12K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 470nH
Tolerance : ±10%
Current Rating : 660mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 330MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 470nH
Tolerance : ±10%
Current Rating : 660mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 330MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
1589 in stock
1025-14K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 560nH
Tolerance : ±10%
Current Rating : 550mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 300MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 560nH
Tolerance : ±10%
Current Rating : 550mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 300MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
849 in stock
1025-18K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 820nH
Tolerance : ±10%
Current Rating : 420mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 850 mOhm Max
Q @ Freq : 28 @ 25MHz
Frequency - Self Resonant : 250MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 820nH
Tolerance : ±10%
Current Rating : 420mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 850 mOhm Max
Q @ Freq : 28 @ 25MHz
Frequency - Self Resonant : 250MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
437 in stock
1025-20K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 1µH
Tolerance : ±10%
Current Rating : 390mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 25 @ 25MHz
Frequency - Self Resonant : 230MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75083
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 1µH
Tolerance : ±10%
Current Rating : 390mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 25 @ 25MHz
Frequency - Self Resonant : 230MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
100 in stock
1025-22K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75084
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 1.2µH
Tolerance : ±10%
Current Rating : 620mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 25 @ 7.9MHz
Frequency - Self Resonant : 150MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75084
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 1.2µH
Tolerance : ±10%
Current Rating : 620mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 25 @ 7.9MHz
Frequency - Self Resonant : 150MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max) : -
0
1281 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
