- Inductors, Coils, Chokes
- Fixed Inductors
Part Number
Manufacturer
Description
Unit Price
In Stock
1008R-100K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 10nH
Tolerance : ±10%
Current Rating : 1.562A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : 40 @ 50MHz
Frequency - Self Resonant : 2.7GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 10nH
Tolerance : ±10%
Current Rating : 1.562A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : 40 @ 50MHz
Frequency - Self Resonant : 2.7GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
997 in stock
1008R-101K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 100nH
Tolerance : ±10%
Current Rating : 728mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 230 mOhm Max
Q @ Freq : 15 @ 25MHz
Frequency - Self Resonant : 550MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Phenolic
Inductance : 100nH
Tolerance : ±10%
Current Rating : 728mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 230 mOhm Max
Q @ Freq : 15 @ 25MHz
Frequency - Self Resonant : 550MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
608 in stock
1008R-102J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±5%
Current Rating : 685mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 320 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 125MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±5%
Current Rating : 685mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 320 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 125MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
100 in stock
1008R-103J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±5%
Current Rating : 245mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 28MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±5%
Current Rating : 245mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 28MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
1316 in stock
1008R-151K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 150nH
Tolerance : ±10%
Current Rating : 1.168A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 650MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 150nH
Tolerance : ±10%
Current Rating : 1.168A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 650MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
347 in stock
1008R-153J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±5%
Current Rating : 194mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 4 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 21MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±5%
Current Rating : 194mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 4 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 21MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
608 in stock
1008R-220K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Phenolic
Inductance : 22nH
Tolerance : ±10%
Current Rating : 1.235A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : 35 @ 50MHz
Frequency - Self Resonant : 1.8GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Phenolic
Inductance : 22nH
Tolerance : ±10%
Current Rating : 1.235A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : 35 @ 50MHz
Frequency - Self Resonant : 1.8GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
644 in stock

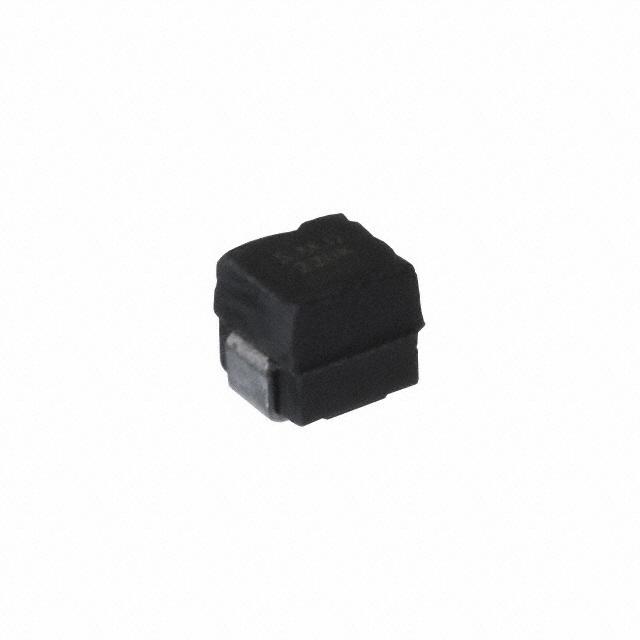

1008R-221K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220nH
Tolerance : ±10%
Current Rating : 1.055A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 135 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 450MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220nH
Tolerance : ±10%
Current Rating : 1.055A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 135 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 450MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
580 in stock
1008R-223J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±5%
Current Rating : 158mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±5%
Current Rating : 158mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
340 in stock
1008R-470K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Phenolic
Inductance : 47nH
Tolerance : ±10%
Current Rating : 1.008A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 30 @ 50MHz
Frequency - Self Resonant : 1.22GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Discontinued at
Type : -
Material - Core : Phenolic
Inductance : 47nH
Tolerance : ±10%
Current Rating : 1.008A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : 30 @ 50MHz
Frequency - Self Resonant : 1.22GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
27 in stock
1008R-471K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470nH
Tolerance : ±10%
Current Rating : 846mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 210 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 215MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470nH
Tolerance : ±10%
Current Rating : 846mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 210 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 215MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
1163 in stock
1008R-472J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±5%
Current Rating : 334mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.35 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 47MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±5%
Current Rating : 334mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.35 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 47MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
747 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
