ILD1
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : 300% @ 10mA
Turn On / Turn Off Time (Typ) : 700ns, 1.4µs
Rise / Fall Time (Typ) : 1.9µs, 1.4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 50V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : 300% @ 10mA
Turn On / Turn Off Time (Typ) : 700ns, 1.4µs
Rise / Fall Time (Typ) : 1.9µs, 1.4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 50V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1970 in stock
ILD1207T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 5µs, 4µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 5µs, 4µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2107 in stock
ILD1615-4
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 160% @ 10mA
Current Transfer Ratio (Max) : 320% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 160% @ 10mA
Current Transfer Ratio (Max) : 320% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1995 in stock

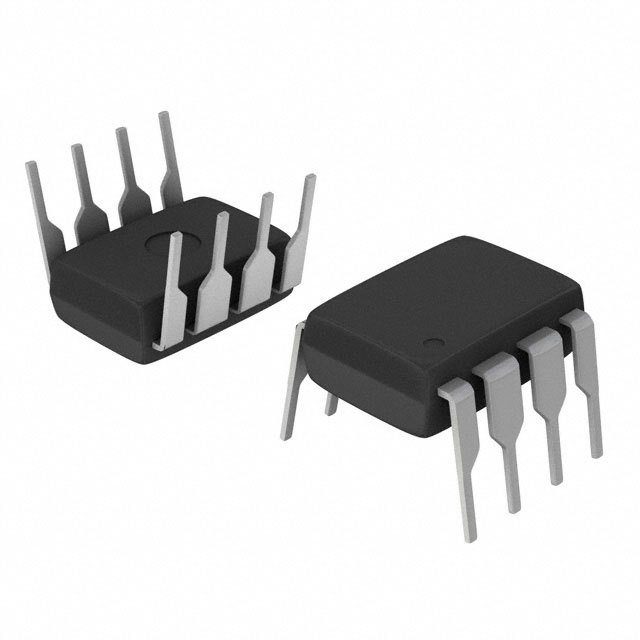

ILD2
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 500% @ 10mA
Turn On / Turn Off Time (Typ) : 1.2µs, 2.3µs
Rise / Fall Time (Typ) : 2.6µs, 2.2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 500% @ 10mA
Turn On / Turn Off Time (Typ) : 1.2µs, 2.3µs
Rise / Fall Time (Typ) : 2.6µs, 2.2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2470 in stock
ILD205T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1780 in stock
ILD206T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : -
0
4254 in stock
ILD207T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
25686 in stock

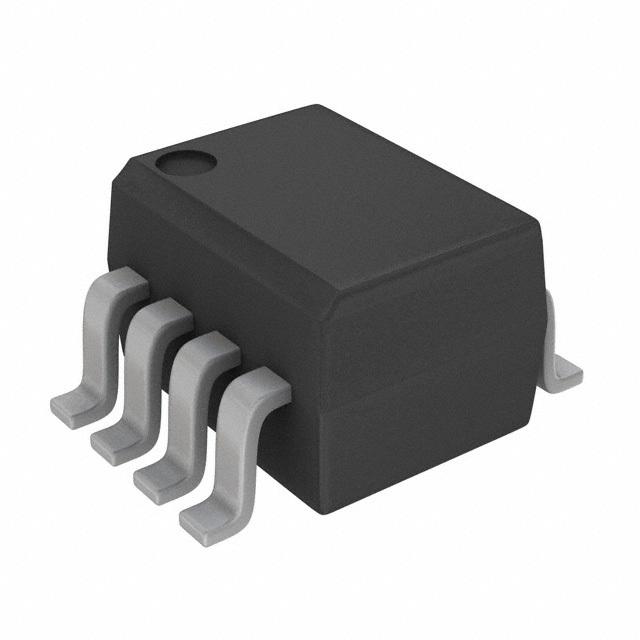

ILD211T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1262 in stock
ILD213T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
ILD217T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
13428 in stock
ILD223T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 500% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 15µs, 30µs (Min)
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 30V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.3V (Max)
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 500% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 15µs, 30µs (Min)
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 30V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.3V (Max)
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
7318 in stock
ILD256T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : -
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 4000Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : -
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
3542 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
