Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 2mA
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 500µA
Turn On Time : 35µs
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount

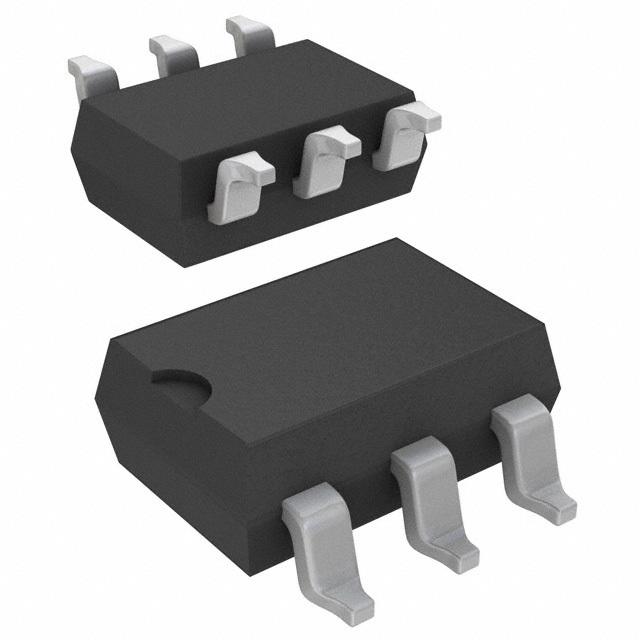

Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
Approvals : CQC, CSA, cUR, UR
0
2584 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 2mA
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 500µA
Turn On Time : 35µs
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD
Supplier Device Package : -
Approvals : CQC, CSA, cUR, UR
0
3498 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 2mA
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 500µA
Turn On Time : 35µs
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD
Supplier Device Package : 6-SMD
Approvals : CQC, CSA, cUR, UR
0
584 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 2mA
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 500µA
Turn On Time : 35µs
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
Approvals : CQC, CSA, cUR, UR, VDE
0
6000 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 2mA
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 500µA
Turn On Time : 35µs
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD
Supplier Device Package : -
Approvals : CQC, CSA, cUR, UR, VDE
0
1000 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 700µA (Typ)
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 200µA
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CSA, cUR, FIMKO, UR
0
792 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 700µA (Typ)
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 200µA
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CSA, cUR, FIMKO, UR
0
347 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 700µA (Typ)
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 200µA
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
Approvals : BSI, CSA, cUR, FIMKO, UR
0
1784 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 700µA (Typ)
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 200µA
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD
Supplier Device Package : 6-SMD
Approvals : BSI, CSA, cUR, FIMKO, UR, VDE
0
1986 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 750% @ 2mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 50µs, 50µs
Input Type : AC, DC
Output Type : Darlington with Base
Voltage - Output (Max) : 60V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole

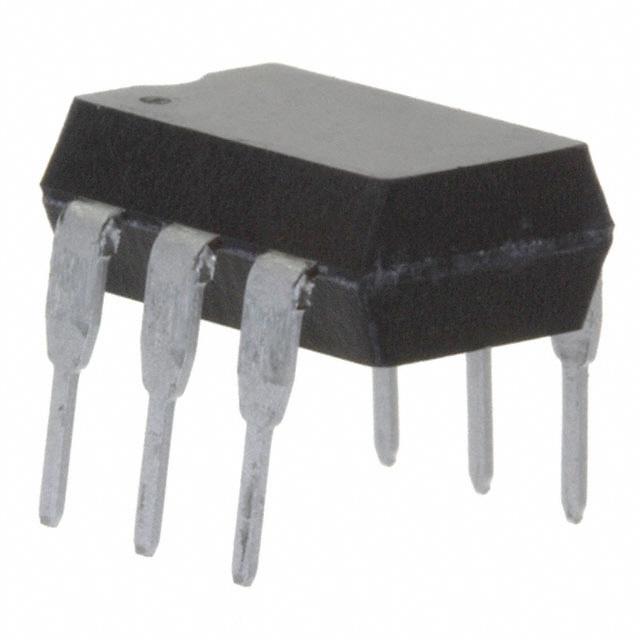

Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1897 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 750% @ 2mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 50µs, 50µs
Input Type : AC, DC
Output Type : Darlington with Base
Voltage - Output (Max) : 60V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
3904 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 1000% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 70µs, 70µs
Input Type : AC, DC
Output Type : Darlington with Base
Voltage - Output (Max) : 60V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
2000 in stock
