United Chemi-Con
- A wholly owned subsidiary of Nippon Chemi-Con, United Chemi-Con (UCC) is North America's largest manufacturer and supplier of aluminum electrolytic capacitors. Established in the United States in 1970, United Chemi-Con distributes more than 8,000 products, including products manufactured both domestically in Lansing, North Carolina, and at other worldwide plants.
Because quality customer service is one of United Chemi-Con's highest priorities, we offer complete engineering and sales support at our corporate headquarters in Rosemont, Illinois, as well as sales, service and field engineering support at other sites throughout the country. UCC products are warehoused in Brea, California and Lansing, North Carolina, ensuring fast and efficient delivery of your orders.
Part Number
Manufacturer
Description
Unit Price
In Stock

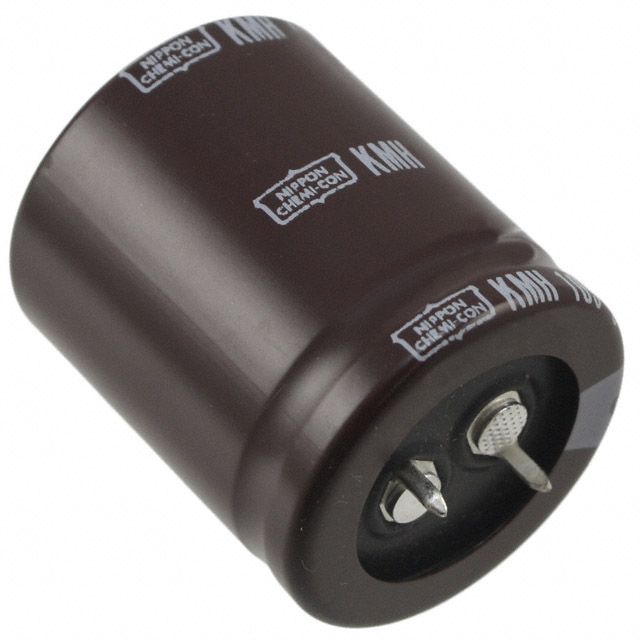

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMH
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 53 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.86A @ 120Hz
Ripple Current @ High Frequency : 3.432A @ 100kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2859 in stock

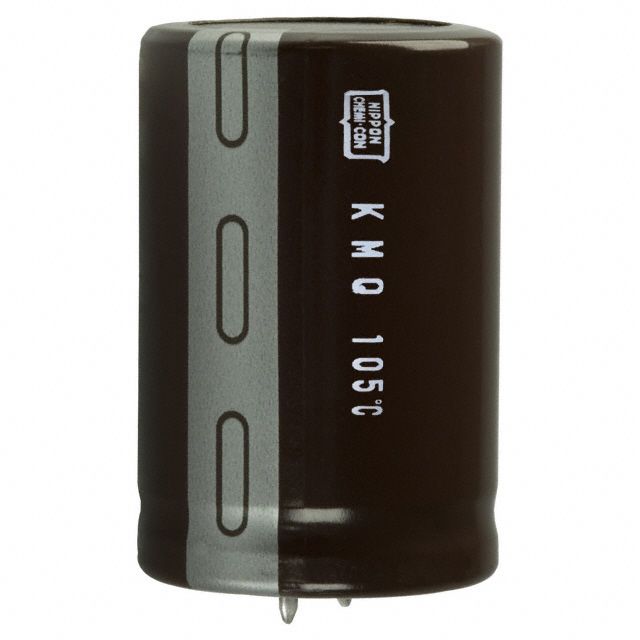

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 160V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.9A @ 120Hz
Ripple Current @ High Frequency : 4.35A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2358 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.3A @ 120Hz
Ripple Current @ High Frequency : 3.45A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2379 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 1800µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.08A @ 120Hz
Ripple Current @ High Frequency : 4.62A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2042 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.31A @ 120Hz
Ripple Current @ High Frequency : 1.965A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
7132 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.4A @ 120Hz
Ripple Current @ High Frequency : 2.1A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.000" Dia (25.40mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
227 in stock

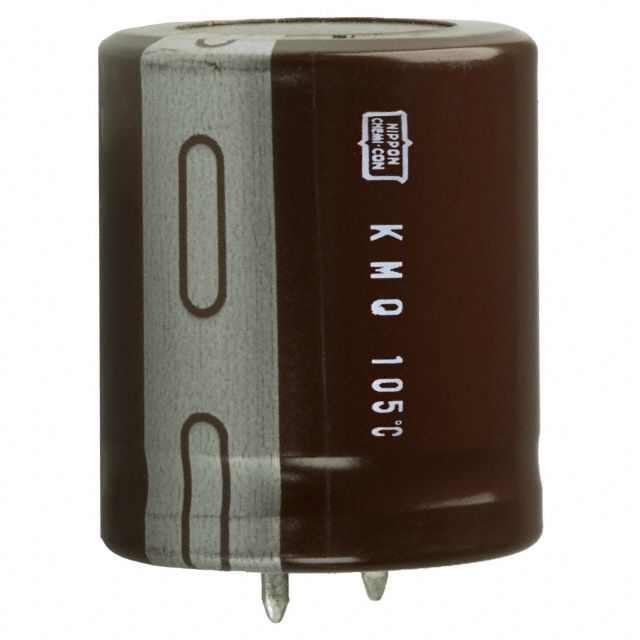

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 350V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 1.43A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.000" Dia (25.40mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
250 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 880mA @ 120Hz
Ripple Current @ High Frequency : 1.2584A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2145 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.1A @ 120Hz
Ripple Current @ High Frequency : 1.573A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1251 in stock

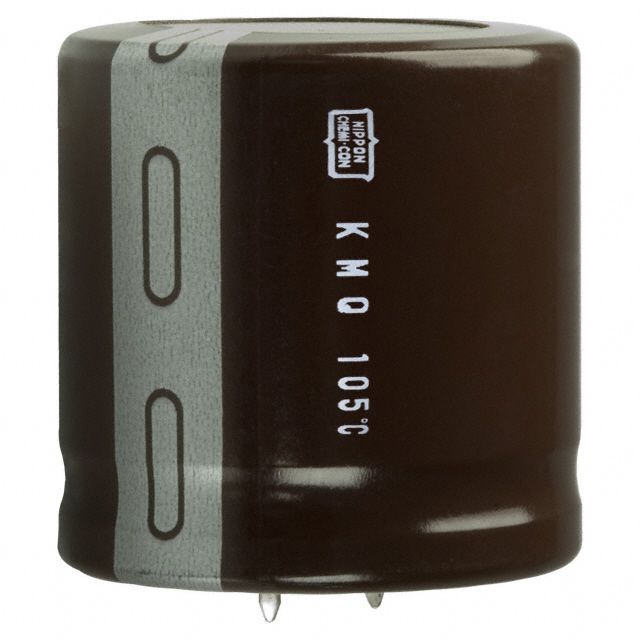

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.68A @ 120Hz
Ripple Current @ High Frequency : 2.4024A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.378" (35.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1282 in stock

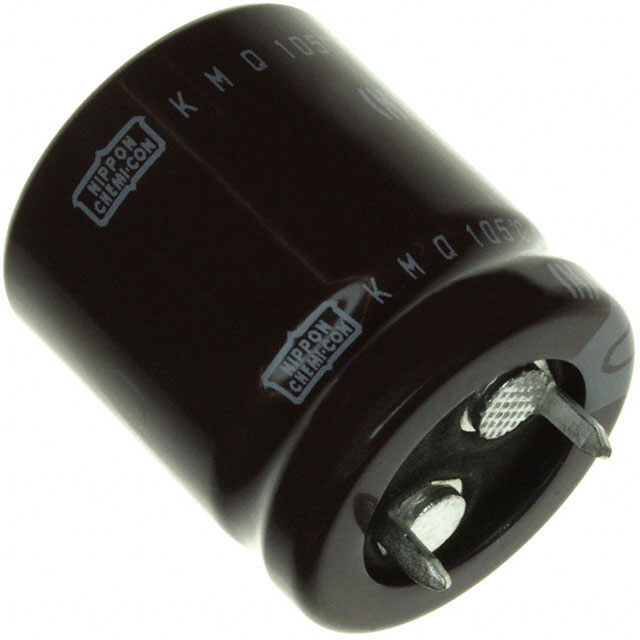

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 640mA @ 120Hz
Ripple Current @ High Frequency : 915.2mA @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4145 in stock

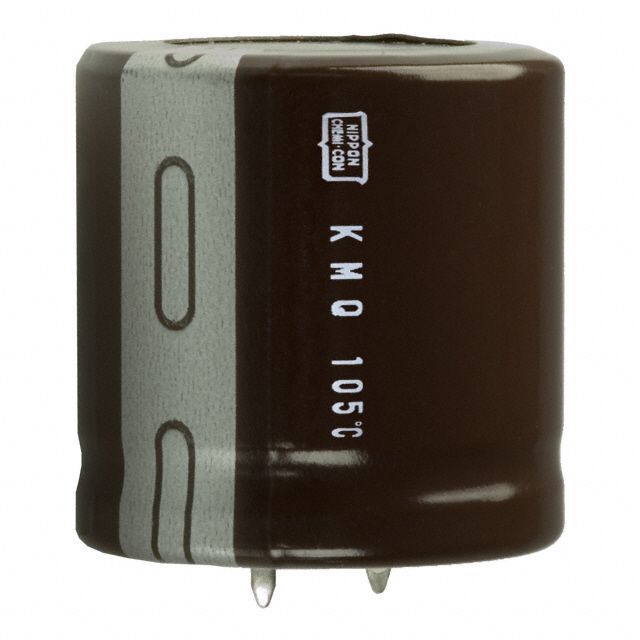

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 1.43A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1518 in stock
