United Chemi-Con
- A wholly owned subsidiary of Nippon Chemi-Con, United Chemi-Con (UCC) is North America's largest manufacturer and supplier of aluminum electrolytic capacitors. Established in the United States in 1970, United Chemi-Con distributes more than 8,000 products, including products manufactured both domestically in Lansing, North Carolina, and at other worldwide plants.
Because quality customer service is one of United Chemi-Con's highest priorities, we offer complete engineering and sales support at our corporate headquarters in Rosemont, Illinois, as well as sales, service and field engineering support at other sites throughout the country. UCC products are warehoused in Brea, California and Lansing, North Carolina, ensuring fast and efficient delivery of your orders.
Part Number
Manufacturer
Description
Unit Price
In Stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : DLCAP™, DLC
Part Status : Obsolete
Capacitance : 1400F
Tolerance : ±10%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.669" (17.00mm)
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 6.063" (154.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : DLCAP™, DSC
Part Status : Obsolete
Capacitance : 2400F
Tolerance : ±10%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 0.7 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.069" (27.15mm)
Size / Dimension : 2.126" L x 2.126" W (54.00mm x 54.00mm)
Height - Seated (Max) : 5.079" (129.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U32D
Part Status : Active
Capacitance : 100000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 6.8 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 31.43A @ 120Hz
Ripple Current @ High Frequency : 35.2016A @ 50kHz
Impedance : -
Lead Spacing : 1.126" (28.60mm)
Size / Dimension : 2.500" Dia (63.50mm)
Height - Seated (Max) : 4.125" (104.78mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
712 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U36D
Part Status : Active
Capacitance : 10000µF
Tolerance : -10%, +50%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 0.875" (22.22mm)
Size / Dimension : 2.000" Dia (50.80mm)
Height - Seated (Max) : 3.625" (92.08mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
737 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U36D
Part Status : Active
Capacitance : 100000µF
Tolerance : -10%, +50%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 1.126" (28.60mm)
Size / Dimension : 2.500" Dia (63.50mm)
Height - Seated (Max) : 4.125" (104.78mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
295 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U36D
Part Status : Active
Capacitance : 3900µF
Tolerance : -10%, +50%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.375" Dia (34.93mm)
Height - Seated (Max) : 1.625" (41.28mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
1309 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U36D
Part Status : Active
Capacitance : 100000µF
Tolerance : ±20%
Voltage - Rated : 80V
ESR (Equivalent Series Resistance) : 5.5 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 21.42A @ 120Hz
Ripple Current @ High Frequency : 29.988A @ 3kHz
Impedance : -
Lead Spacing : 1.252" (31.80mm)
Size / Dimension : 3.000" Dia (76.20mm)
Height - Seated (Max) : 5.625" (142.88mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
215 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U37F
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 6 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 36.5A @ 120Hz
Ripple Current @ High Frequency : 51.465A @ 10kHz
Impedance : -
Lead Spacing : 1.250" (31.75mm)
Size / Dimension : 3.504" Dia (89.00mm)
Height - Seated (Max) : 7.520" (191.00mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
133 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U37F
Part Status : Active
Capacitance : 12000µF
Tolerance : ±20%
Voltage - Rated : 500V
ESR (Equivalent Series Resistance) : 8 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 33.5A @ 120Hz
Ripple Current @ High Frequency : 23.124A @ 10kHz
Impedance : -
Lead Spacing : 1.252" (31.80mm)
Size / Dimension : 3.504" Dia (89.00mm)
Height - Seated (Max) : 8.661" (220.00mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
50 in stock

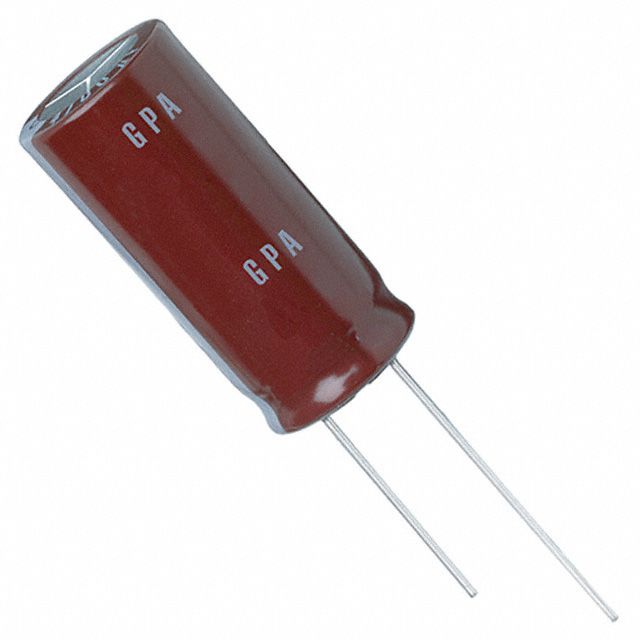

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : GPA
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 44 mOhm @ 100kHz
Lifetime @ Temp. : 5000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.548A @ 120Hz
Ripple Current @ High Frequency : 2.58A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.437" (36.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3368 in stock

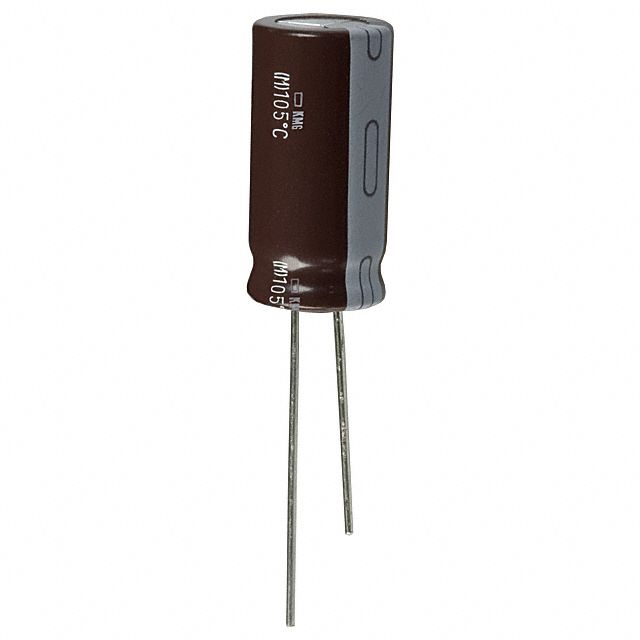

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 950mA @ 120Hz
Ripple Current @ High Frequency : 1.425A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.043" (26.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
9103 in stock

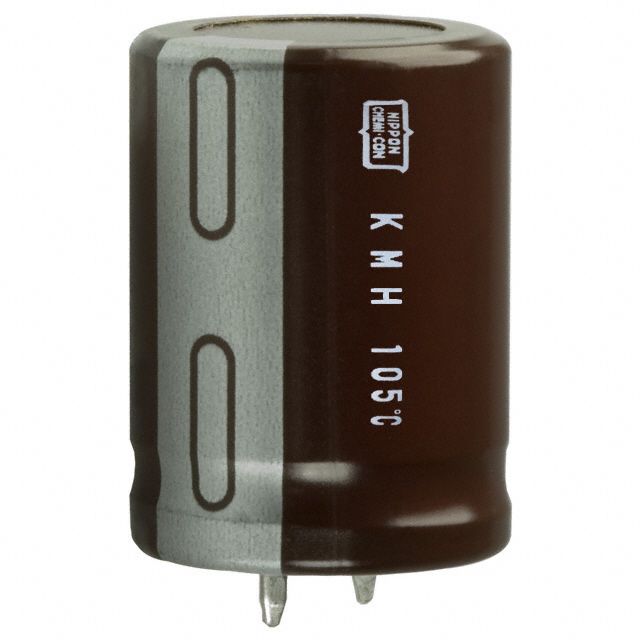

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMH
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 71 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.25A @ 120Hz
Ripple Current @ High Frequency : 2.43A @ 100kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1979 in stock
