TT Electronics/Optek Technology

- Optek Technology designs and manufactures electronic components for customers across defense and aerospace, medical, transportation, energy and industrial electronics markets.

Key applications are sensing, illumination and indication in office equipment, encoders, military and Hi-Rel applications, and medical diagnostic equipment.

Products include: optoelectronics – discrete LEDs, surface mount and thru-hole LEDs and Hall effect sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of OPA730YD

OPA730YD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Yellow
CCT (K) : -
Wavelength : 587nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 420 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15V
Lumens/Watt @ Current - Test : 56 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Flat

0

100 in stock

Picture of OPA731B

OPA731B

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 470nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 180 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA731BD

OPA731BD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 470nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 180 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OPA731G

OPA731G

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 530nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 960 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA731GD

OPA731GD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 530nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 960 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OPA731R

OPA731R

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 625nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 520 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.5V
Lumens/Watt @ Current - Test : 30 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA731RD

OPA731RD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 625nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 520 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.5V
Lumens/Watt @ Current - Test : 30 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

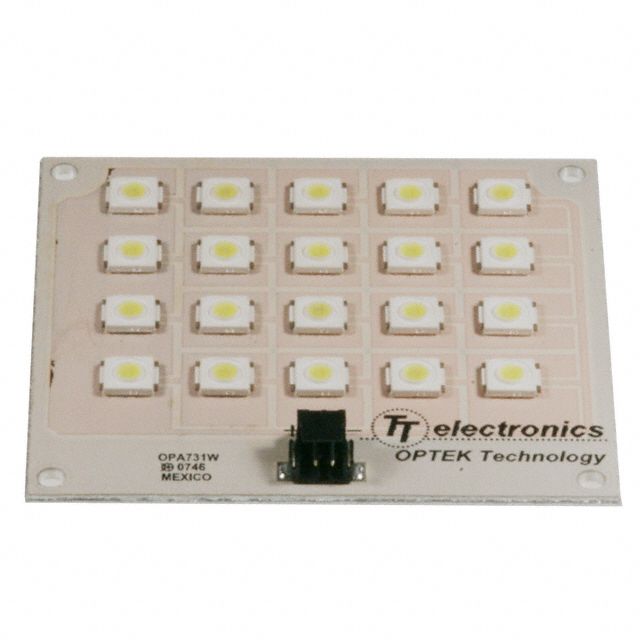

Picture of OPA731W

OPA731W

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 960 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 69.85mm L x 63.50mm W
Height : 1.45mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

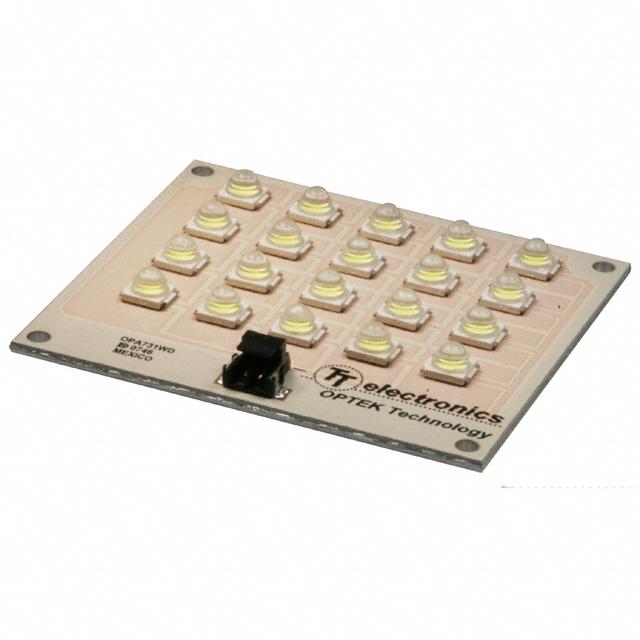

Picture of OPA731WD

OPA731WD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 960 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : With Connector
Size / Dimension : 69.85mm L x 63.50mm W
Height : 1.45mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA731Y

OPA731Y

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Yellow
CCT (K) : -
Wavelength : 587nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 700 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.5V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA731YD

OPA731YD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA731
Part Status : Obsolete
Type : LED Module
Color : Yellow
CCT (K) : -
Wavelength : 587nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : 700 lm (Typ)
Current - Test : 1.4A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.5V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 63.5mm L x 69.84mm W
Height : 7.63mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OPA733B

OPA733B

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA733
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 470nm
Configuration : Round
Flux @ Current/Temperature - Test : 9 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 34.67mm Diameter
Height : 7.62mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock
