TT Electronics/Optek Technology

- Optek Technology designs and manufactures electronic components for customers across defense and aerospace, medical, transportation, energy and industrial electronics markets.

Key applications are sensing, illumination and indication in office equipment, encoders, military and Hi-Rel applications, and medical diagnostic equipment.

Products include: optoelectronics – discrete LEDs, surface mount and thru-hole LEDs and Hall effect sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

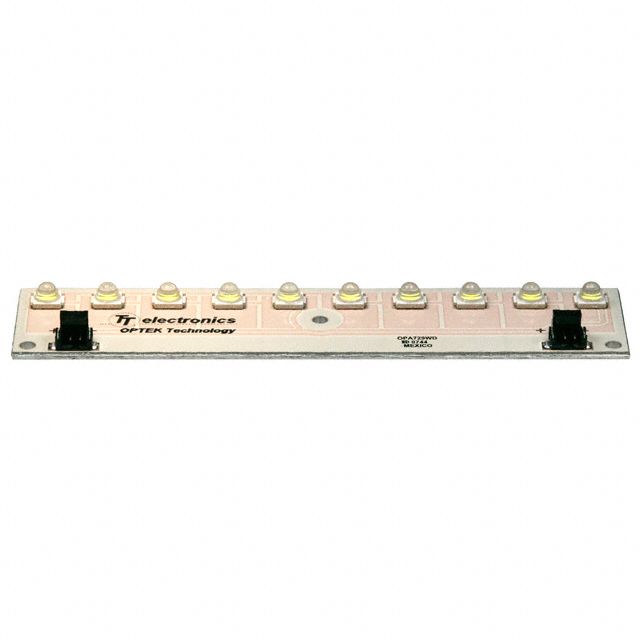

Picture of OPA729WD

OPA729WD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA729
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 480 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : With Connector
Size / Dimension : 127.00mm L x 29.21mm W
Height : 5.89mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA729Y

OPA729Y

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA729
Part Status : Obsolete
Type : LED Module
Color : Yellow
CCT (K) : -
Wavelength : 587nm
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 350 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.5V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 127.00mm L x 29.21mm W
Height : 7.62mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA729YD

OPA729YD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA729
Part Status : Obsolete
Type : LED Module
Color : Yellow
CCT (K) : -
Wavelength : 587nm
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 350 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.5V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : With Connector
Size / Dimension : 127.00mm L x 29.21mm W
Height : 7.62mm
Light Emitting Surface (LES) : -
Lens Type : Domed

0

100 in stock

Picture of OPA730B

OPA730B

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 470nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 108 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21.6V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Flat

0

100 in stock

Picture of OPA730BD

OPA730BD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 470nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 108 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21.6V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Domed

0

100 in stock

Picture of OPA730G

OPA730G

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 530nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 530 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21.6V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Flat

0

100 in stock

Picture of OPA730GD

OPA730GD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 530nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 530 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21.6V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Domed

0

100 in stock

Picture of OPA730R

OPA730R

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 625nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Flat

0

100 in stock

Picture of OPA730RD

OPA730RD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 625nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Domed

0

100 in stock

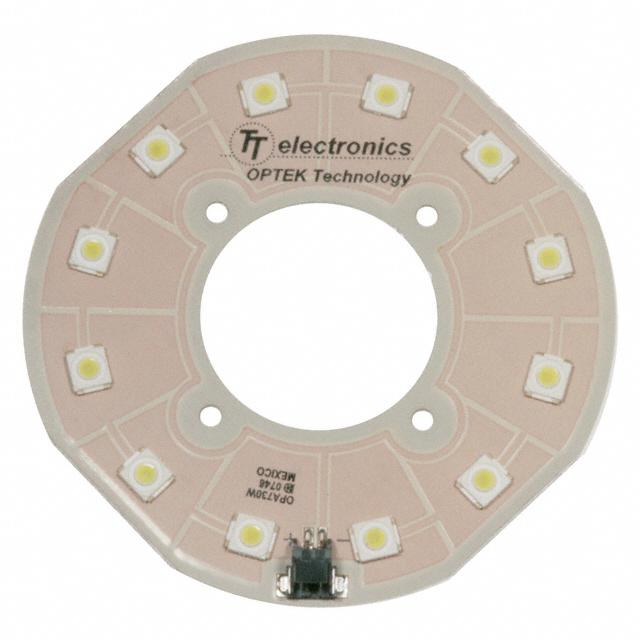

Picture of OPA730W

OPA730W

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 576 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21.6V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 85.10mm Diameter
Height : 1.52mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

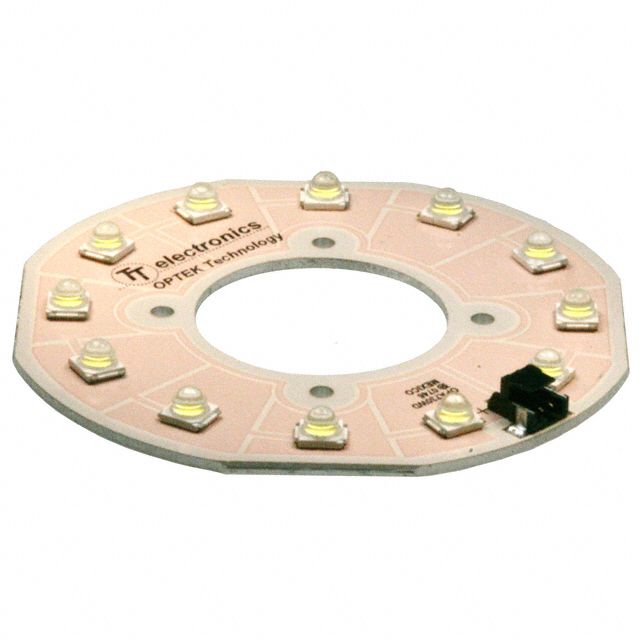

Picture of OPA730WD

OPA730WD

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 576 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21.6V
Lumens/Watt @ Current - Test : 38 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : 40°
Features : With Connector
Size / Dimension : 85.10mm Diameter
Height : 6.30mm
Light Emitting Surface (LES) : -
Lens Type : Flat

0

100 in stock

Picture of OPA730Y

OPA730Y

Optek Technology / TT Electronics

Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : OPA730
Part Status : Obsolete
Type : LED Module
Color : Yellow
CCT (K) : -
Wavelength : 587nm
Configuration : Ring (Disc)
Flux @ Current/Temperature - Test : 420 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 15V
Lumens/Watt @ Current - Test : 56 lm/W
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 85.10mm Diameter
Height : 7.40mm
Light Emitting Surface (LES) : 35.6mm Diameter
Lens Type : Flat

0

100 in stock
