TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.


Part Number

Manufacturer

Description

Unit Price

In Stock

YFF21SC1H472MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : YFF-SC
Part Status : Obsolete
Capacitance : 4700pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 400mA
DC Resistance (DCR) (Max) : 500 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 40MHz ~ 2GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -

12000 in stock

YFF31AH2A104MT0Y0N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AH
Part Status : Active
Capacitance : -
Tolerance : ±20%
Voltage - Rated : 100V
Current : 10A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 7MHz ~ 2GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.059" (1.50mm)
Thread Size : -

100 in stock

YFF31AH2A105MT0Y0N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage - Rated : -
Current : -
DC Resistance (DCR) (Max) : -
Operating Temperature : -
Insertion Loss : -
Temperature Coefficient : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height (Max) : -
Thread Size : -

1915 in stock

YFF31HC1H153MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-HC
Part Status : Active
Capacitance : 0.015µF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 10A
DC Resistance (DCR) (Max) : 1.5 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 40MHz ~ 2GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

100 in stock

YFF31HC2A103MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-HC
Part Status : Active
Capacitance : 10000pF
Tolerance : ±20%
Voltage - Rated : 100V
Current : 10A
DC Resistance (DCR) (Max) : 1.5 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 60MHz ~ 2GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

14467 in stock

YFF31HC2A104MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-HC
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±20%
Voltage - Rated : 100V
Current : 10A
DC Resistance (DCR) (Max) : 1.5 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 7MHz ~ 2GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

22433 in stock

YFF31HC2A105MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-HC
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 100V
Current : 6A
DC Resistance (DCR) (Max) : 5 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 800kHz ~ 2GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

9250 in stock

YFF31PC1C105MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-P
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 16V
Current : 2A
DC Resistance (DCR) (Max) : 40 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 700kHz ~ 1GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

6972 in stock

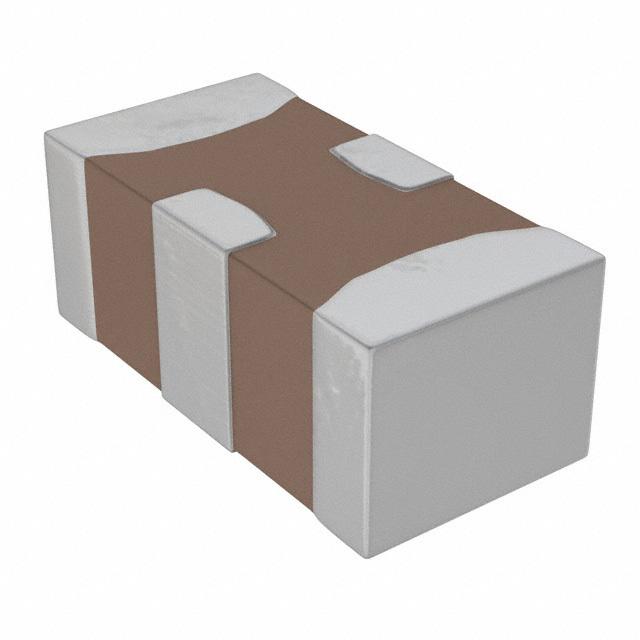

YFF31PC1C224MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-P
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±20%
Voltage - Rated : 16V
Current : 2A
DC Resistance (DCR) (Max) : 40 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 3MHz ~ 600MHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

3805 in stock

YFF31PC1C474MT000N

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-P
Part Status : Discontinued at
Capacitance : 0.47µF
Tolerance : ±20%
Voltage - Rated : 16V
Current : 2A
DC Resistance (DCR) (Max) : 40 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 40dB @ 2MHz ~ 1GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) : 0.057" (1.45mm)
Thread Size : -

3 in stock

YFF32SC1E104M

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : YFF-SC
Part Status : Obsolete
Capacitance : 0.1µF
Tolerance : -
Voltage - Rated : 25V
Current : 500mA
DC Resistance (DCR) (Max) : 300 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : -
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.049" W (3.20mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -

20000 in stock

YFF32SC1E220M

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : YFF-SC
Part Status : Obsolete
Capacitance : 22pF
Tolerance : -
Voltage - Rated : 25V
Current : 200mA
DC Resistance (DCR) (Max) : 600 mOhm
Operating Temperature : -55°C ~ 125°C
Insertion Loss : -
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), 4 PC Pad
Size / Dimension : 0.126" L x 0.049" W (3.20mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -

100 in stock
