TDK Corporation
TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.
Part Number
Manufacturer
Description
Unit Price
In Stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±20%
Voltage - Rated : 25V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 10MHz ~ 2GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
8000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±20%
Voltage - Rated : 25V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 5MHz ~ 2GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
7975 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 100pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 1GHz ~ 5GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 1000pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 400mA
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 200MHz ~ 2GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
8000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 22pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 3GHz ~ 5GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
1462 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 220pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 700MHz ~ 5GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
3000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 2200pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 400mA
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 70MHz ~ 2GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
7614 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 47pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 2GHz ~ 5GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
3500 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 470pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 1A
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 400MHz ~ 5GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
7900 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-AC
Part Status : Active
Capacitance : 4700pF
Tolerance : ±20%
Voltage - Rated : 50V
Current : 400mA
DC Resistance (DCR) (Max) : -
Operating Temperature : -55°C ~ 125°C
Insertion Loss : 30dB @ 40MHz ~ 2GHz
Temperature Coefficient : -
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
8000 in stock

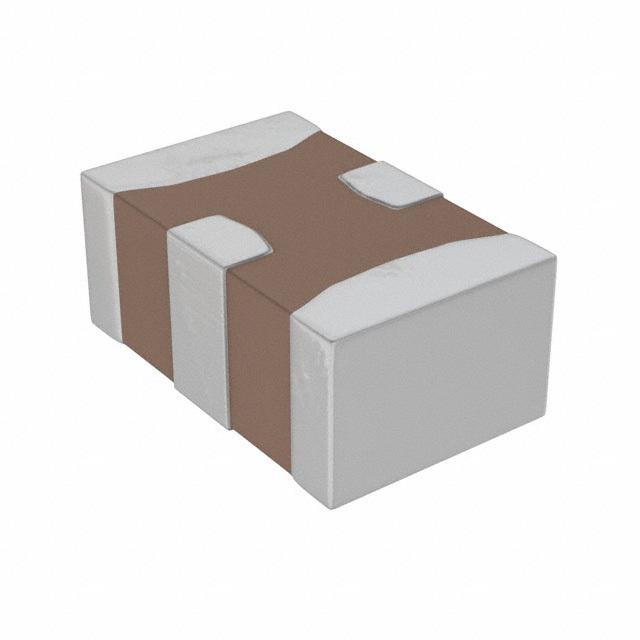

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-P
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 6.3V
Current : 4A
DC Resistance (DCR) (Max) : 5 mOhm
Operating Temperature : -55°C ~ 85°C
Insertion Loss : 40dB @ 40kHz ~ 1GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
108 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YFF-P
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 10V
Current : 4A
DC Resistance (DCR) (Max) : 12 mOhm
Operating Temperature : -55°C ~ 85°C
Insertion Loss : 40dB @ 700kHz ~ 1GHz
Temperature Coefficient : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 4 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) : 0.039" (1.00mm)
Thread Size : -
0
42415 in stock
