Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

TXETDDSANF-12.800000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 12.8MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

67 in stock

TXETDDSANF-16.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

2317 in stock

TXETDDSANF-19.200000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 19.2MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

190 in stock

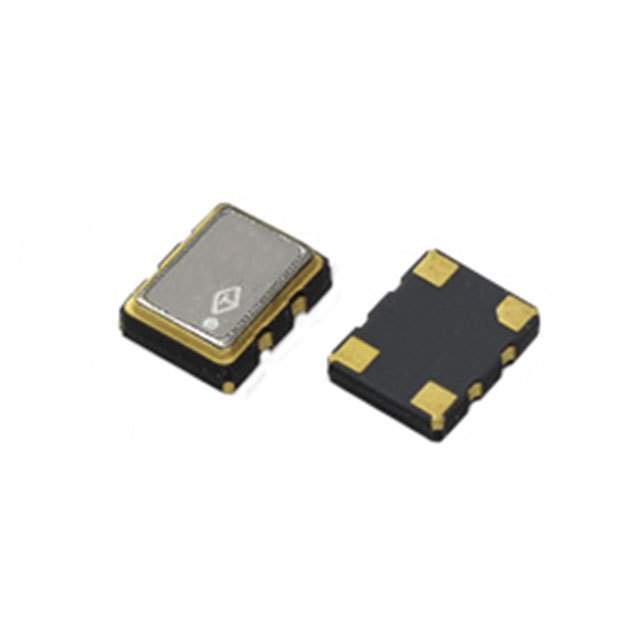

TXETDDSANF-30.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 30MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

998 in stock

TXJTPDSANF-14.745600

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 14.7456MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.5V
Frequency Stability : ±1.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

447 in stock

TXKADCSANF-19.200000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 19.2MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

110 in stock

TXKADCSANF-19.680000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 19.68MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

195 in stock

TXKADCSANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 26MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

595 in stock

TXKADCSANF-40.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 40MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

186 in stock

TXKTPCSANF-32.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 32MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 1.8V
Frequency Stability : ±1.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

1640 in stock

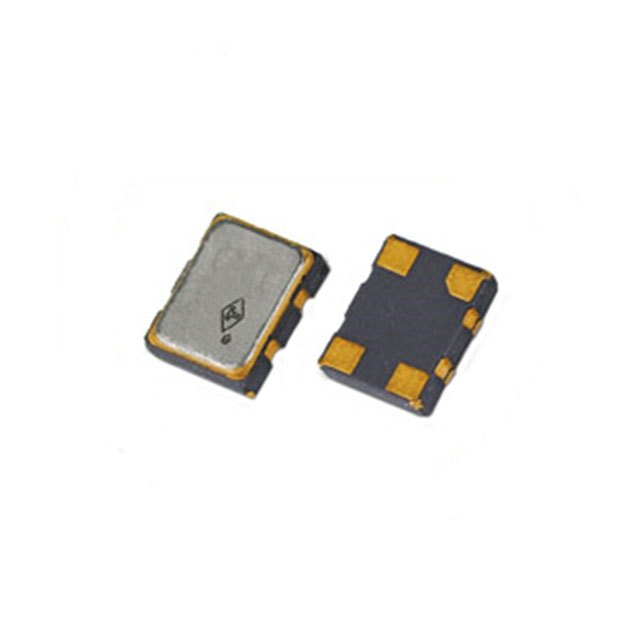

TYEAACSANF-19.200000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TY
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 19.2MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.032" (0.80mm)

179 in stock

TYEAACSANF-38.400000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TY
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 38.4MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.032" (0.80mm)

1359 in stock
