Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

TXEADLSANF-12.288000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 12.288MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

473 in stock

TXEADLSANF-40.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 40MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

189 in stock

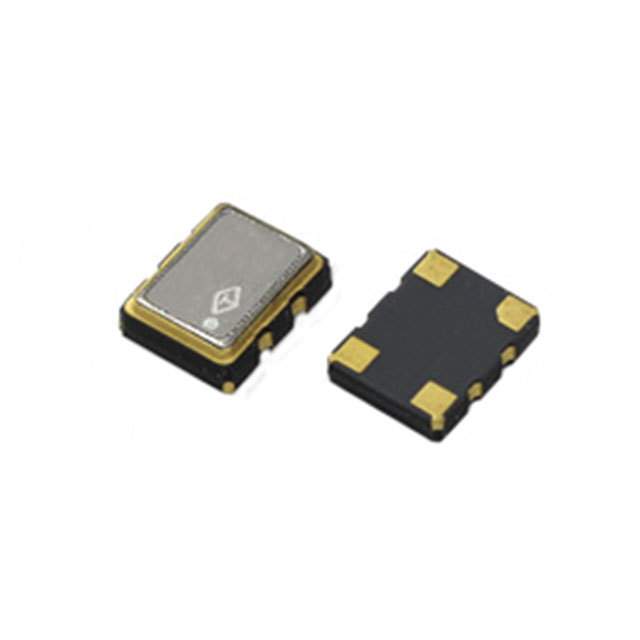

TXEAPDSANF-19.200000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 19.2MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

196 in stock

TXEAPLSANF-40.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 40MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

628 in stock

TXETACSANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

138 in stock

TXETADSANF-16.367667

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16.367667MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

144 in stock

TXETADSANF-16.369000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16.369MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

184 in stock

TXETADSANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

2255 in stock

TXETADSANF-33.600000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 33.6MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

5315 in stock

TXETALSANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

569 in stock

TXETALSANF-16.369000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16.369MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

185 in stock

TXETALSANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

3128 in stock
