Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

TTETALJANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

129 in stock

TTETALSANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 25MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 3.3V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

100 in stock

TTETKLJANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

136 in stock

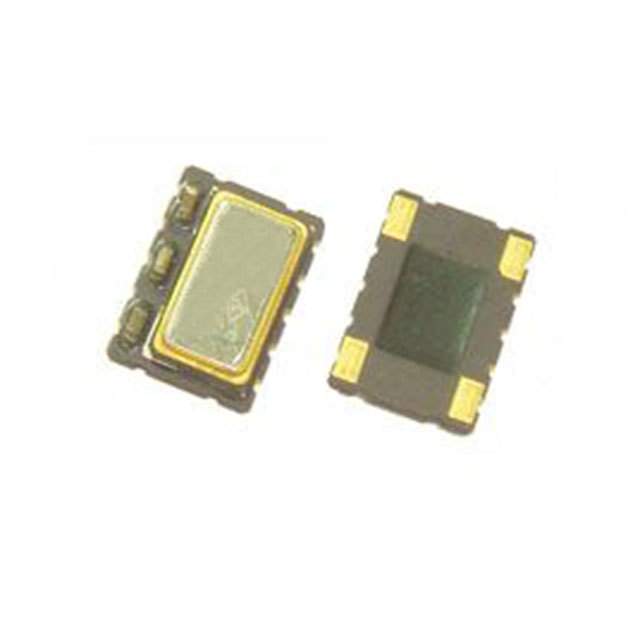

TTETKLJANF-19.200000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 19.2MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

19 in stock

TTETKLJANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 25MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

225 in stock

TTETKLJANF-30.720000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 30.72MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

100 in stock

TTETKLSANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

115 in stock

TTETKLSANF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

255 in stock

TTETTCJANF-12.800000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 12.8MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

49 in stock

TTETTCJANF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

35 in stock

TTETTCJANF-24.576000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 24.576MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

1100 in stock

TTETTCJANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TT
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 25MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead Exposed Pad
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

40 in stock
