Samsung Semiconductor
- Samsung Semiconductor's business aims to achieve excellence as a long life, energy saving and eco-friendly light source supplier in displays and lighting applications. Samsung's advanced semiconductor manufacturing expertise serves as a strong foundation to deliver state-of-the-art LED devices. Samsung offers LED based lighting solutions in the form of back light units in display panels, exterior and dashboard lighting in automotives, lighting packages and engines with and without integrated optics, and drivers.
Part Number
Manufacturer
Description
Unit Price
In Stock

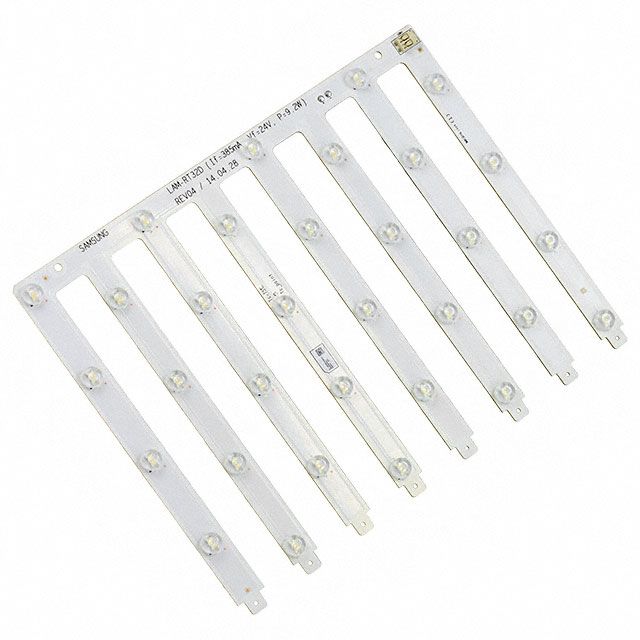

Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Box
Series : LAM-RT32B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1360 lm (Typ)
Current - Test : 385mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 24V
Lumens/Watt @ Current - Test : 148 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 145°
Features : With Connector
Size / Dimension : 273.00mm L x 216.00mm W
Height : 6.60mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
17 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Box
Series : LAM-RT32B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1240 lm (1100 lm ~ 1380 lm)
Current - Test : 385mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 24V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : 145°
Features : With Connector
Size / Dimension : 273.00mm L x 216.00mm W
Height : 5.60mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : Finger-SQ32B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1420 lm (Typ)
Current - Test : 385mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 24V
Lumens/Watt @ Current - Test : 154 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 259.00mm L x 250.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Box
Series : Finger-RT32B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1420 lm (Typ)
Current - Test : 385mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 24V
Lumens/Watt @ Current - Test : 154 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 216.00mm L x 273.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : Finger-SQ64B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1400 lm (Typ)
Current - Test : 700mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 12V
Lumens/Watt @ Current - Test : 167 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 259.00mm L x 250.00mm W
Height : 6.70mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : Finger-SQ64B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1310 lm (Typ)
Current - Test : 700mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 11.5V
Lumens/Watt @ Current - Test : 163 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 230.00mm L x 273.00mm W
Height : 6.70mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : Finger-RT64B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1400 lm (Typ)
Current - Test : 700mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 12V
Lumens/Watt @ Current - Test : 167 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 230.00mm L x 273.00mm W
Height : 6.70mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : Finger-RT64B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1310 lm (Typ)
Current - Test : 700mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 11.5V
Lumens/Watt @ Current - Test : 163 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 230.00mm L x 273.00mm W
Height : 6.70mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : -
Series : LT-Q562A
Part Status : Active
Type : LED Engine
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2000 lm (Typ)
Current - Test : 450mA
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 21.9V
Lumens/Watt @ Current - Test : 203 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 560.00mm L x 18.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
1508 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LT-H282A
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1390 lm (Typ)
Current - Test : 300mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 34.3V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : 360mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 280.00mm L x 24.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Box
Series : LAM-SQ30B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1480 lm (Typ)
Current - Test : 700mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 15V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 145°
Features : With Connector
Size / Dimension : 259.00mm L x 250.00mm W
Height : 6.70mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LAM-SQ30B
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1400 lm (Typ)
Current - Test : 700mA
Temperature - Test : 35°C
Voltage - Forward (Vf) (Typ) : 15.3V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 145°
Features : With Connector
Size / Dimension : 259.00mm L x 250.00mm W
Height : 6.70mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
