Qualtek Electronics Corp.
Part Number
Manufacturer
Description
Unit Price
In Stock

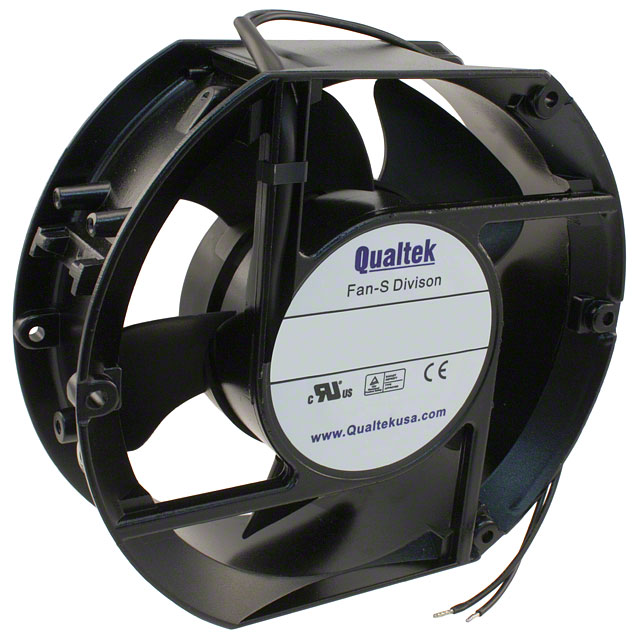

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FKA1-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 189.0 CFM (5.29m鲁/min)
Static Pressure : 0.408 in H2O (101.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.7 dB(A)
Power (Watts) : 50.6W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
83 in stock

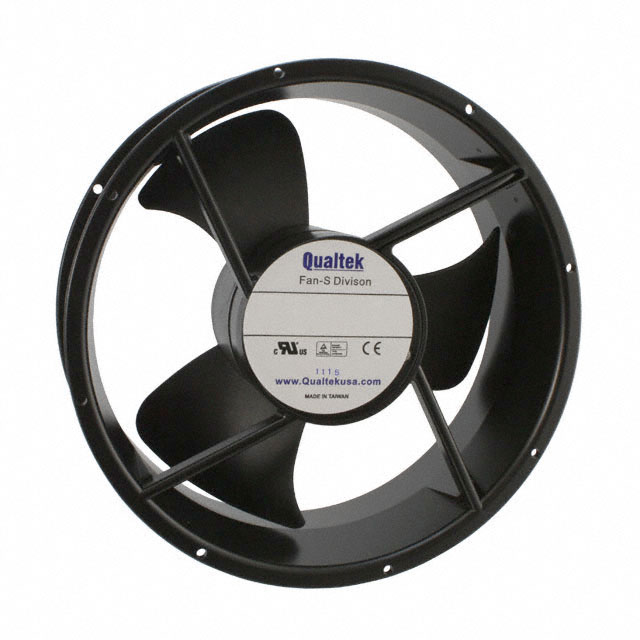

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FKA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 630.0 CFM (17.64m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : 67.8W
RPM : 2000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 4.4 lbs (2kg)
0
17 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FKA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 630.0 CFM (17.64m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : 67.8W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 4.4 lbs (2kg)
0
20 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FKA2-25489
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : 62.8W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 4.4 lbs (2kg)
0
97 in stock

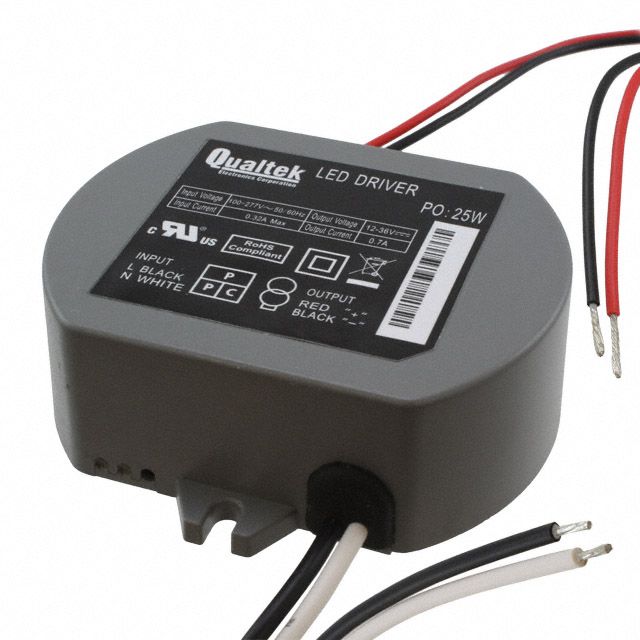

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 24 ~ 72 V
Current - Output (Max) : 350mA
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : -
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025 D
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 24 ~ 72 V
Current - Output (Max) : 350mA
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : Analog
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025 D
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 19 ~ 56 V
Current - Output (Max) : 450mA
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : Analog
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025 D
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 13 ~ 40 V
Current - Output (Max) : 620mA
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : Analog
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 83%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 12 ~ 36 V
Current - Output (Max) : 700mA
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : -
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 83%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025 D
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 12 ~ 36 V
Current - Output (Max) : 700mA
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : Analog
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 83%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025 D
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 8 ~ 24 V
Current - Output (Max) : 1.05A
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : Analog
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 82%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : PLC-025 D
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 6 ~ 18 V
Current - Output (Max) : 1.4A
Power (Watts) : 25W
Voltage - Isolation : 2kV
Dimming : Analog
Features : OTP, OVP, SCP
Ratings : IP65
Operating Temperature : -25°C ~ 50°C
Efficiency : 81%
Termination Style : Wire Leads
Size / Dimension : 3.15" L x 3.07" W x 1.06" H (80.0mm x 78.0mm x 27.0mm)
0
100 in stock
