Qualtek Electronics Corp.
Part Number
Manufacturer
Description
Unit Price
In Stock

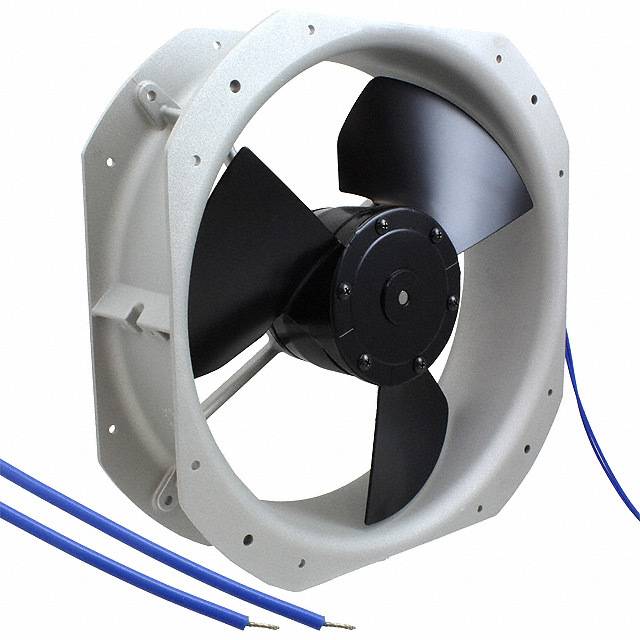

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-28080
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 80.00mm
Air Flow : 1150.0 CFM (32.20m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 73.0 dB(A)
Power (Watts) : 138W
RPM : 2900 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.7 lbs (3kg)
0
100 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-28080
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 80.00mm
Air Flow : 1150.0 CFM (32.20m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 73.0 dB(A)
Power (Watts) : 138W
RPM : 2900 RPM
Termination : Terminal Block
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.7 lbs (3kg)
0
48 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-28080
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 80.00mm
Air Flow : 1150.0 CFM (32.20m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 73.0 dB(A)
Power (Watts) : 138W
RPM : 2900 RPM
Termination : Terminal Block
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.7 lbs (3kg)
0
18 in stock

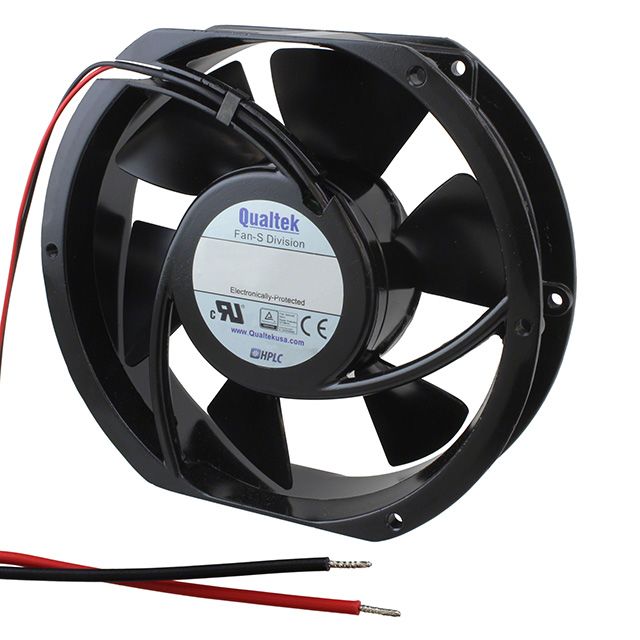

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 310.0 CFM (8.68m鲁/min)
Static Pressure : 1.122 in H2O (279.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB(A)
Power (Watts) : 39.96W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)
0
12 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 310.0 CFM (8.68m鲁/min)
Static Pressure : 1.122 in H2O (279.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB(A)
Power (Watts) : 33.10W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)
0
11 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 245.0 CFM (6.86m鲁/min)
Static Pressure : 0.732 in H2O (182.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 18.70W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)
0
5 in stock

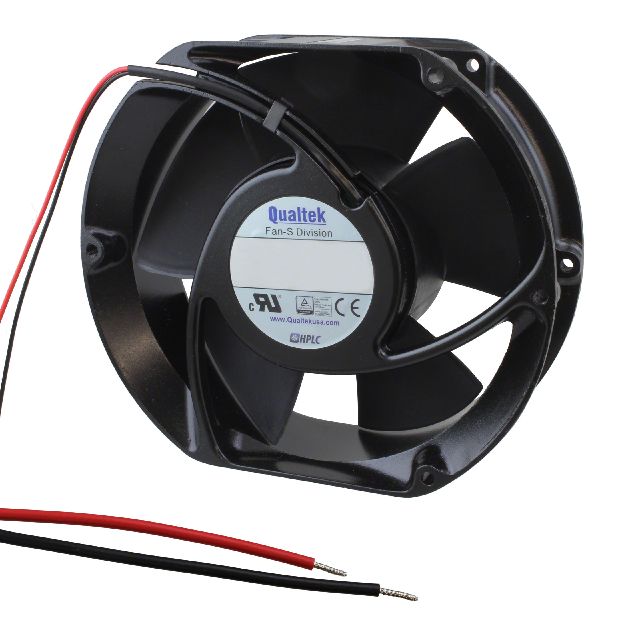

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17251
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 325.0 CFM (9.10m鲁/min)
Static Pressure : 1.134 in H2O (282.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB(A)
Power (Watts) : 44.80W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
7 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17251
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 255.0 CFM (7.14m鲁/min)
Static Pressure : 0.736 in H2O (183.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 22.60W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
29 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17251
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 255.0 CFM (7.14m鲁/min)
Static Pressure : 0.736 in H2O (183.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 21.40W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
17 in stock
Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDD1-17251
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 325.0 CFM (9.10m鲁/min)
Static Pressure : 1.134 in H2O (282.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB(A)
Power (Watts) : 37.90W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
14 in stock

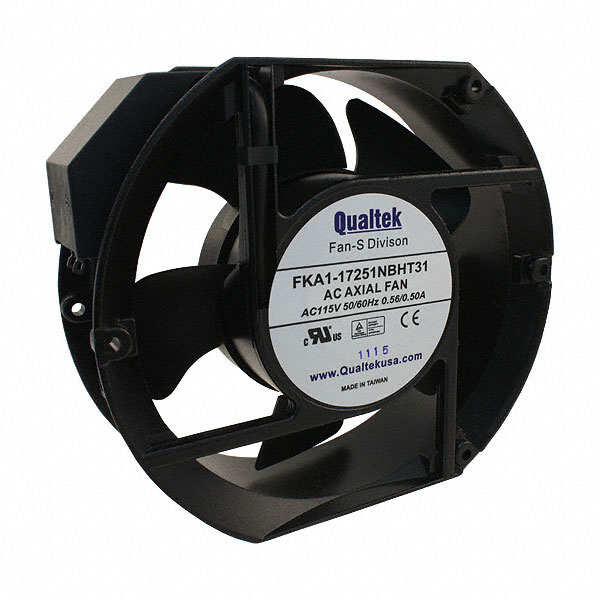

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FKA1-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 189.0 CFM (5.29m鲁/min)
Static Pressure : 0.408 in H2O (101.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.7 dB(A)
Power (Watts) : 51.8W
RPM : 2700 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
55 in stock

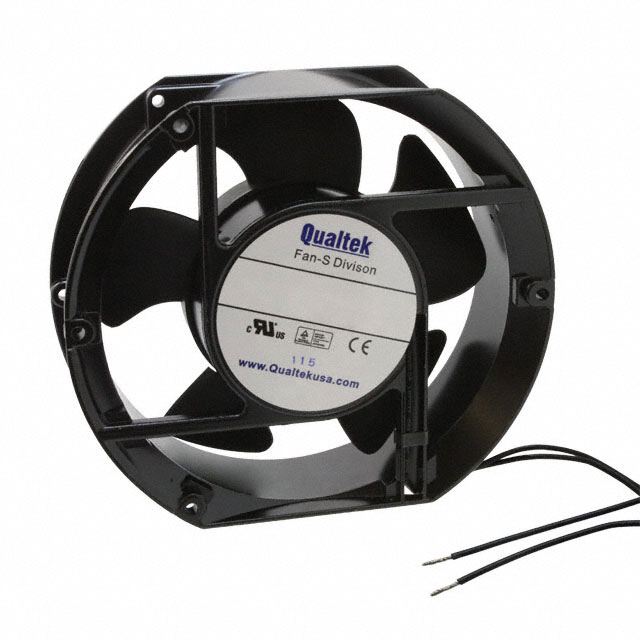

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : FKA1-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 189.0 CFM (5.29m鲁/min)
Static Pressure : 0.408 in H2O (101.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.7 dB(A)
Power (Watts) : 51.8W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2.3 lbs (1kg)
0
84 in stock
